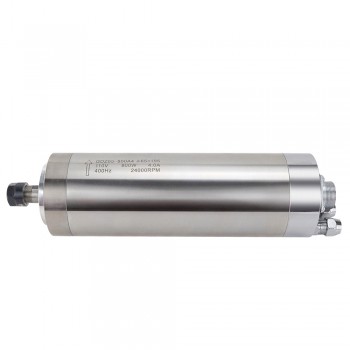

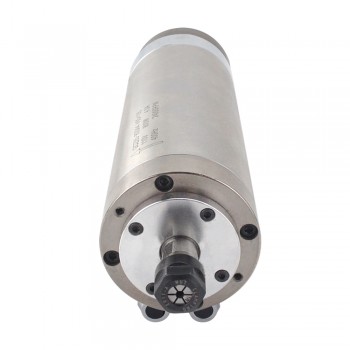

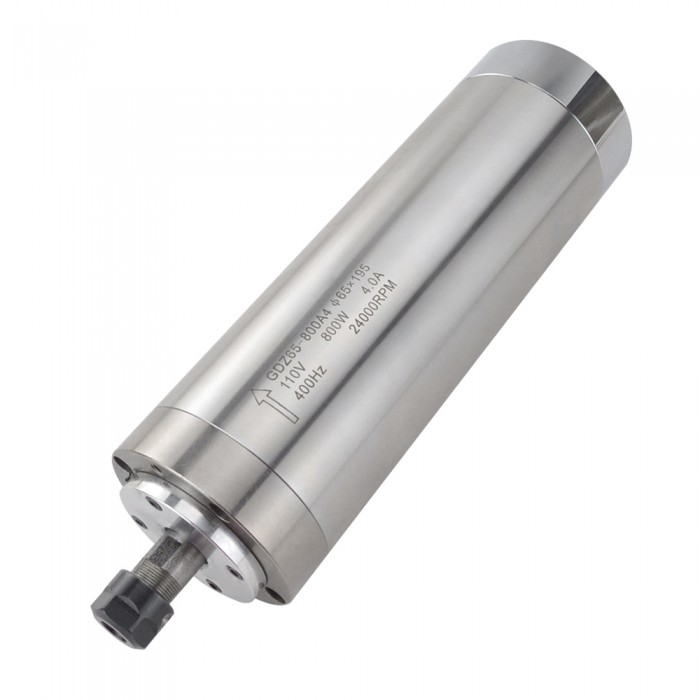

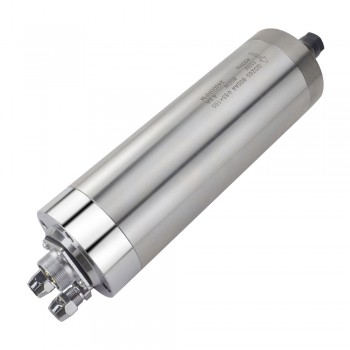

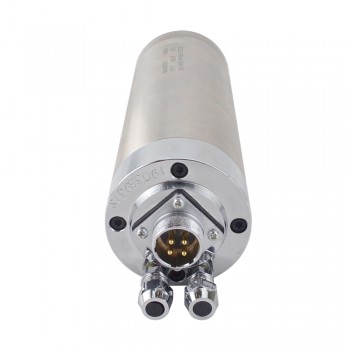

800W CNC Spindle Motor Water Cooled 110V 4A 24000RPM 400Hz ER11 Collet CNC Spindle Motor
This 800W water‑cooled spindle runs at 24,000 rpm on 110 VAC, features a 65 mm body, ER‑11 collet, and <0.005 mm runout.
Specification
Manufacturer Part Number: GDZ65-800A4
Material: Stainless steel
Size: Ø65x195(Middle body diameter: 65 mm, Length:195 mm)
Power: 800 W
Voltage: 110 VAC
Current: 4 A
Frequency: 0 ~ 400 Hz
Speed: 0 ~ 24000 RPM
Cooling: Water cooled
Runout off: Less than 0.005 mm
Bearing Lubrication: Grease
Collet size: ER11 Collet(3.175mm)
Bearings: 2x7002C(P4 DT), 2x7000C(P4 DT)
Weight: 3kg
| Spindle Motor Specification | |
|---|---|
| Speed(RPM) | 24000 |
| Frequency(Hz) | 400 |
| Bearing Lubrication | Grease |
| Bearings | 2x7002C(P4 DT), 2x7000C(P4 DT) |
| Body Length(mm) | 195 |
| Collet Size | ER11 |
| Cooling | Water cooled |
| Current(A) | 4 |
| Diameter(mm) | 65 |
| Material | Stainless steel |
| Shape | Round |
| Voltage(VAC) | 110 |
| Weight(Kg) | 3 |
| Power(Kw) | 0.8 |
