1 Axis Closed loop Stepper Kit 4.25 Nm(601.97 oz.in) Nema 24 Closed loop Stepper Motor & Driver

1 Axis Closed loop Stepper Kit 4.25 Nm(601.97 oz.in) Nema 24 Closed loop Stepper Motor & Driver
NO.:1-CL57T-24HS40
Post a review
Special Offer in June 2023:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 10th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$118.69
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $112.76 5%
5 $110.38 7%
10 $106.82 10%
50 $100.89 15%
Add To Cart

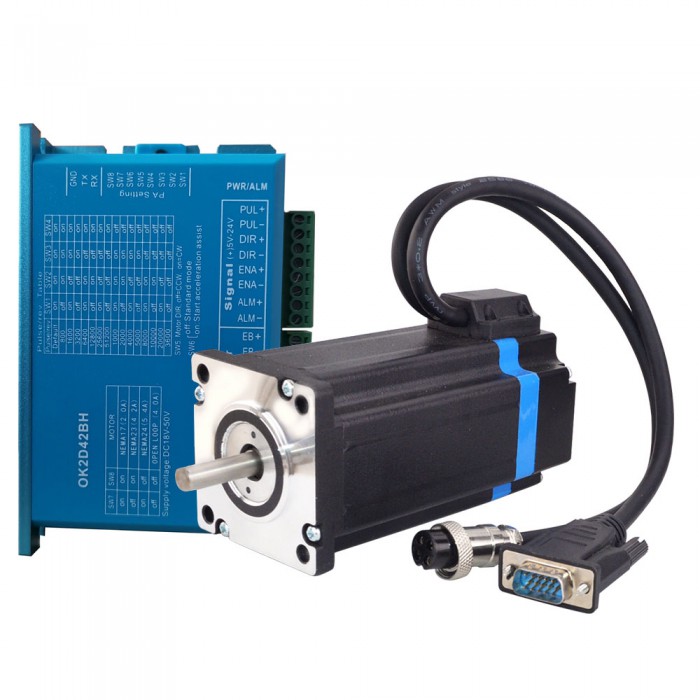

This CNC kit included:

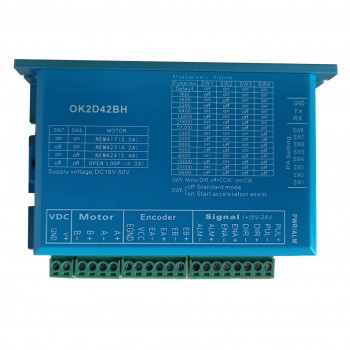

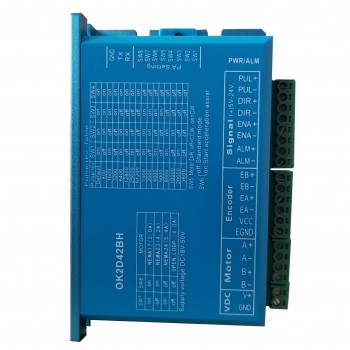

  • 1 x Closed Loop Stepper Driver 0-8.0A 24-48VDC for Nema 17, 23, 24 Stepper Motor

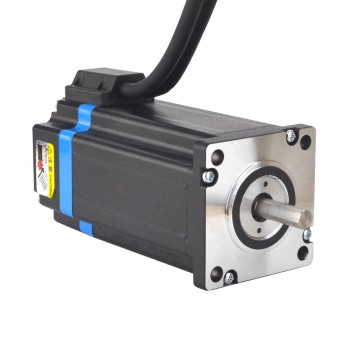

  • 1 x Nema 24 Closed Loop Stepper Motor 4.25Nm/601.97oz.in Encoder 1000CPR

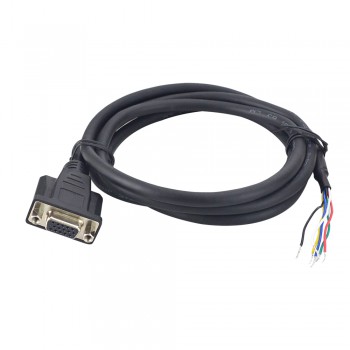

  • 1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver

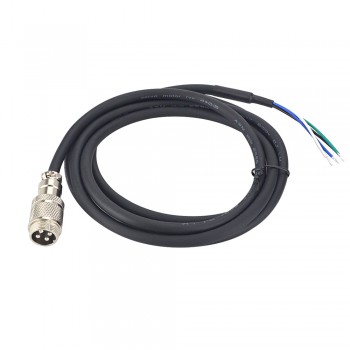

  • 1 x RV-4 AWG20 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug for Nema 23 and 24 Closed Loop Stepper Motors(Just for aviation-plug model motor)

Motor Specification

  • Manufacturer Part Number: 24HS40-5804D-E1000
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Frame Size: 60 x 60mm
  • Holding Torque: 4.25 N.m(601.97 oz.in)
  • Rated Current/phase: 5.8 A
  • Shaft Diameter: Φ8 mm
  • Full D-cut Shaft Length: 25 mm
  • Phase Resistance: 0.82 ohm
  • Inductance: 2.7 mH ± 20%(1KHz)
  • Number of Leads: 4
  • Lead Length: 300 mm
  • Driving Voltage : 5V
  • Output current : 55mA
  • Resolution : 1000ppr
  • Output Signal : 2 Channels
  • Bore Diameter : Φ8mm
  • Output Frequency : ≤1MHz
  • Running Speed : ≤5000rpm
  • IP Protection : IP20

Connection

A+
A-
B+
B-
White
Green
Blue
Black

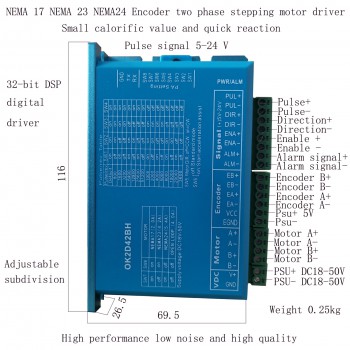

Driver Specification

  • Input voltage 24-48VDC, output peak current 0-8.0A
  • Closed-loop, eliminates loss of synchronization
  • No Tuning and always stable
  • Do not need a high torque margin
  • Broader operating speed range
  • Reduced motor heating and more efficient
  • Smooth motion and super-low motor noise
  • Protections for over-voltage, over-current and position following error

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Closed loop Stepper Kit 3.5 Nm(495.74 oz.in) Nema 24 Closed loop Stepper Motor & Driver
Next: 1 Axis Closed loop Stepper Kit 5.8 Nm(821.51 oz.in) Nema 34 Closed loop Stepper Motor & Driver
CNC Kit Specification
No of Axis Single Axis
Open-loop/Closed-loop Closed-loop
Motor Specification
Holding Torque (Ncm) 425
Holding Torque (oz.in) 601.97
Inductance(mH) 2.7
Lead Length(mm) 300
Motor Nema Size Nema 24
No. of Lead 4
Phase Resistance(ohm) 0.82
Rated Current (A) 5.8
Shaft Diameter(mm) 8
Shaft Length(mm) 25
Step Angle(°) 1.8
Encoder Specification
IP Protection IP20
Output Current(mA) 55
Output Frequency ≤1
Resolution(CPR) 1000
Running Speed(rpm) ≤5000
Output Signal Channels 2 Channels
