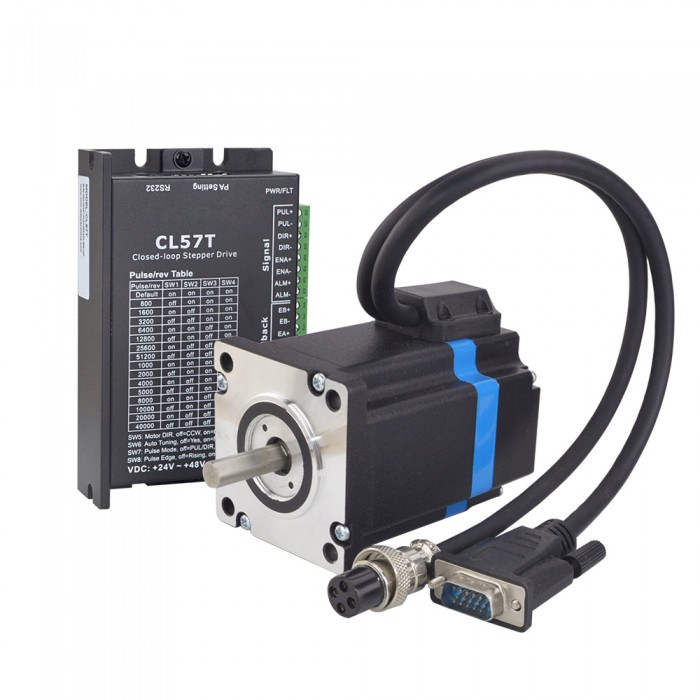

1 Axis Closed loop Stepper Motor Kit 2 Nm(283.28 oz.in) 1.8 Deg Nema 24 Closed loop Stepper Motor & Driver

1 Axis Closed loop Stepper Motor Kit 2 Nm(283.28 oz.in) 1.8 Deg Nema 24 Closed loop Stepper Motor & Driver
NO.:1-OK2D42BH-24HS26
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$117.50
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $111.63 5%
5 $109.28 7%
10 $105.75 10%
50 $102.23 13%
Add To Cart

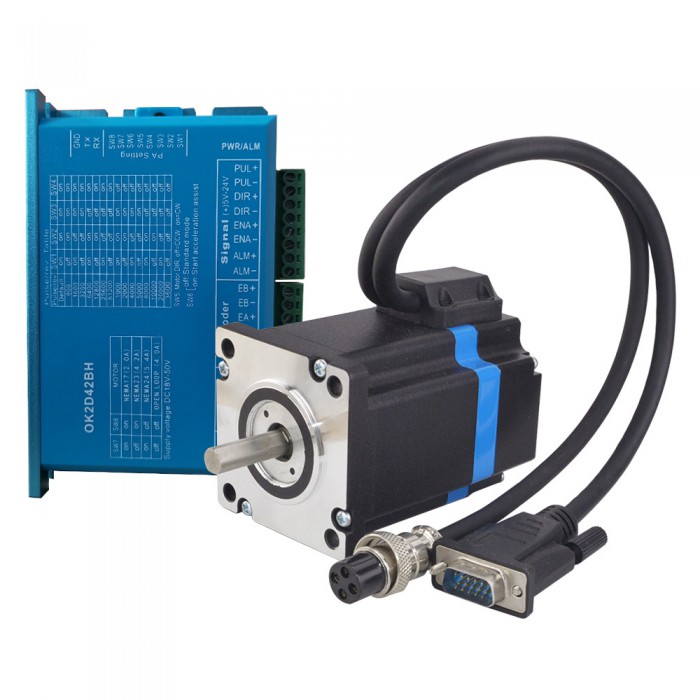

This CNC kit included:

  • 1 x Closed Loop Stepper Driver 0~5.6A 18~70VDC for Nema 17, Nema 23, Nema 24 Stepper Motor

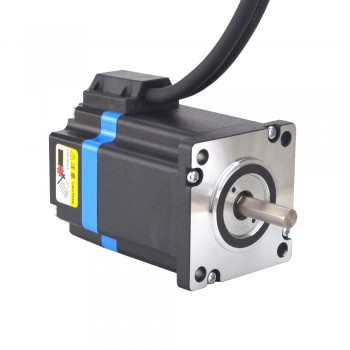

  • 1 x Nema 24 Closed Loop Stepper Motor 2Nm/283.28oz.in Encoder 1000CPR

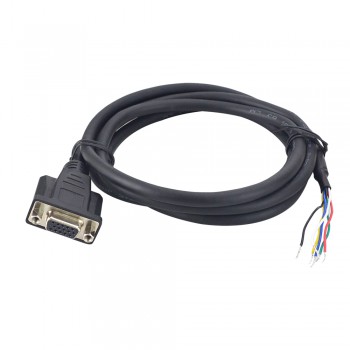

  • 1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver

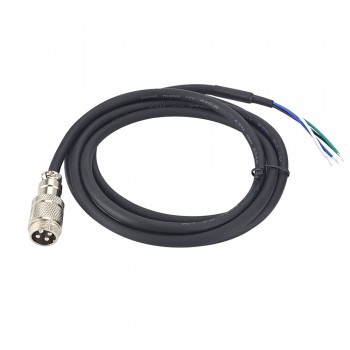

  • 1 x RV-4 AWG20 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug for Nema 23 and 24 Closed Loop Stepper Motors(Just for aviation-plug model motor);

Motor Specification

  • Manufacturer Part Number: 24HS26-5804D-E1000
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Frame Size: 60 x 60 mm
  • Holding Torque: 2 N.m(283.28 oz.in)
  • Rated Current/phase: 5.8 A
  • Shaft Diameter: Φ8 mm
  • Full D-cut Shaft Length: 25 mm
  • Phase Resistance: 0.52 ohm
  • Inductance: 1.2 mH ± 20%(1KHz)
  • Number of Leads: 4
  • Lead Length: 300 mm
  • Driving Voltage : 5V
  • Output current : 55mA
  • Resolution : 1000ppr
  • Output Signal : 2 Channels
  • Bore Diameter : Φ8mm
  • Output Frequency : ≤1MHz
  • Running Speed : ≤5000rpm
  • IP Protection : IP20

Connection

A+
A-
B+
B-
White
Green
Blue
Black

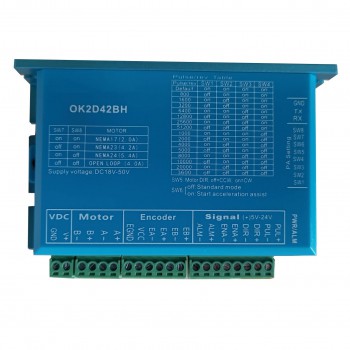

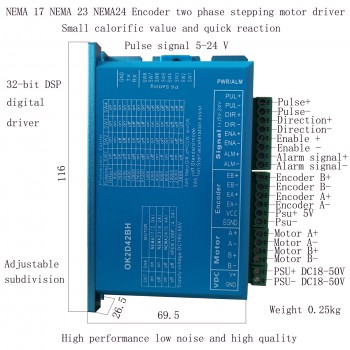

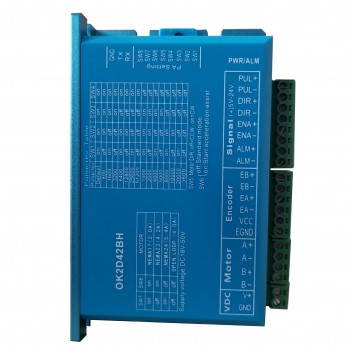

Driver Specification:

Model:OK2D42BH
Output Peak Current: 0~5.6A
Input Voltage: +18~70VDC (Typical 36VDC)
Logic Signal Current: 7~16mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Microstep(Steps/rev.):400~51200ppr
Encoder current:50mA
Isolation Resistance: 500MΩ
Weight:580g
Adopting new 32-bit motor control dedicated dual-core DSP chip;
Adopting advanced vector current and speed and position closed-loop control algorithms;
The static current and dynamic current ratio can be automatically set;
The motor comes with a 1000-line high-precision encoder;
Optocoupler isolated differential signal input;
The impulse response frequency can reach up to 300KHZ;
Subdivided into 16 settings (200~51200) to meet the requirements of most customers;
It has several protection functions such as overcurrent, overvoltage, overspeed, overheating, and excessive tracking error.
