Meanwell MDR-40-24 40W 24VDC 1.7A 115/230VAC DIN Rail Power Supply

Meanwell MDR-40-24 40W 24VDC 1.7A 115/230VAC DIN Rail Power Supply
NO.:MDR-40-24
Review: Post a review
Latest price:$21.55
Buy It Now:$14.37
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $14.07 2%
10 $13.77 4%
50 $13.47 6%
100 $13.17 8%
Add To Cart

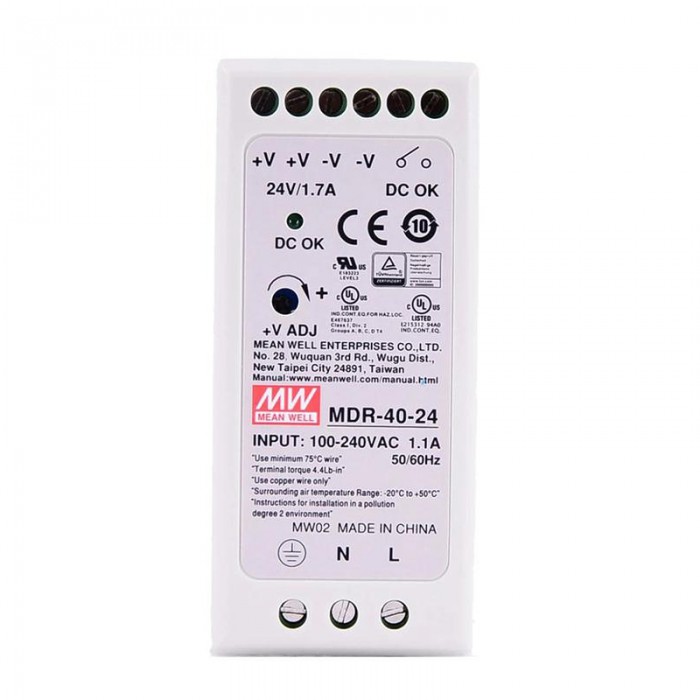

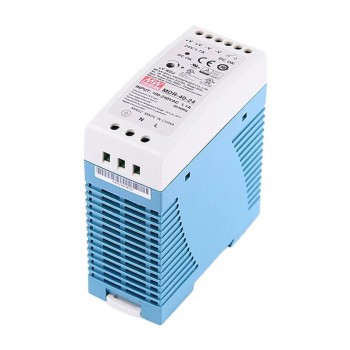

MDR-40-24 MEAN WELL 40W 24VDC 1.7A 115/230VAC DIN Rail Power Supply



Features

Brand MEANWELL

24V DC 1.7A output

AC input voltage range: 85 ~ 264VAC

Rated power: 40.8W

Universal AC input/Full range

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

Can be installed on DIN rail TS-35/7.5 or 15

Class I, Div 2 Hazardous Locations T4

LED indicator for power on

DC OK relay contact

No load power consumption<0.75W

100% full load burn-in test

3 years warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Resources

Full Datasheet: MDR-40-24.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: MeanwWell MDR-40-12 40W 12VDC 3.33A 115/230VAC DIN Rail Power Supply
Next: Meanwell MDR-60-12 60W 12VDC 5A 115/230VAC DIN Rail Power Supply
Power Supply Specification
Max. Output Current(A) 1.7
Power(W) 40.8
Brand MEANWELL
Output Voltage(VDC) 24
Input Voltage(VAC/VDC) 85 - 264 / 120 - 370
PFC Function No
Dim.(LxWxH)(mm/in.) 40 x 90 x 100 /1.57 x 3.54 x 3.94
Input Frequency(Hz) 47 - 63
Efficiency(%) 88%
