Meanwell NDR-480-24 Switching Power Supply 480W 24VDC 20A 115/230VAC DIN Rail Power Supply

Meanwell NDR-480-24 Switching Power Supply 480W 24VDC 20A 115/230VAC DIN Rail Power Supply
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$100.11
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $95.10 5%
5 $93.10 7%
10 $90.10 10%
50 $87.10 13%
Add To Cart

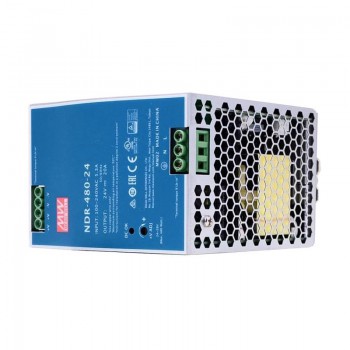

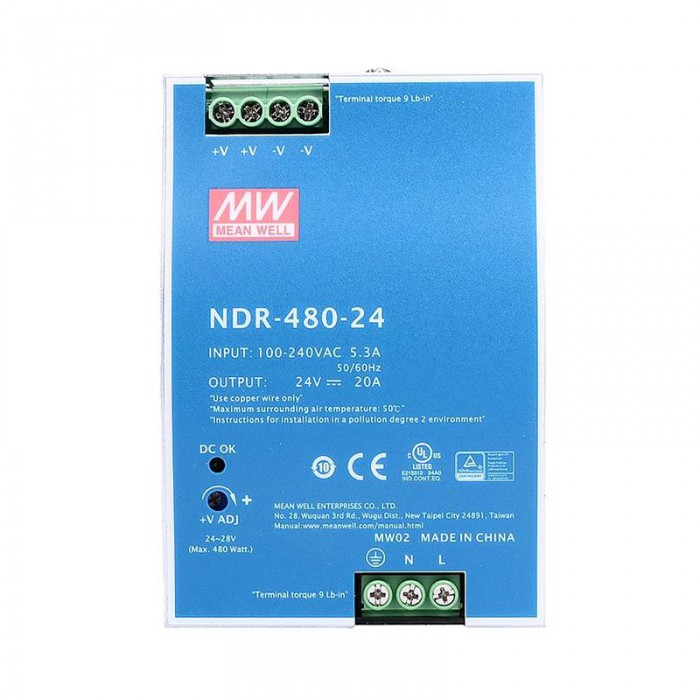

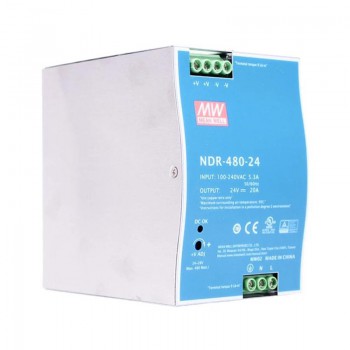

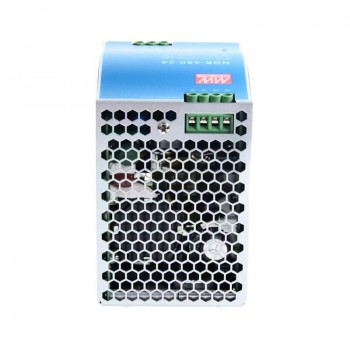

NDR-480-24 MEAN WELL 480W 24VDC 20A 115/230VAC DIN Rail Power Supply


MEAN WELL NDR-480 is one economical slim 480W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 85.5mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.

NDR-480 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 92.5%, the entire series can operate at the ambient temperature between -20℃ and 70℃ under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and releyant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make NDR-480 a very competitive power supply solution for industrial applications.




24V DC 20A output

AC input voltage range: 90 ~ 264VAC

Rated power: 480W

Universal AC input/Full range

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

Can be installed on DIN rail TS-35/7.5 or 15

UL 508 (industrial control equipment) approved

BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level

100% full load burn-in test

3 years warranty



Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Full Datasheet: NDR-480-24.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Mean Well NDR-240-24 Switching Power Supply 240W 24VDC 10A 115/230VAC DIN Rail Power Supply
Next: Mean Well SDR-120-24 CNC Power Supply 120W 24VDC 5A 115/230VAC with PFC Function DIN Rail Power Supply
Power Supply Specification
Max. Output Current(A) 20
Power(W) 480
Output Voltage(VDC) 24
Input Voltage(VAC/VDC) 90 - 264 / 127 - 370
PFC Function No
Dim.(LxWxH)(mm/in.) 85.5 x 125.2 x 128.5 / 3.37 x 4.93 x 5.06
Input Frequency(Hz) 47 - 63
Efficiency(%) 92.5%
Physical Specification
