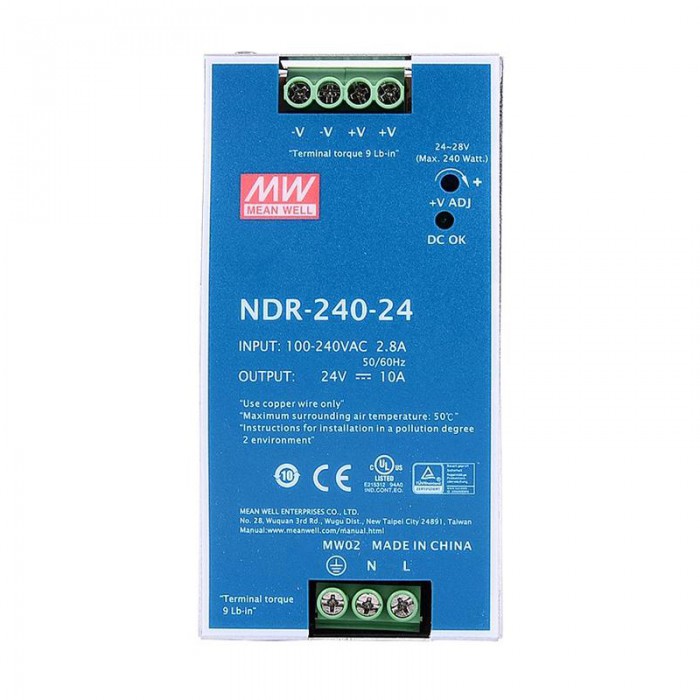

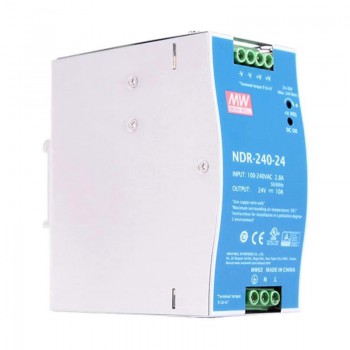

NDR-240-24 MEAN WELL 240W 24VDC 10A 115/230VAC DIN Rail Power Supply
MEAN WELL NDR-240 is one economical slim 240W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails.The body is designed 63mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.

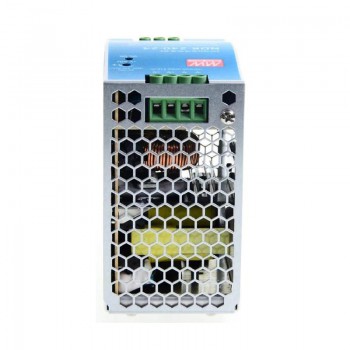

NDR-240 is designed with metal housing that enhances the unit's power dissipation.With working efficiency up to 90%, the entire series can operate at the ambient temperature between -20℃ and 70℃ under air convection. It is equipped with constant current mode for over-load protection,fitting various inductive or capacitive applications.The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make NDR-240 a very competitive power supply suitable for industrial applications.
Features
Brand MEANWELL
24V DC 10A output
AC input voltage range: 90 ~ 264VAC
Rated power: 240W
Universal AC input/Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

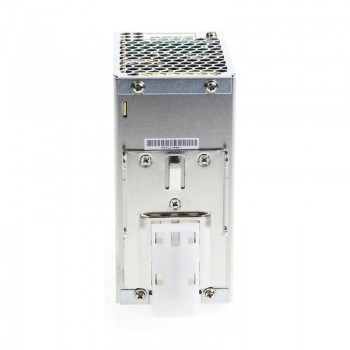

Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
100% full load burn-in test
3 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
Resources
Full Datasheet: NDR-240-24.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Power Supply Specification | |
---|---|
Max. Output Current(A) | 10 |
Power(W) | 240 |
Brand | MEANWELL |
Output Voltage(VDC) | 24 |
Input Voltage(VAC/VDC) | 90 - 264 / 127 - 370 |
PFC Function | No |
Dim.(LxWxH)(mm/in.) | 63 x 125.2 x 113.5 / 2.48 x 4.93 x 4.47 |
Input Frequency(Hz) | 47 - 63 |
Efficiency(%) | 88.5% |
Physical Specification | |
Product Type | POWER SUPPLY |
