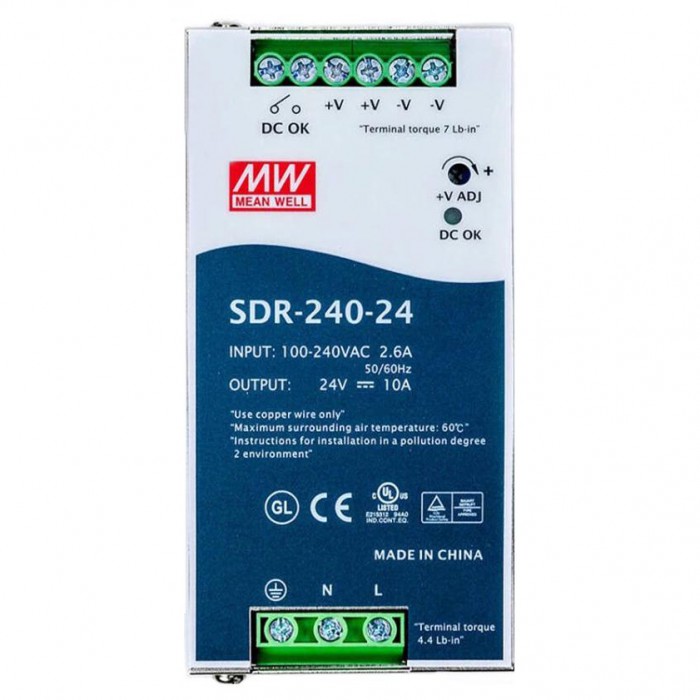

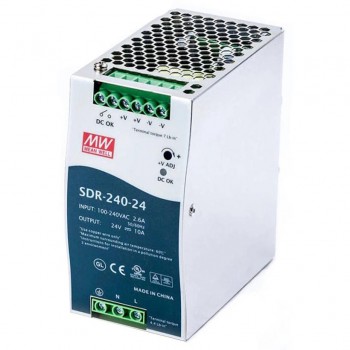

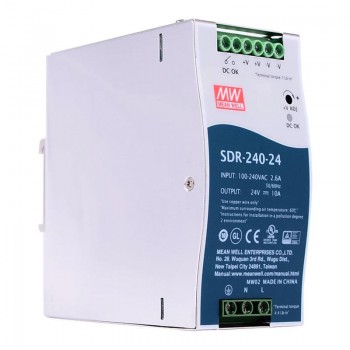

Mean Well SDR-240-24 240W 24VDC 10A 115/230VAC with PFC Function DIN Rail Power Supply

Mean Well SDR-240-24 240W 24VDC 10A 115/230VAC with PFC Function DIN Rail Power Supply
NO.:SDR-240-24
Review: Post a review
Latest price:$101.95
Buy It Now:$67.97
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $66.55 2%
10 $65.13 4%
50 $63.71 6%
100 $62.29 8%
Add To Cart

SDR-240-24 MEAN WELL 240W 24VDC 10A 115/230VAC with PFC Function DIN Rail Power Supply



Features

Brand MEANWELL

24V DC 10A output

AC input voltage range: 88 ~ 264VAC

Rated power: 240W

High efficiency 94% and low power dissipation

150% peak load capability

Built-in active PFC function, PF>0.93

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

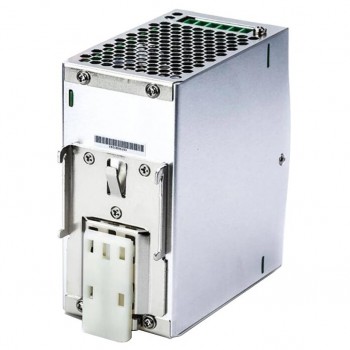

Can be installed on DIN rail TS-35/7.5 or 15

UL 508 (industrial control equipment) approved

BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level

Built-in DC OK relay contact

100% full load burn-in test

3 years warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Resources

Full Datasheet: SDR-240-24.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Mean Well SDR-120-24 120W 24VDC 5A 115/230VAC with PFC Function DIN Rail Power Supply
Next: Meanwell SDR-75-12 75.6W 12VDC 6.3A 115/230VAC DIN Rail Power Supply
Power Supply Specification
Max. Output Current(A) 10
Power(W) 240
Brand MEANWELL
Output Voltage(VDC) 24
Input Voltage(VAC/VDC) 88 - 264 / 124 - 370
PFC Function Yes
Dim.(LxWxH)(mm/in.) 63 x 125.2 x 113.5 / 2.48 x 4.93 x 4.47
Input Frequency(Hz) 47 - 63
Efficiency(%) 94%
Physical Specification
Product Type POWER SUPPLY
