Nema 17 External Stepper Motor Linear Actuator 1.8° 2.6A 2.33V 4 Wires Lead Screw 250mm

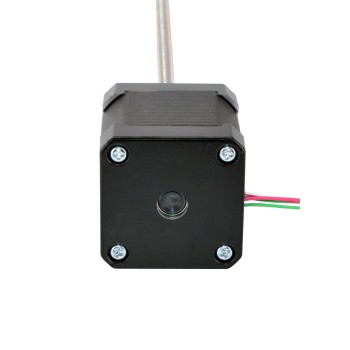

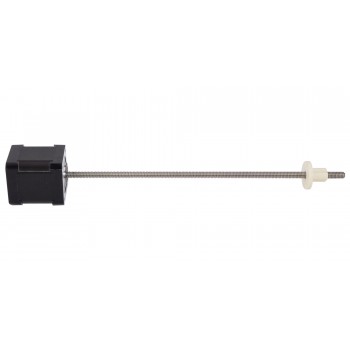

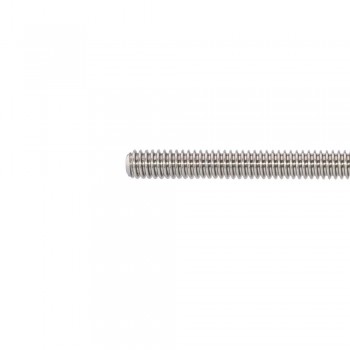

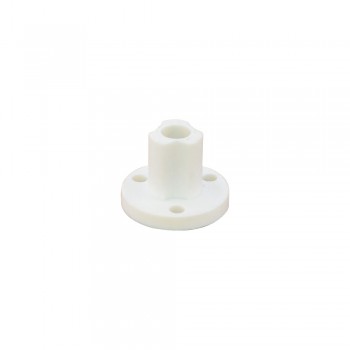

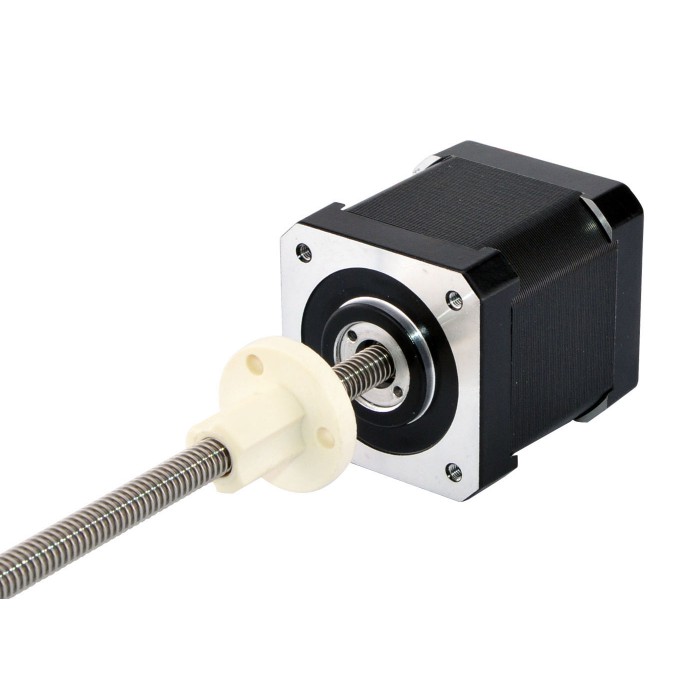

The motor part is 48mm body 1.8 degree 2.6A Nema 17 stepper motor, and it has integrated with a 6.35mm (0.25") diameter 250mm (9.8425") length lead screw and a POM screw nut, the linear travel is 0.794mm (0.03125") per revolution.
Electrical Specification
Manufacturer Part Number: 17LS19-2604P-250E
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 560N (300pps)
Rated Current/phase: 2.6A
Phase Resistance: 0.9ohms
Voltage: 2.33V
Inductance: 1.33mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 250mm(9.8425")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.00396875mm(0.00015625" )
Lead Travel/Revolution: 0.794mm(0.03125")
Number of Leads: 4
Lead Length: 300mm
Weight : 352g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
Full Datasheet: 17LS19-2604P-250E.pdf
