Nema 17 External 48mm Stack 2.6A Lead 1.27mm/0.05" Length 250mm

NO.:SKU:17LS19-26049-250E
Review: Post a review
Latest price:$86.72
Buy It Now:$66.71
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$64.62 $62.53 $60.46 $60.16
Add To Cart

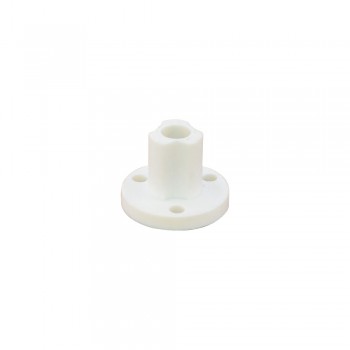

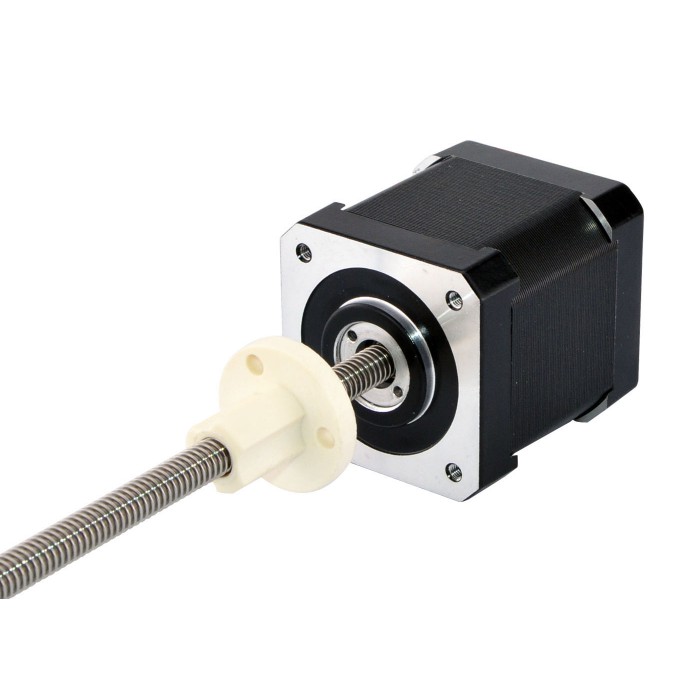

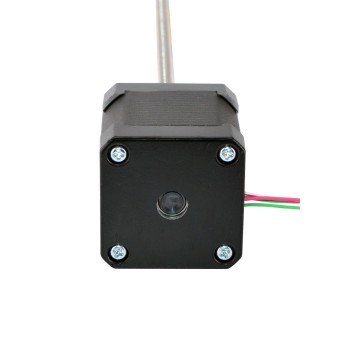

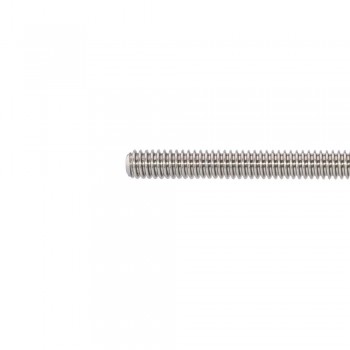

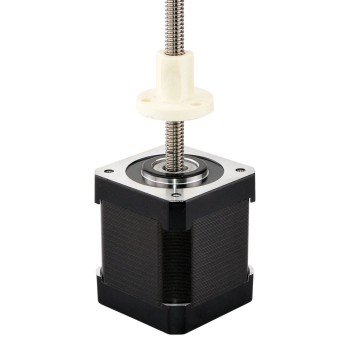

This model is almost exactly same as Haydon Kerk 43000 series size 17 double stack external stepper motor linear actuator. The motor part is 48mm body 1.8 degree 2.6A Nema 17 stepper motor, and it has integrated with a 6.35mm (0.25") diameter 250mm (9.8425") length lead screw and a POM screw nut, the linear travel is 1.27mm (0.05") per revolution.

Electrical Specification

  • Manufacturer Part Number: 17LS19-26049-250E
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 308N (300pps)
  • Rated Current/phase: 2.6A
  • Phase Resistance: 0.9ohms
  • Voltage: 2.33V
  • Inductance: 1.33mH±20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Lead Screw Length: 250mm(9.8425")
  • Lead Screw Diameter: Φ6.35mm(0.25")
  • Lead/Step: 0.00635mm(0.00025" )
  • Lead Travel/Revolution: 1.27mm(0.05")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 352g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 17 External 48mm Stack 2.6A Lead 0.794mm/0.031" Length 250mm
Next: Nema 17 External 48mm Stack 2.6A Lead 2.4384mm/0.096" Length 250mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 1.33
Minimal Thrust(N) 308
Motor Type External
Phase Resistance(ohm) 0.9
Rated Current (A) 2.6
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 47.75
Frame Size(mm) 42x42
Lead Screw Diameter(mm) 6.35
Lead Screw Length(mm) 250
Lead Revolution(mm) 1.27
Linear Travel / Step(mm) 0.00635
No. of Lead 4
Lead Length(mm) 300
