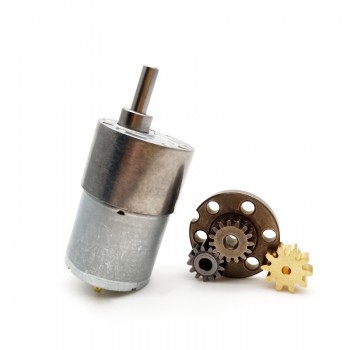

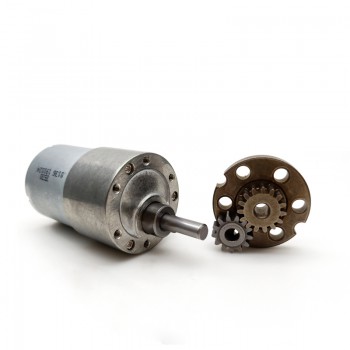

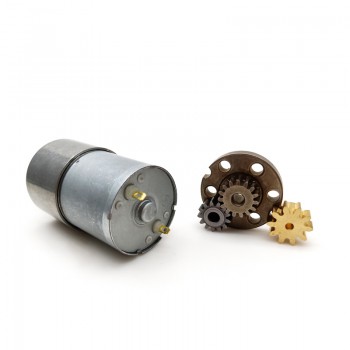

2Pcs 12V 24V Brushed DC Gear Motor Reduction DC Motor 8kg.cm 34.5*30.8mm

2Pcs 12V 24V Brushed DC Gear Motor Reduction DC Motor 8kg.cm 34.5*30.8mm
NO.:GM37-3530
Post a review
Our Price:$23.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $22.78 5%
30 $22.30 7%
50 $21.58 10%
100 $20.38 15%
Add To Cart



Features:
1.Small size dc gear motor with low speed and big torque
2.37mm gear motor provide 1.0Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,11ppr
5.Reduction Ratio: 6、10、19、30、44、56、90、131、169、270、506、810;

2 stages: 6:1/10:1
3 stages: 19:1/30:1
4 stages: 44:1/56:1/90:1
5 stages: 131:1/169:1
6 stages: 506:1/810:1

Application:

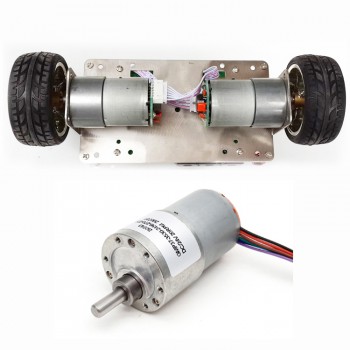

BOAT, Car, Electric Bicycle, Home Appliance, lock,Robot.

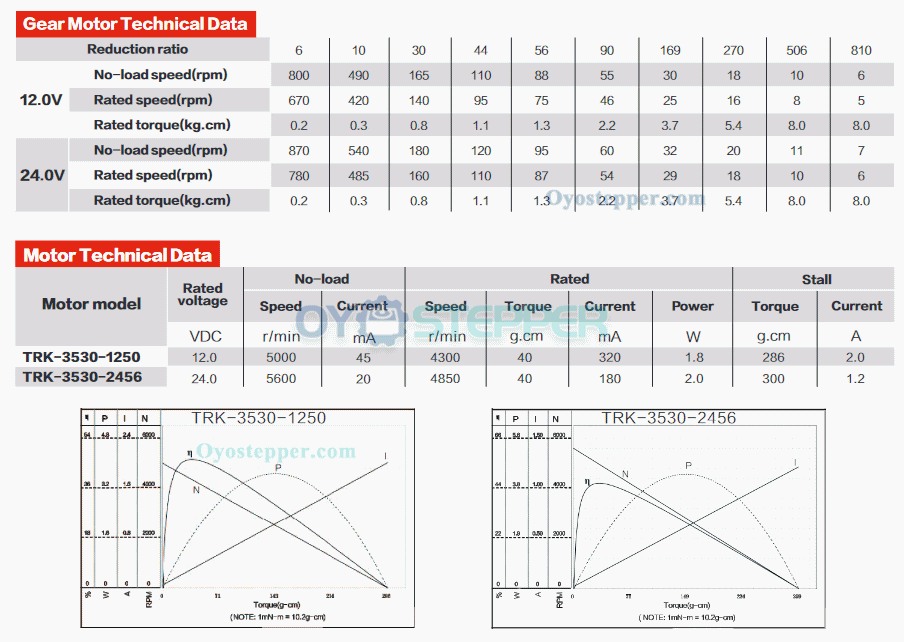

Electrical Specification:
Part Number:GM37-3530
Rated Voltage:12/24VDC
Rated Torque:8.0kg.cm
Max momentary tolerance torque: 15.0kg.cm
Rated current:320mA(12V)/180mA(24V)
No load current:50mA
No Load Speed W/O Gearbox: 5000RPM(12V)/5600RPM(24V)
Rated Speed W/O Gearbox: 4300RPM(12V)/4850RPM(24V)
No Load Speed W Gearbox: 6-870 RPM
Rated Speed W/ Gearbox:5-780 RPM
Rated Power:1.8W(6V) / 2.0W(12V)

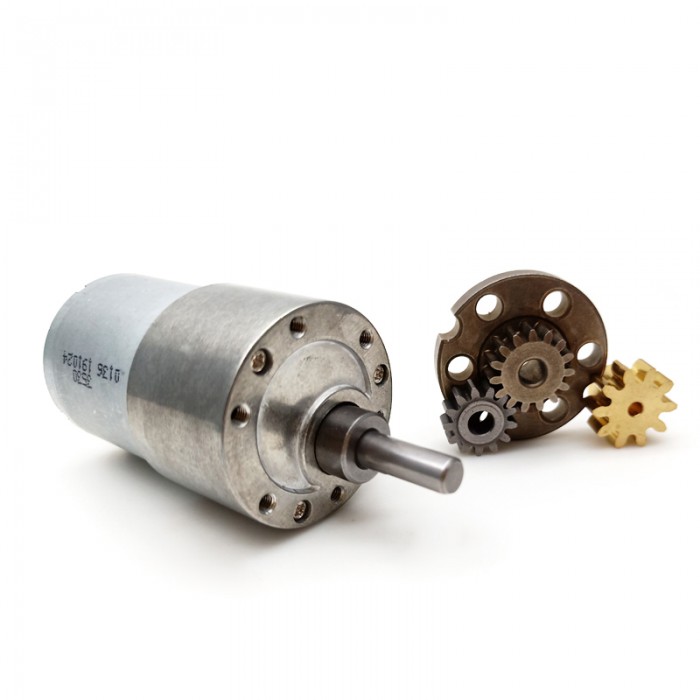

Gear type:Spur gearbox
Motor type:Brushed
Efficiency: 65%
Noise:30cm.40-50db;

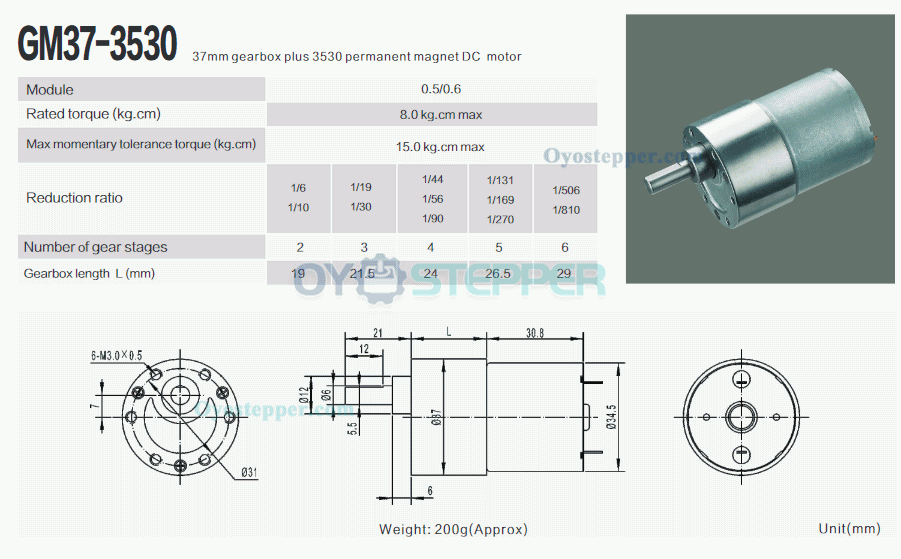

Physical Specification:
Motor Size:Φ34.5x30.8mm
Gearbox Length:19mm/21.5mm/24mm/26.5mm/29mm
Flange size:Φ37mm
Shaft Type:D-cut
D-cut Diameter:5.5mm
D-cut Length:12mm
Shaft Length:15mm
Shaft Diameter:6mm
Weight:200g;



2Pcs 12V 24V Brushed DC Gear Motor Reduction DC Motor 8kg.cm 34.5*30.8mm

2Pcs 12V 24V Brushed DC Gear Motor Reduction DC Motor 8kg.cm 34.5*30.8mm

Resources

GM37-3530.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 6V 12V High Torque Brush DC Gear Motor Reduction DC Motor 3kg.cm 24.4*30.8 mm
Next: 2Pcs 12V 24V Brushed DC Gear Motor Reduction DC Motor 10kg.cm 37*57mm
Physical Specification
Frame Size(mm) Φ37
Shaft Diameter(mm) 6
Shaft Length(mm) 15
Weight(g) 200
Gearbox Type Spur gearbox
Body Length(mm) 30.8
Gearbox Length(mm) 19 / 21.5 / 24 / 26.5 / 29
Gear Ratio 6:1 / 10:1 / 30:1 / 44:1 / 56:1 / 90:1 / 169:1 / 270:1 / 506:1 / 810:1
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Electrical Specification
Rated Power(W) 1.8 / 2
Rated Voltage(V) 12 / 24
Rated Torque(kg.cm) 8
Rated Speed(rpm) 5-780
Rated Current (A) 0.32 / 0.18
