NEMA 23 External Ball Screw Stepper Linear Actuator 3.0A 1.8 Deg1Nm Lead Revolution 5mm(0.1969") Lead Screw 200mm

NEMA 23 External Ball Screw Stepper Linear Actuator 3.0A 1.8 Deg1Nm Lead Revolution 5mm(0.1969") Lead Screw 200mm
NO.:23E22S3004BVL5-200RS
Post a review
Special Offer in July 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till July 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$101.06
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $96.01 5%
5 $93.99 7%
10 $90.95 10%
50 $87.92 13%
Add To Cart

NEMA 23 External Ball Screw Linear Stepper Motor 3.0A 56mm Stack Screw Lead 5mm(0.1969") Lead Length 200mm

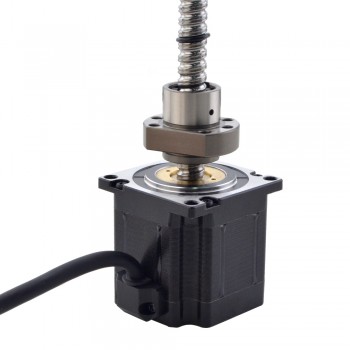

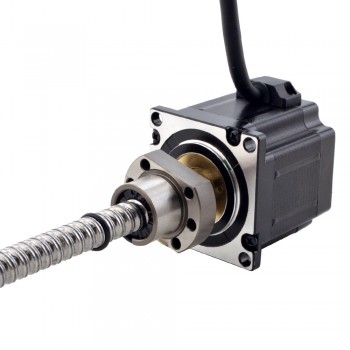

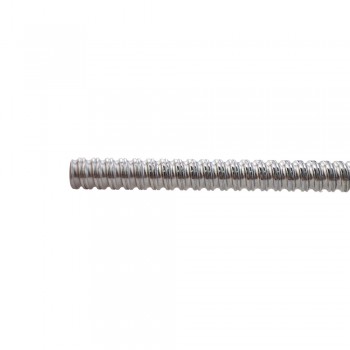

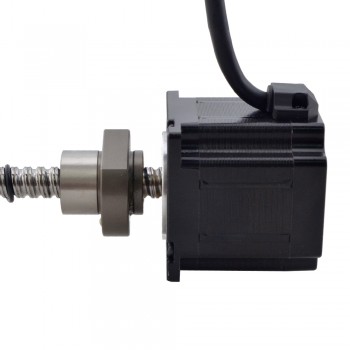

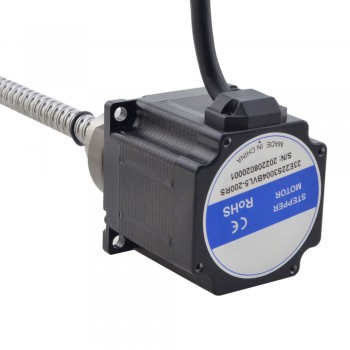

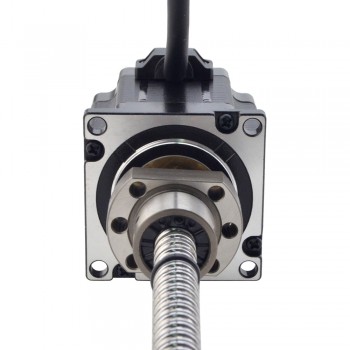

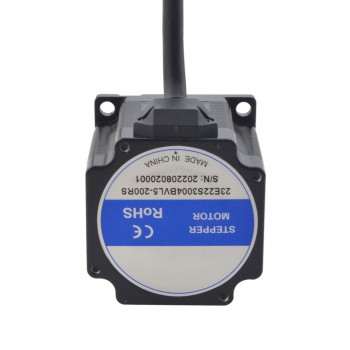

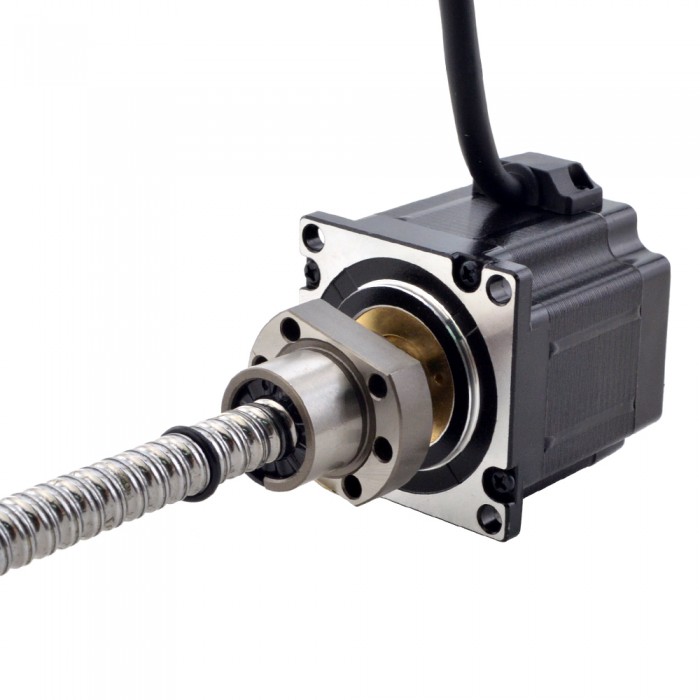

This model is a Nema 23 ball screw linear stepper motor with a 56mm body length, 1.8 degree step angle and 3A rated current. It is integrated with a 12mm(0.4724") diameter 200mm(7.8740") length ball screw length and a steel screw nut, the linear travel is 5mm(0.1969") per revolution.



Electrical Specification

Manufacturer Part Number: 23E22S3004BVL5-200RS

Motor Type: External (Ball Screw)

Step Angle: 1.8°

Holding Torque: 1Nm(141.61oz.in)

Rated Current/phase: 3A

Phase Resistance: 1.1ohms

Inductance: 4.5mH±20%(1KHz)

Accuracy Grade: C7



Physical Specification

Frame Size: 57 x 57mm

Body Length: 56mm

Lead Screw Length: 200mm(7.8740")

Lead Screw Diameter: Φ12mm(0.4724")

Lead/Step: 0.025mm(0.0009843")

Lead Travel/Revolution: 5mm(0.1969")

Number of Leads: 4

Lead Length: 500mm



Connection

A+ A- B+ B-
Red Red/White Green Green/White



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 23 External Acme Stepper Motor Linear Actuator 1.8 Deg 2Nm 4.0A 76mm Stack Lead Revolution 5.08mm(0.2") Lead Screw 200mm
Next: NEMA 23 External Ball Screw Stepper Linear Actuator 1.8 Deg 1.8Nm(254.90oz.in) 4.0A 76mm Stack Lead Revolution 10mm(0.3937") Lead Screw 200mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 4.5
Phase Resistance(ohm) 1.1
Rated Current (A) 3.0
Step Angle(deg.) 1.8
Linear Motor Type External(Ball Screw)
Physical Specification
Body Length(mm) 56
Frame Size(mm) Nema 23 (57 x 57)
Lead Length(mm) 500
Lead Screw Diameter(mm) 12
Lead Screw Length(mm) 200
No. of Lead 4
Lead Travel/Revolution(mm) 5
Lead Travel/Step(mm) 0.025
IP Rating 40
