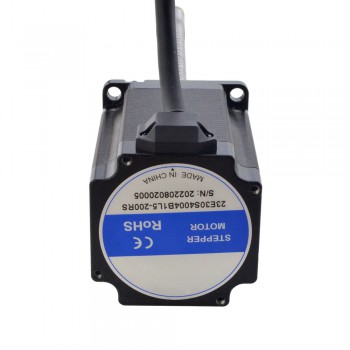

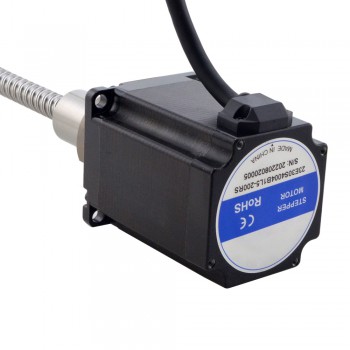

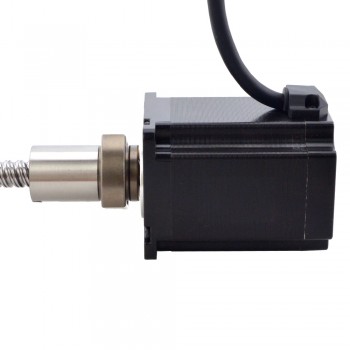

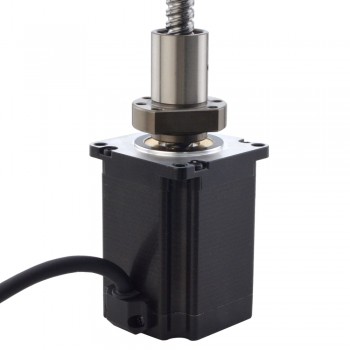

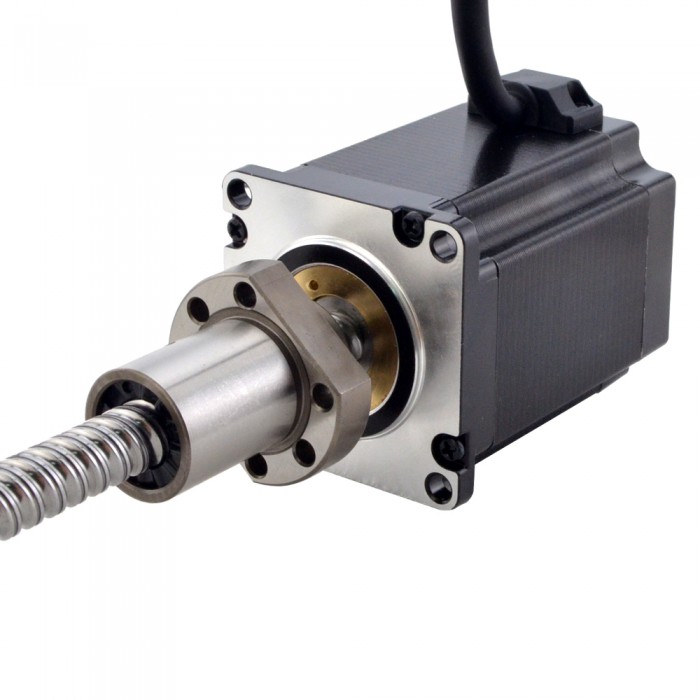

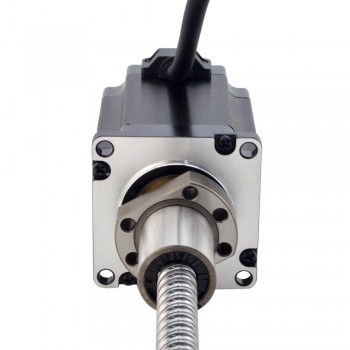

NEMA 23 External Ball Screw Stepper Linear Actuator 1.8 Deg 1.8Nm(254.90oz.in) 4.0A 76mm Stack Lead Revolution 10mm(0.3937") Lead Screw 200mm

NEMA 23 External Ball Screw Stepper Linear Actuator 1.8 Deg 1.8Nm(254.90oz.in) 4.0A 76mm Stack Lead Revolution 10mm(0.3937") Lead Screw 200mm
NO.:23E30S4004B1L5-200RS
Post a review
China National Day Special Offer:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till October 7th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$106.11
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $100.80 5%
5 $98.68 7%
10 $95.50 10%
50 $92.32 13%
Add To Cart

NEMA 23 External Ball Screw Linear Stepper Motor 4.0A 76mm Stack Screw Lead 10mm(0.3937") Lead Length 200mm



This model is a Nema 23 ball screw linear stepper motor with a 75mm body length, 1.8 degree step angle and 4A rated current. It is integrated with a 12mm(0.4724") diameter 200mm(7.8740") length ball screw length and a steel screw nut, the linear travel is 10mm(0.3937") per revolution. It has the characteristics of high performance, long life, low noise and high efficiency.



Electrical Specification

Manufacturer Part Number: 23E30S4004B1L5-200RS

Motor Type: External (Ball Screw)

Step Angle: 1.8°

Holding Torque: 1.8Nm(254.90oz.in)

Rated Current/phase: 4A

Phase Resistance: 0.9ohms

Inductance: 4.5mH±20%(1KHz)

Accuracy Grade: C7



Physical Specification

Frame Size: 57 x 57mm

Body Length: 75mm

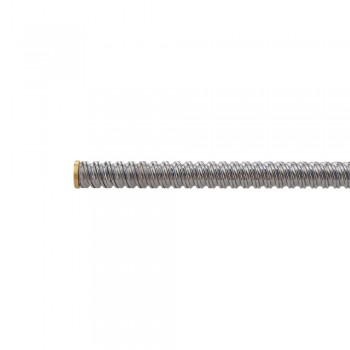

Lead Screw Length: 200mm(7.8740")

Lead Screw Diameter: Φ12mm(0.4724")

Lead/Step: 0.05mm(0.001969")

Lead Travel/Revolution: 10mm(0.3937")

Number of Leads: 4

Lead Length: 500mm



Connection

A+ A- B+ B-
Red Red/White Green Green/White



Resources



Lead Screw End Machining

NEMA 23 External Ball Screw Stepper Linear Actuator 1.8 Deg 1.8Nm(254.90oz.in) 4.0A 76mm Stack Lead Revolution 10mm(0.3937



Anti-Backlash Nut



OYOSTEPPER provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).

There should be a nominal backlash between lead screw and OYOSTEPPER standard plastic nut after millions of cycles. OYOSTEPPER guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, OYOSTEPPER provides spring pressure structure of anti-backlash nut.

NEMA 23 External Ball Screw Stepper Linear Actuator 1.8 Deg 1.8Nm(254.90oz.in) 4.0A 76mm Stack Lead Revolution 10mm(0.3937



Encoders

NEMA 23 External Ball Screw Stepper Linear Actuator 1.8 Deg 1.8Nm(254.90oz.in) 4.0A 76mm Stack Lead Revolution 10mm(0.3937



According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.

Also various resolution can be chosen freely for easier and precise positioning.

All OYOSTEPPER standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.



Brakes



Especially Vertical applications or holding motors from sudden power-off status, OYOSTEPPER standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

NEMA 23 External Ball Screw Stepper Linear Actuator 1.8 Deg 1.8Nm(254.90oz.in) 4.0A 76mm Stack Lead Revolution 10mm(0.3937



Wiring, Cabling and Connectors

NEMA 23 External Ball Screw Stepper Linear Actuator 1.8 Deg 1.8Nm(254.90oz.in) 4.0A 76mm Stack Lead Revolution 10mm(0.3937



Flying wire leads or connectors

Twisting wire leads

Heat shrink or expandable tubing

Cable housings



Teflon Coated Screw



If customer's applications require greaseless screw and nut combination, OYOSTEPPER offers teflon coated lead screw of stepper linear actuator.

Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.

Teflon coating can be applied in the whole range of lead screw options in OYOSTEPPER and all types of linear actuators such as External, Non-Captive, and Captive.

In addition, Anti-backlash nut also can be combined with teflon coated screw too.

NEMA 23 External Ball Screw Stepper Linear Actuator 1.8 Deg 1.8Nm(254.90oz.in) 4.0A 76mm Stack Lead Revolution 10mm(0.3937

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 23 External Ball Screw Stepper Linear Actuator 3.0A 1.8 Deg1Nm Lead Revolution 5mm(0.1969") Lead Screw 200mm
Next: NEMA 23 External Ball Screw Stepper Linear Actuator 1.8 Deg 1.8Nm(254.90oz.in) 4.0A 76mm Stack Lead Revolution 2mm(0.07874") Lead Screw 200mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 4.5
Phase Resistance(ohm) 0.9
Rated Current (A) 4.0
Step Angle(deg.) 1.8
Linear Motor Type External(Ball Screw)
Physical Specification
Body Length(mm) 75
Frame Size(mm) Nema 23 (57 x 57)
Lead Length(mm) 500
Lead Screw Diameter(mm) 12
Lead Screw Length(mm) 200
No. of Lead 4
Lead Travel/Revolution(mm) 10
Lead Travel/Step(mm) 0.05
IP Rating 40
