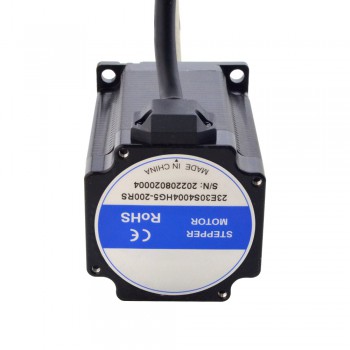

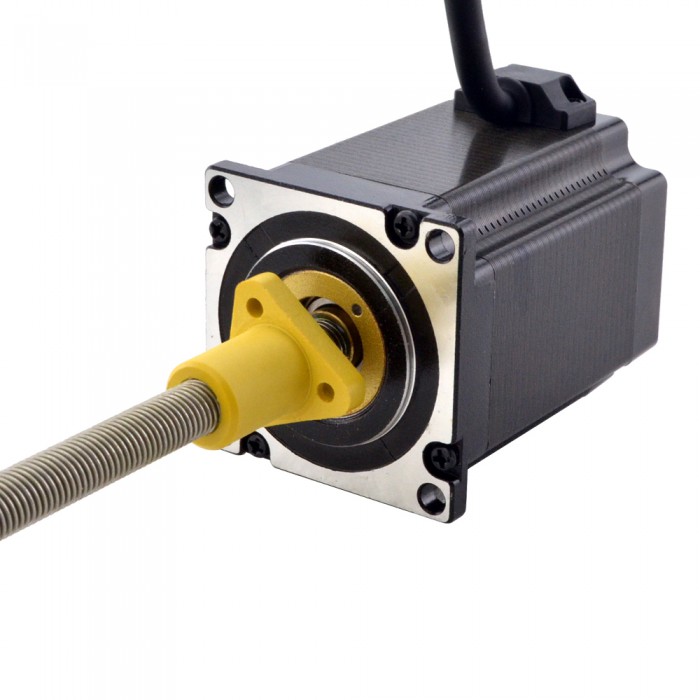

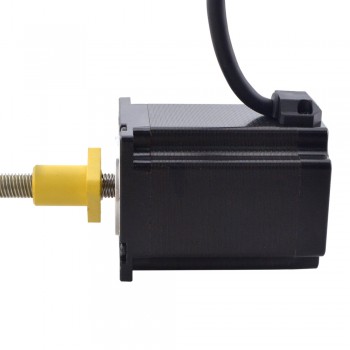

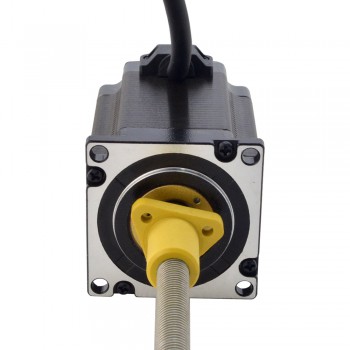

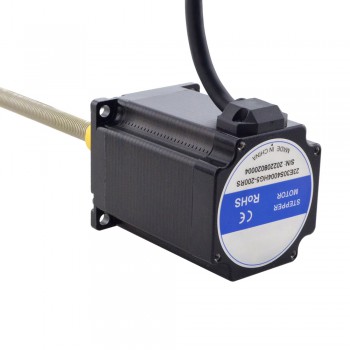

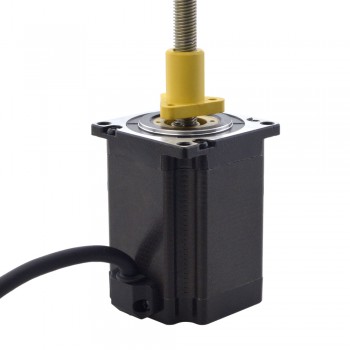

NEMA 23 External Acme Stepper Motor Linear Actuator 1.8 Deg 2Nm 4.0A 76mm Stack Lead Revolution 5.08mm(0.2") Lead Screw 200mm
NEMA 23 External Acme Linear Stepper Motor 4.0A 76mm Stack Screw Lead 5.08mm(0.2") Lead Length 200mm

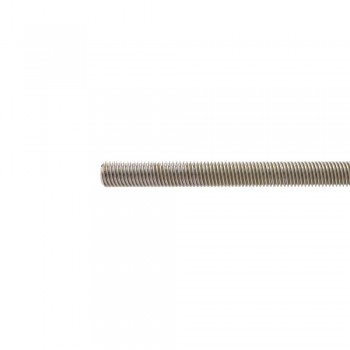

This NEMA 23 linear stepper has a 76 mm body, 1.8° step, and 4 A. It features a 200 mm, 9.525 mm ACME screw with POM nut (5.08 mm/rev).
Electrical Specification
Manufacturer Part Number: 23E30S4004HG5-200RS
Motor Type: External(ACME)
Step Angle: 1.8°
Holding Torque: 2Nm(283.28oz.in)
Rated Current/phase: 4A
Phase Resistance: 0.9ohms
Inductance: 4.3mH±20%(1KHz)
Physical Specification
Frame Size: 57 x 57mm
Body Length: 76mm
Lead Screw Length: 200mm(7.8740")
Lead Screw Diameter: Φ9.525mm(0.375")
Lead/Step: 0.0254mm(0.001")
Lead Travel/Revolution: 5.08mm(0.2")
Number of Leads: 4
Number of Thread Starts: 4
Lead Length: 500mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 4.3 |
| Phase Resistance(ohm) | 0.9 |
| Rated Current (A) | 4.0 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | External(Acme) |
| Physical Specification | |
| Body Length(mm) | 76 |
| Frame Size(mm) | Nema 23 (57 x 57) |
| Lead Length(mm) | 500 |
| Lead Screw Diameter(mm) | 9.525 |
| Lead Screw Length(mm) | 200 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 5.08 |
| Lead Travel/Step(mm) | 0.0254 |
| IP Rating | 40 |
