NEMA 23 External Acme Stepper Motor Linear Actuator 1.8 Deg 2Nm(283.28oz.in) 4.0A 76mm Stack Lead Revolution 25.4mm(1") Lead Screw 200mm

NEMA 23 External Acme Stepper Motor Linear Actuator 1.8 Deg 2Nm(283.28oz.in) 4.0A 76mm Stack Lead Revolution 25.4mm(1") Lead Screw 200mm
NO.:23E30S4004YG5-200RS
Post a review
Special Offer in July 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till July 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$68.21
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $64.80 5%
10 $63.44 7%
50 $61.39 10%
100 $59.34 13%
Add To Cart

NEMA 23 External Acme Linear Stepper Motor 4.0A 76mm Stack Screw Lead 25.4mm(1") Lead Length 200mm

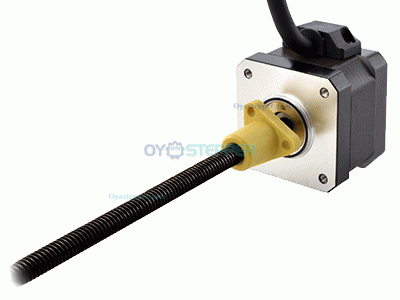

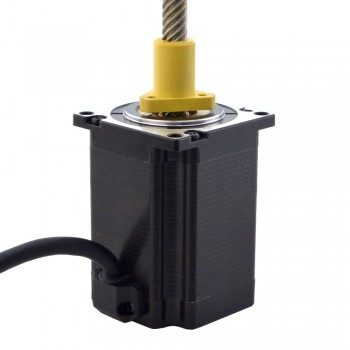

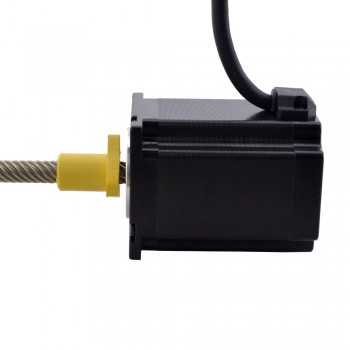

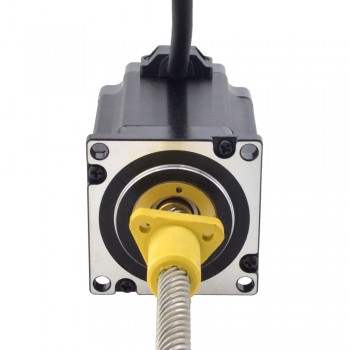

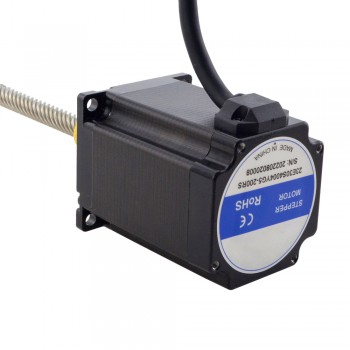

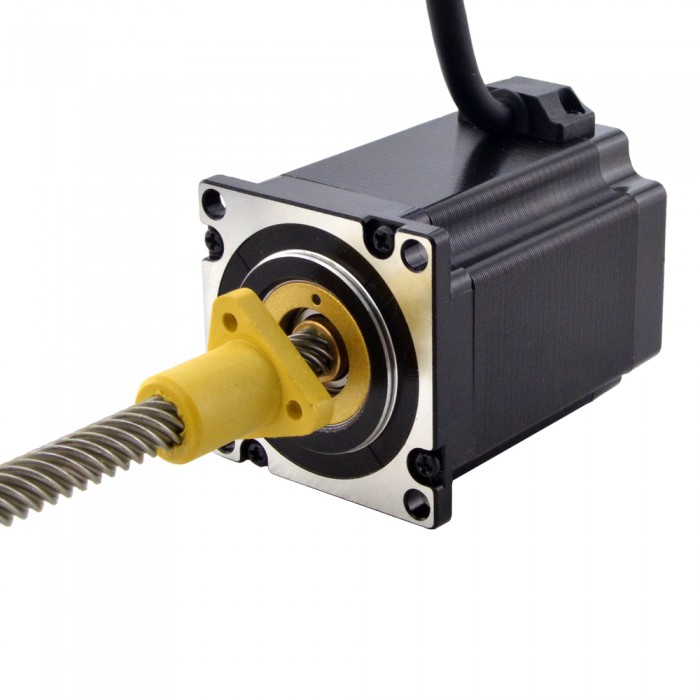

This model is a Nema 23 ACME screw linear stepper motor with a 76mm body length, 1.8 degree step angle and 4A rated current. It is integrated with a Φ9.525mm(0.375") diameter, 200mm(7.8740") ACME screw length and a POM screw nut, the linear travel is 25.4mm(1") per revolution.



Electrical Specification

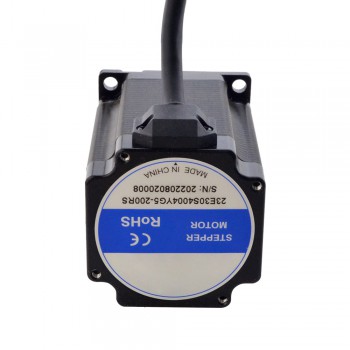

Manufacturer Part Number: 23E30S4004YG5-200RS

Motor Type: External(ACME)

Step Angle: 1.8°

Holding Torque: 2Nm(283.28oz.in)

Rated Current/phase: 4A

Phase Resistance: 0.9ohms

Inductance: 4.3mH±20%(1KHz)



Physical Specification

Frame Size: 57 x 57mm

Body Length: 76mm

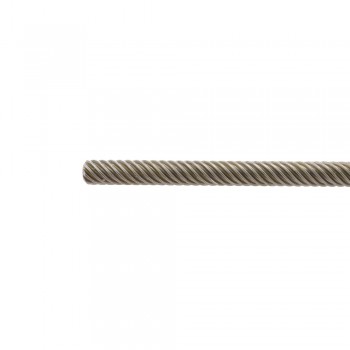

Lead Screw Length: 200mm(7.8740")

Lead Screw Diameter: Φ9.525mm(0.375")

Lead/Step: 0.127mm(0.005")

Lead Travel/Revolution: 25.4mm(1")

Number of Leads: 4

Number of Thread Starts: 8

Lead Length: 500mm

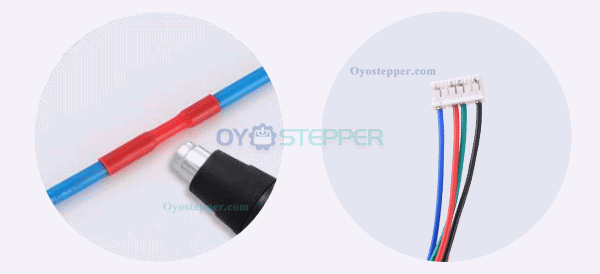

Connection

A+ A- B+ B-
Red Red/White Green Green/White



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 23 External Acme Stepper Motor Linear Actuator 1.8 Deg 2Nm(283.28oz.in) 4.0A 76mm Stack Lead Revolution 2.54mm(0.1") Lead Screw 200mm
Next: NEMA 23 External Acme Stepper Motor Linear Actuator 1.8 Deg 2Nm 4.0A 76mm Stack Lead Revolution 5.08mm(0.2") Lead Screw 200mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 4.3
Phase Resistance(ohm) 0.9
Rated Current (A) 4.0
Step Angle(deg.) 1.8
Linear Motor Type External(Acme)
Physical Specification
Body Length(mm) 76
Frame Size(mm) Nema 23 (57 x 57)
Lead Length(mm) 500
Lead Screw Diameter(mm) 9.525
Lead Screw Length(mm) 200
No. of Lead 4
Lead Travel/Revolution(mm) 25.4
Lead Travel/Step(mm) 0.127
IP Rating 40
