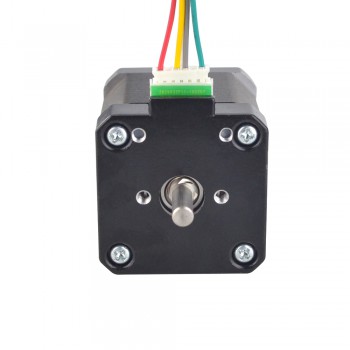

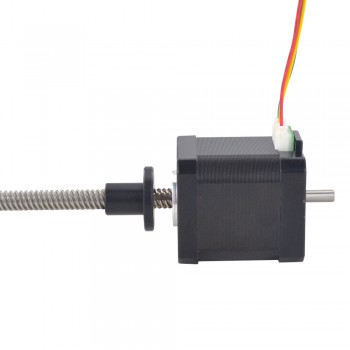

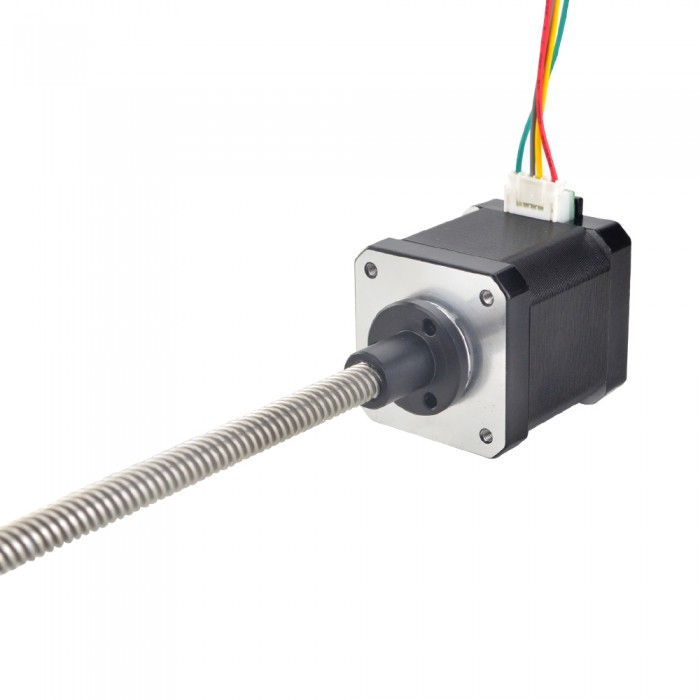

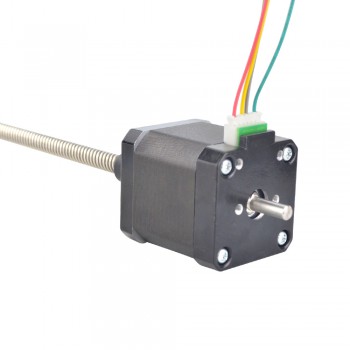

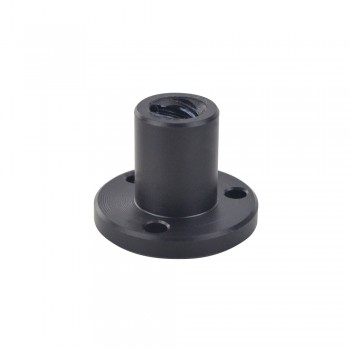

Nema 17 Dual Shaft External Linear Stepper Motor 48mm Stack 1.68A Lead 8mm/0.31496" Lead Screw 200mm

Nema 17 Dual Shaft External Linear Stepper Motor 48mm Stack 1.68A Lead 8mm/0.31496" Lead Screw 200mm
NO.:17LS19-1684E-200G-AR3
Post a review
Our Price:$56.41
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $53.59 5%
10 $52.46 7%
50 $50.77 10%
100 $49.08 13%
Add To Cart

Electrical Specification

Manufacturer Part Number: 17LS19-1684E-200G-AR3-AR3

Motor Type: External Linear Stepper

Step Angle: 1.8 deg

Holding Torque: 44Ncm(62.3oz.in)

Rated Current/phase: 1.68A

Phase Resistance: 1.65ohms

Voltage: 2.8V

Inductance: 3mH ± 20%(1KHz)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 48mm

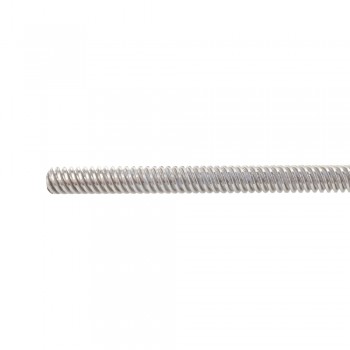

Lead Screw Length: 200mm(7.874")

Lead Screw Diameter: Φ8mm(0.315")

Rear Shaft Diameter: Φ5mm(0.197")

Rear Shaft Length: 13mm(0.512")

Lead/Step: 0.04mm(0.0015748" )

Lead/Revolution: 8mm(0.315")

Number of Leads: 4

Lead Length: 400mm

Weight: 431g



Connection

A+
A-
B+
B-
Red
Brown
Yellow
Green



Resources

Full Datasheet: 17LS19-1684E-200G-AR3.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Non-captive Linear Stepper Motor 48mm Stack 1.8 Deg 1.68A 2.8V Lead 8mm/0.31496" Lead Screw 300mm
Next: Nema 17 External Linear Stepper Motor 1.8 Deg 2.8V 44Ncm(62.3oz.in) 48mm Stack 1.68A Lead 2mm/0.07874" Lead Screw 330mm
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 44
Holding Torque (oz.in) 62.3
Inductance(mH) 2.8
Phase Resistance(ohm) 1.65
Rated Current (A) 1.68
Step Angle(°) 1.8
Motor Type External
Physical Specification
Body Length(mm) 48
Lead Length(mm) 500
Lead Screw Diameter(mm) 8
Lead Screw Length(mm) 200
No. of Lead 4
Lead Travel/Revolution(mm) 8
Lead Travel/Step(mm) 0.04
Frame Size(mm) Nema 17 (42 x 42)
