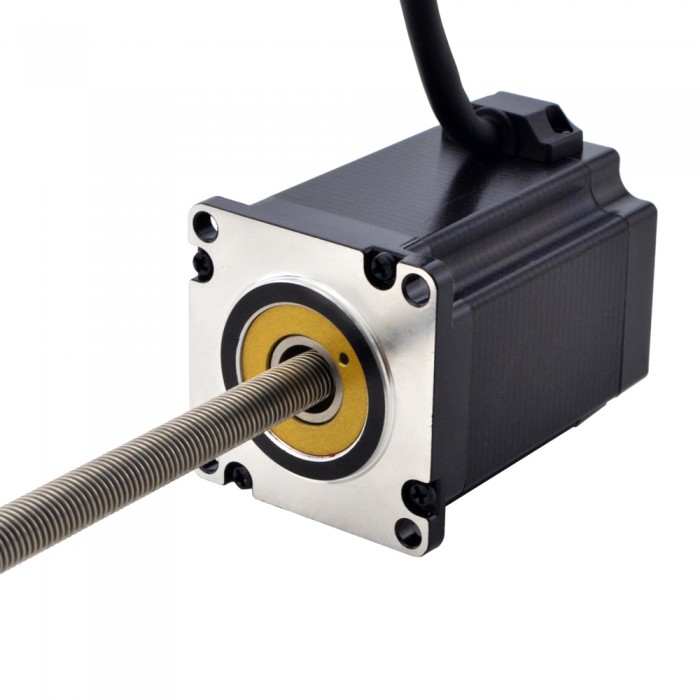

NEMA 23 Non-Captive Acme Hybrid Linear Stepper Motor Actuator 1.8 Deg 1.8Nm 4.0A 76mm Stack Lead Revolution 5.08mm(0.2") Lead Screw 200mm

NO.:23N30S4004HG5-250RS
Post a review

Special Offer in April 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till April 30th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$68.21

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$64.80	5%
10	$63.44	7%
50	$61.39	10%
100	$59.34	13%

Affiliate Link

Description Specification Custom Options Review

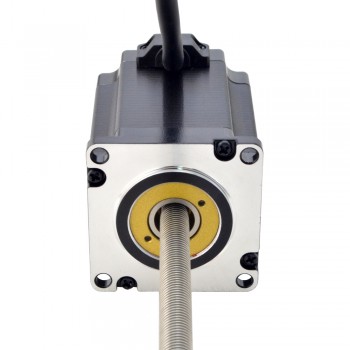

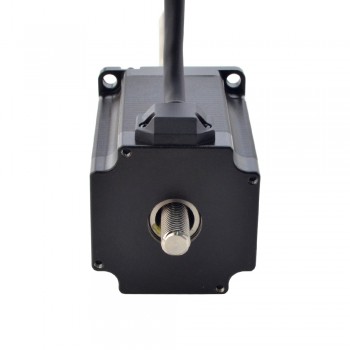

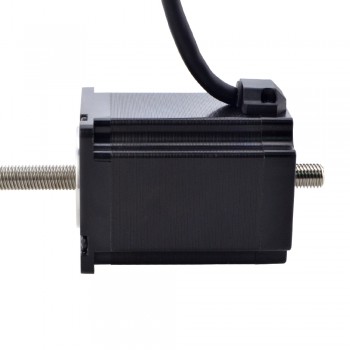

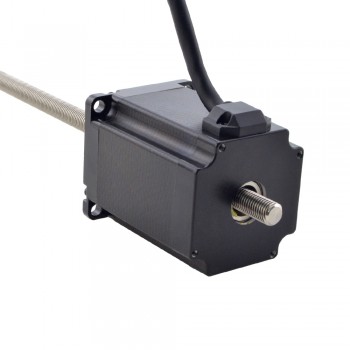

NEMA 23 Non-Captive Acme Linear Stepper Motor 4.0A 76mm Stack Screw Lead 5.08mm(0.2") Lead Length 200mm

This model is a Nema 23 Non-Captive screw linear stepper motor with a 76mm body length, 1.8 degree step angle and 4A rated current. It is integrated with a Φ9.525mm(0.375") diameter, 250mm(9.8425") lead screw length and a POM screw nut, the linear travel is 5.08mm(0.2") per revolution.

Electrical Specification

Manufacturer Part Number: 23N30S4004HG5-250RS

Motor Type: Non-Captive

Step Angle: 1.8°

Holding Torque: 1.8Nm(254.95oz.in)

Rated Current/phase: 4A

Phase Resistance: 0.9ohms

Inductance: 4.5mH±20%(1KHz)

Physical Specification

Frame Size: 57 x 57mm

Body Length: 75mm

Lead Screw Length: 250mm(9.8425")

Lead Screw Diameter: Φ9.525mm(0.375")

Lead/Step: 0.0254mm(0.001")

Lead Travel/Revolution: 5.08mm(0.2")

Number of Leads: 4

Number of Thread Starts: 4

Lead Length: 500mm

Connection

A+	A-	B+	B-
Red	Red/White	Green	Green/White

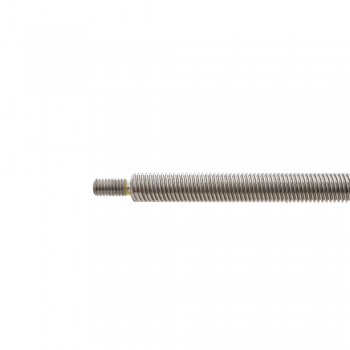

Lead Screw End Machining

NEMA 23 Non-Captive Acme Hybrid Linear Stepper Motor Actuator 1.8 Deg 1.8Nm 4.0A 76mm Stack Lead Revolution 5.08mm(0.2

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 23 Non-Captive Acme Linear Actuator 1.8 Deg 1.8Nm 4.0A 76mm Stack Lead Revolution 25.4mm(1") Lead Screw 200mm
Next: NEMA 24 External Acme Hybrid Linear Stepper Motor Actuator 1.8 Deg 2.5Nm 5.0A 75mm Stack Lead Revolution 5.08mm(0.2") Lead Screw 200mm

Electrical Specification
Bipolar/Unipolar	Bipolar
Inductance(mH)	4.3
Phase Resistance(ohm)	0.9
Rated Current (A)	4.0
Step Angle(deg.)	1.8
Linear Motor Type	Non-Captive
Physical Specification
Body Length(mm)	75
Frame Size(mm)	Nema 23 (57 x 57)
Lead Length(mm)	500
Lead Screw Diameter(mm)	9.525
Lead Screw Length(mm)	250
No. of Lead	4
Lead Travel/Revolution(mm)	5.08
Lead Travel/Step(mm)	0.0254
IP Rating	40
