NEMA 23 Non-Captive Acme Linear Actuator 1.8 Deg 1.8Nm 4.0A 76mm Stack Lead Revolution 25.4mm(1") Lead Screw 200mm

NEMA 23 Non-Captive Acme Linear Actuator 1.8 Deg 1.8Nm 4.0A 76mm Stack Lead Revolution 25.4mm(1") Lead Screw 200mm
NO.:23N30S4004YG5-250RS
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$68.21
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $64.80 5%
10 $63.44 7%
50 $61.39 10%
100 $59.34 13%
Add To Cart

NEMA 23 Non-Captive Acme Linear Stepper Motor 4.0A 76mm Stack Screw Lead 25.4mm(1") Lead Length 200mm

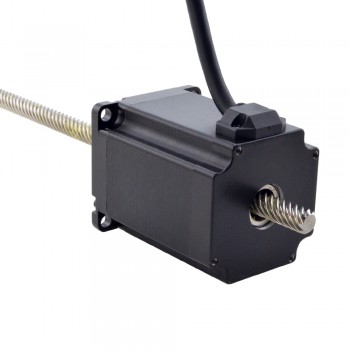

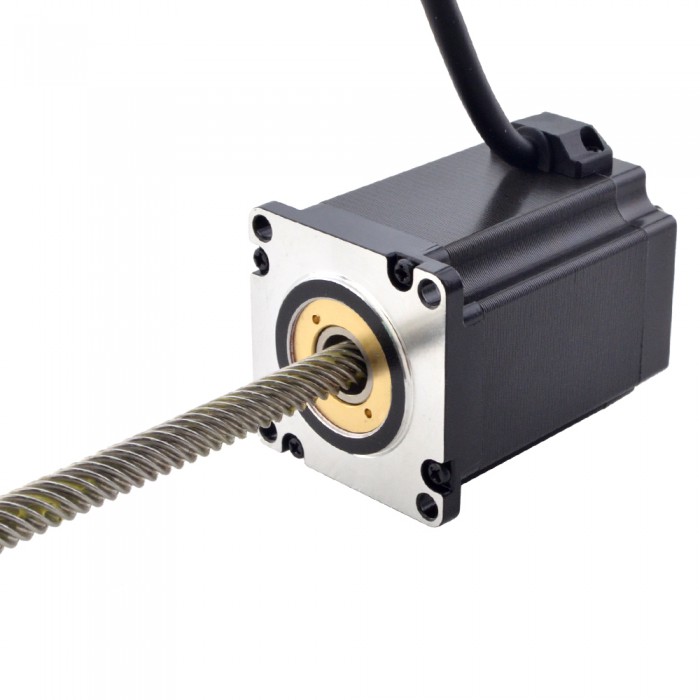

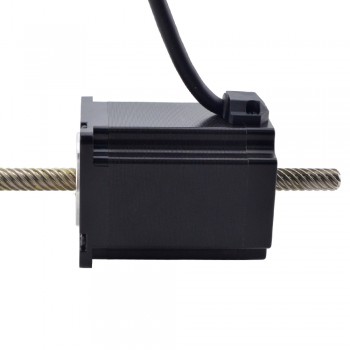

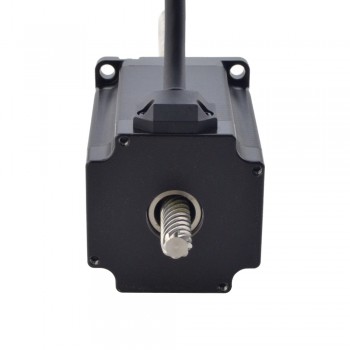

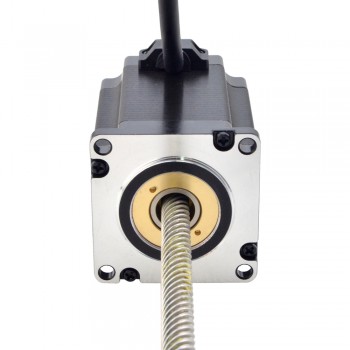

This model is a Nema 23 Non-Captive screw linear stepper motor with a 76mm body length, 1.8 degree step angle and 4A rated current. It is integrated with a Φ9.525mm(0.375") diameter, 250mm(9.8425") lead screw length and a POM screw nut, the linear travel is 25.4mm(1") per revolution.



Electrical Specification

Manufacturer Part Number: 23N30S4004YG5-250RS

Motor Type: Non-Captive

Step Angle: 1.8°

Holding Torque: 1.8Nm(254.95oz.in)

Rated Current/phase: 4A

Phase Resistance: 0.9ohms

Inductance: 4.5mH±20%(1KHz)



Physical Specification

Frame Size: 57 x 57mm

Body Length: 75mm

Lead Screw Length: 250mm(9.8425")

Lead Screw Diameter: Φ9.525mm(0.375")

Lead/Step: 0.127mm(0.005")

Lead Travel/Revolution: 25.4mm(1")

Number of Leads: 4

Number of Thread Starts: 8

Lead Length: 500mm



Connection

A+ A- B+ B-
Red Red/White Green Green/White

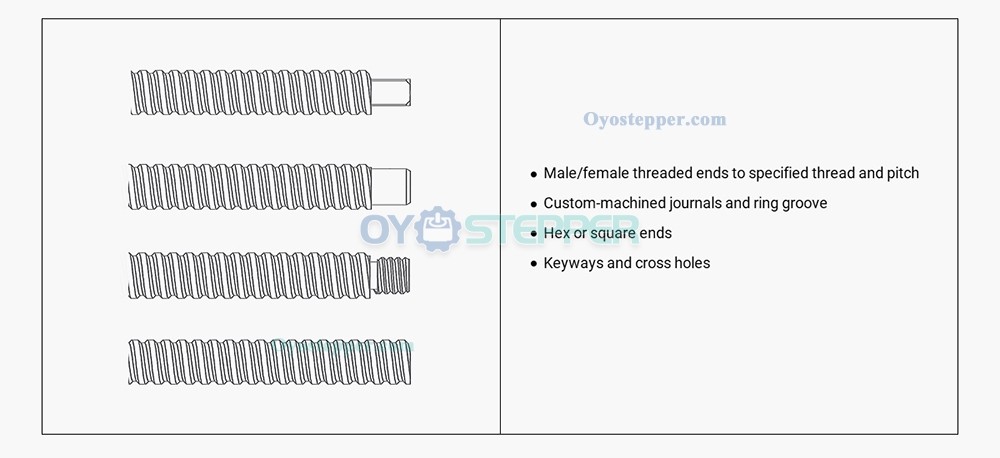

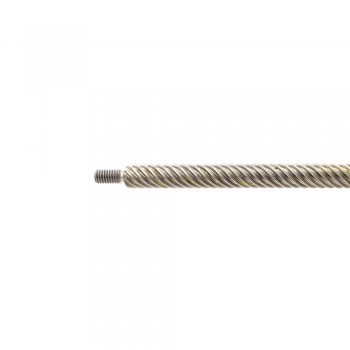

Lead Screw End Machining

NEMA 23 Non-Captive Acme Linear Actuator 1.8 Deg 1.8Nm 4.0A 76mm Stack Lead Revolution 25.4mm(1



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 23 Non-Captive Acme Linear Actuator 1.8 Deg 1.8Nm 4.0A 76mm Stack Lead Revolution 2.54mm(0.1") Lead Screw 200mm
Next: NEMA 23 Non-Captive Acme Hybrid Linear Stepper Motor Actuator 1.8 Deg 1.8Nm 4.0A 76mm Stack Lead Revolution 5.08mm(0.2") Lead Screw 200mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 4.3
Phase Resistance(ohm) 0.9
Rated Current (A) 4.0
Step Angle(deg.) 1.8
Linear Motor Type Non-Captive
Physical Specification
Body Length(mm) 75
Frame Size(mm) Nema 23 (57 x 57)
Lead Length(mm) 500
Lead Screw Diameter(mm) 9.525
Lead Screw Length(mm) 250
No. of Lead 4
Lead Travel/Revolution(mm) 25.4
Lead Travel/Step(mm) 0.127
IP Rating 40
