NEMA 24 External Acme Hybrid Linear Stepper Motor Actuator 1.8 Deg 2.5Nm 5.0A 75mm Stack Lead Revolution 5.08mm(0.2") Lead Screw 200mm

NEMA 24 External Acme Hybrid Linear Stepper Motor Actuator 1.8 Deg 2.5Nm 5.0A 75mm Stack Lead Revolution 5.08mm(0.2") Lead Screw 200mm
NO.:24E30S5004HG5-200RS
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$80.84
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $76.80 5%
10 $75.18 7%
50 $72.76 10%
100 $70.33 13%
Add To Cart

NEMA 24 External Acme Linear Stepper Motor 5.0A 75mm Stack Screw Lead 5.08mm(0.2") Lead Length 200mm

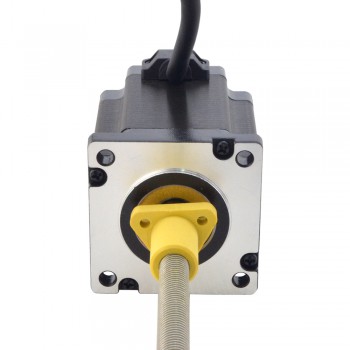

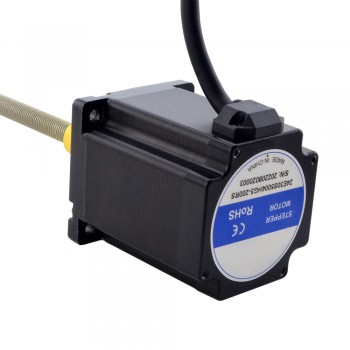

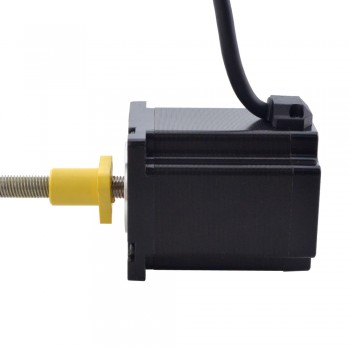

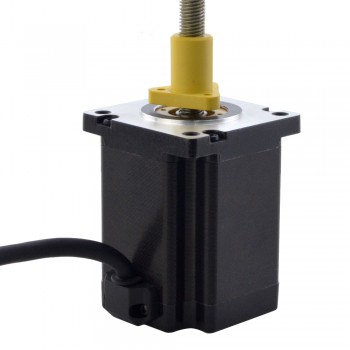

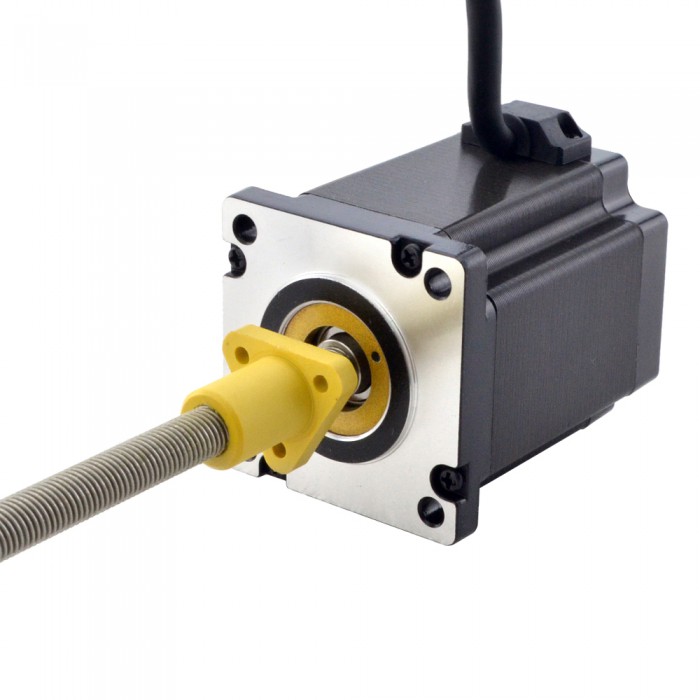

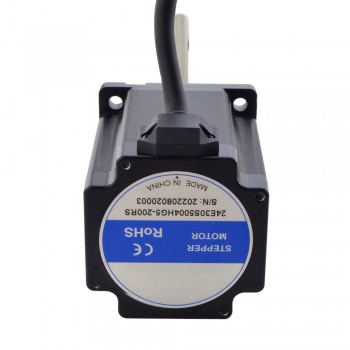

This model is a Nema 24 ACME screw linear stepper motor with a 75mm body length, 1.8 degree step angle and 5A rated current. It is integrated with a Φ9.525mm(0.375") diameter, 200mm(7.8740") ACME screw length and a POM screw nut, the linear travel is 5.08mm(0.2") per revolution.



Electrical Specification

Manufacturer Part Number: 24E30S5004HG5-200RS

Motor Type: External(ACME)

Step Angle: 1.8°

Holding Torque: 2.5Nm(354.1oz.in)

Rated Current/phase: 5A

Phase Resistance: 0.57ohms

Inductance: 2mH±20%(1KHz)



Physical Specification

Frame Size: 60 x 60mm

Body Length: 75mm

Lead Screw Length: 200mm(7.8740")

Lead Screw Diameter: Φ9.525mm(0.375")

Lead/Step: 0.0254mm(0.001")

Lead Travel/Revolution: 5.08mm(0.2")

Number of Leads: 4

Number of Thread Starts: 4

Lead Length: 500mm



Connection

A+ A- B+ B-
Red Red/White Green Green/White

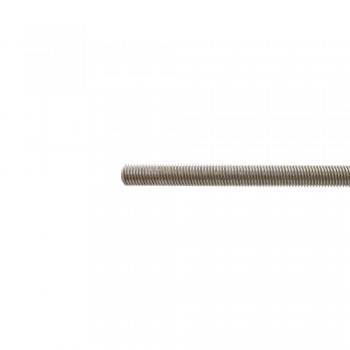

Lead Screw End Machining

NEMA 24 External Acme Hybrid Linear Stepper Motor Actuator 1.8 Deg 2.5Nm 5.0A 75mm Stack Lead Revolution 5.08mm(0.2



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 23 Non-Captive Acme Hybrid Linear Stepper Motor Actuator 1.8 Deg 1.8Nm 4.0A 76mm Stack Lead Revolution 5.08mm(0.2") Lead Screw 200mm
Next: NEMA 34 External Acme Hybrid Linear Stepper Motor Actuator 1.8 Deg 4.5Nm(637.38oz.in) 5.5A 75mm Stack Lead Revolution 2.54mm(0.1") Lead Screw 200mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 2
Phase Resistance(ohm) 0.57
Rated Current (A) 5.0
Step Angle(deg.) 1.8
Linear Motor Type External(Acme)
Physical Specification
Body Length(mm) 75
Frame Size(mm) Nema 24 (60 x 60)
Lead Length(mm) 500
Lead Screw Diameter(mm) 9.525
Lead Screw Length(mm) 200
No. of Lead 4
Lead Travel/Revolution(mm) 5.08
Lead Travel/Step(mm) 0.0254
IP Rating 40
