NEMA 34 External Acme Hybrid Linear Stepper Motor Actuator 1.8 Deg 4.5Nm(637.38oz.in) 5.5A 75mm Stack Lead Revolution 2.54mm(0.1") Lead Screw 200mm

NO.:34E30S5504GK5-200RS
Post a review

Special Offer in April 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till April 30th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$146.53

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
2	$139.20	5%
5	$136.27	7%
10	$131.88	10%
50	$127.48	13%

Affiliate Link

Description Specification Custom Options Review

NEMA 34 External Acme Linear Stepper Motor 5.5A 75mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm

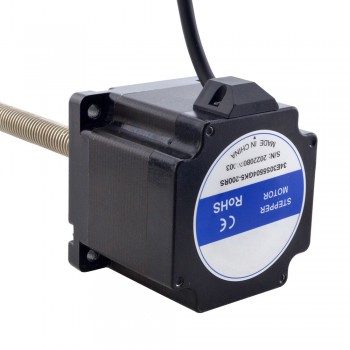

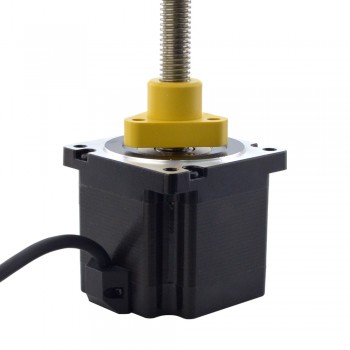

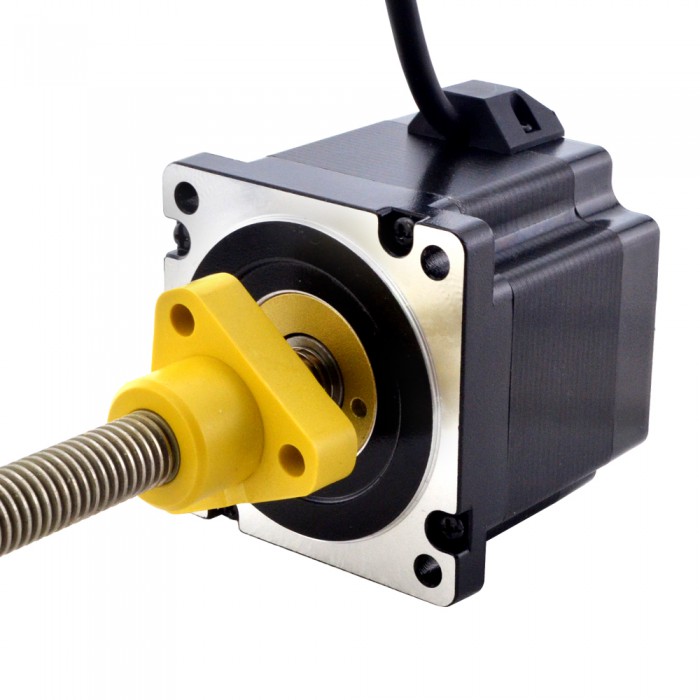

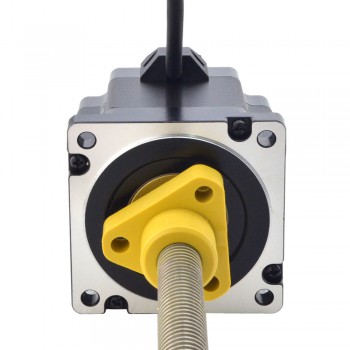

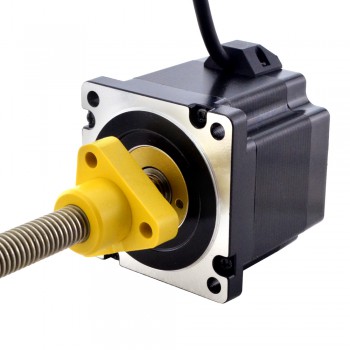

This model is a Nema 34 ACME screw linear stepper motor with a 76mm body length, 1.8 degree step angle and 5.5A rated current. It is integrated with a Φ15.875mm(0.625") diameter, 200mm(7.8740") ACME screw length and a POM screw nut, the linear travel is 2.54mm(0.1") per revolution.

Electrical Specification

Manufacturer Part Number: 34E30S5504GK5-200RS

Motor Type: External(ACME)

Step Angle: 1.8°

Holding Torque: 4.5Nm(637.38oz.in)

Rated Current/phase: 5.5A

Phase Resistance: 0.5ohms

Inductance: 4.5mH±20%(1KHz)

Physical Specification

Frame Size: 76 x 76mm

Body Length: 76mm

Lead Screw Length: 200mm(7.8740")

Lead Screw Diameter: Φ15.875mm(0.625")

Lead/Step: 0.0127mm(0.0005")

Lead Travel/Revolution: 2.54mm(0.1")

Number of Leads: 4

Number of Thread Starts: 1

Lead Length: 500mm

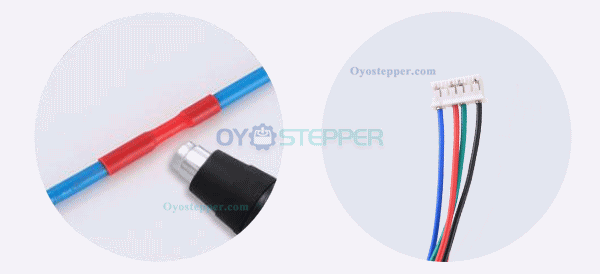

Connection

A+	A-	B+	B-
Red	Red/White	Green	Green/White

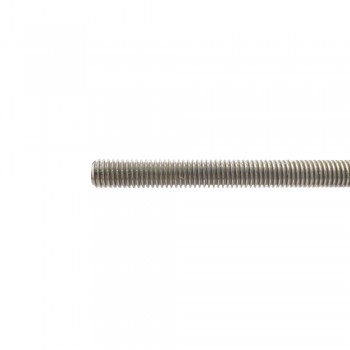

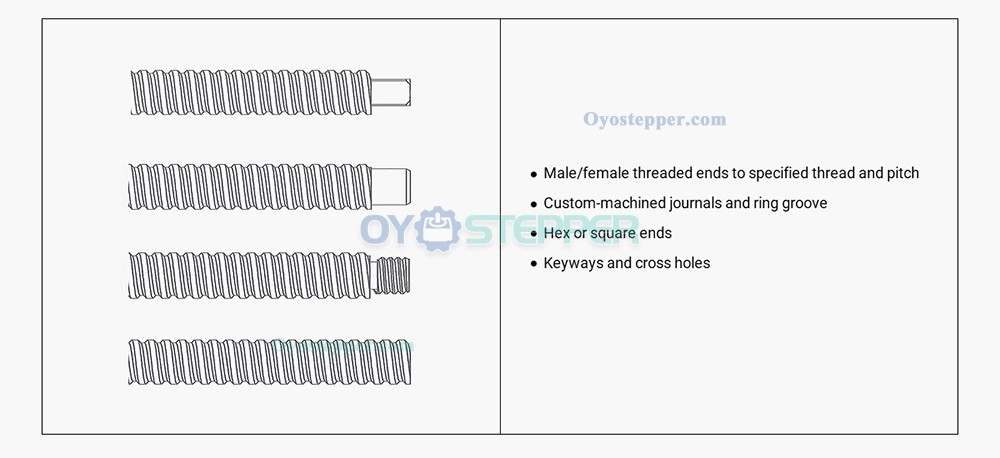

Lead Screw End Machining

NEMA 34 External Acme Hybrid Linear Stepper Motor Actuator 1.8 Deg 4.5Nm(637.38oz.in) 5.5A 75mm Stack Lead Revolution 2.54mm(0.1

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 24 External Acme Hybrid Linear Stepper Motor Actuator 1.8 Deg 2.5Nm 5.0A 75mm Stack Lead Revolution 5.08mm(0.2") Lead Screw 200mm
Next: NEMA 34 External Acme Linear Stepper Motor Actuator 1.8 Deg 4.5Nm(637.38oz.in) 5.5A 75mm Stack Lead Revolution 6.35mm(0.25") Lead Screw 200mm

Electrical Specification
Bipolar/Unipolar	Bipolar
Inductance(mH)	4.5
Phase Resistance(ohm)	0.5
Rated Current (A)	5.5
Step Angle(deg.)	1.8
Linear Motor Type	External(Acme)
Physical Specification
Body Length(mm)	76
Frame Size(mm)	Nema 34 (76 x 76)
Lead Length(mm)	500
Lead Screw Diameter(mm)	15.875
Lead Screw Length(mm)	200
No. of Lead	4
Lead Travel/Revolution(mm)	2.54
Lead Travel/Step(mm)	0.0127
IP Rating	40
