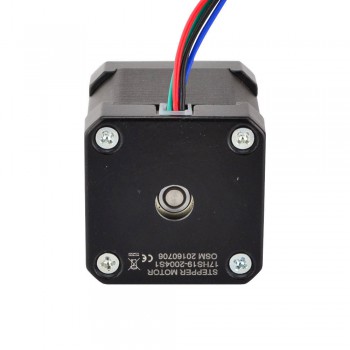

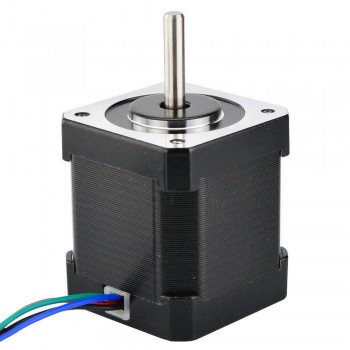

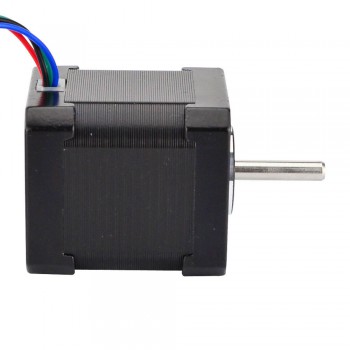

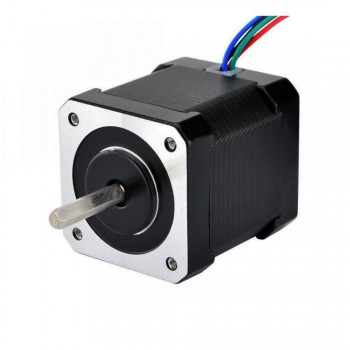

Full D-cut Shaft Nema 17 Stepper Motor Bipolar 59Ncm (84oz.in) 2A 42x48mm 4 Wires

Full D-cut Shaft Nema 17 Stepper Motor Bipolar 59Ncm (84oz.in) 2A 42x48mm 4 Wires
NO.:17HS19-2004S2
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$13.37
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $12.70 5%
30 $12.43 7%
50 $12.03 10%
100 $11.63 13%
Add To Cart

Full D-cut Shaft Nema 17 Stepper Motor Bipolar 59Ncm (84oz.in) 2A 42x48mm 4 Wires

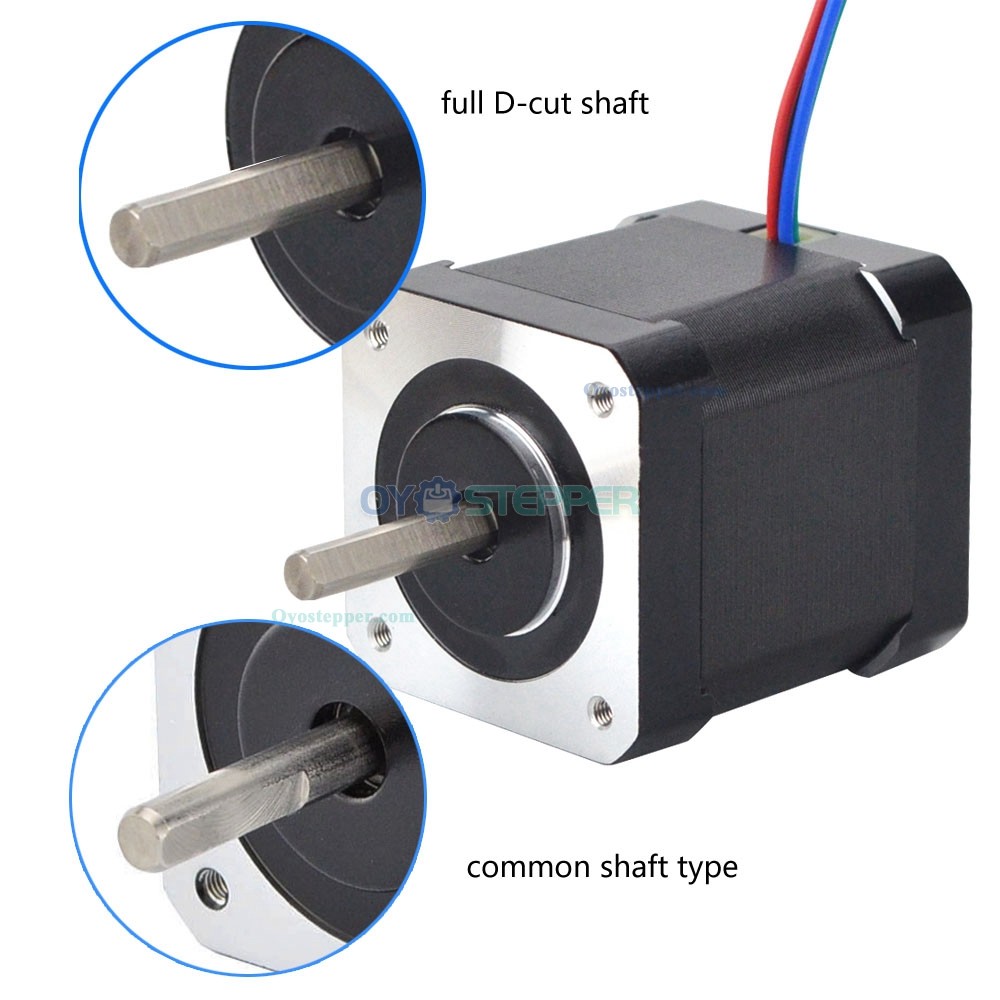

This is an updated version nema 17 stepper motor with holding torque of 59Ncm(83.6oz.in) and a full d-cut shaft. Based on old verstion, we have lengthened motor cable length to 1 metre, and add a 4-pin 0.1" pitch (2.54mm) Harwin female connector at the end of cable. It's suitable for 3D printers, as well as CNC and robotics applications.



Full D-cut Shaft Nema 17 Stepper Motor Bipolar 59Ncm (84oz.in) 2A 42x48mm 4 Wires



Electrical Specification

Manufacturer Part Number: 17HS19-2004S2

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 59Ncm(84oz.in)

Rated Current/phase: 2.0A

Phase Resistance: 1.4ohms

Inductance: 3.0mH ± 20%(1KHz)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 47mm

Shaft Diameter: Φ5mm

Shaft Length: 24mm

D-cut Length: 24mm

Number of Leads: 4

Lead Length: 1000mm

Weight: 390g



Connection



A+ A- B+ B-
Black Green Red Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Leadshine 3DM2283 Digital Stepper Driver 2.1-11.7A 176-253VAC for 3-Phase Nema 34, 42, 52 Stepper Motor
Next: Geared Brushless DC Motor 24V 84W 350RPM 10:1 3 Phase BLDC Gear Motor with Gearbox
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 59
Holding Torque (oz.in) 84
Inductance(mH) 3
Phase Resistance(ohm) 1.4
Rated Current (A) 2
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 48
Frame Size(mm) Nema 17 (42 x 42)
Lead Length(mm) 1000
No. of Lead 4
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Single Shaft/Dual Shaft Single Shaft
Weight(g) 400
Output Shaft Type D-Cut
IP Rating 40
