Anti-backlash Screw Nut Nema 17 External Linear Stepper Motor actuator 1.8 Deg 32Ncm 48mm Stack 0.4A Lead 2mm/0.07874" Lead Screw 300mm

Anti-backlash Screw Nut Nema 17 External 48mm Stack 0.4A Lead 2mm/0.07874" Length 300mm

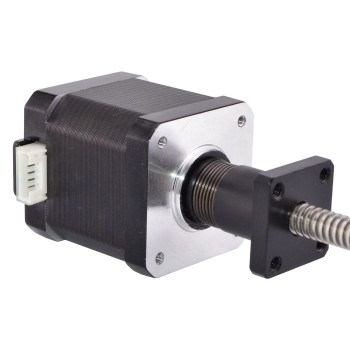

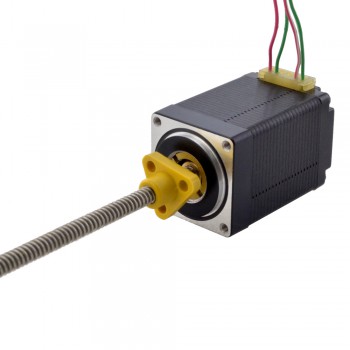

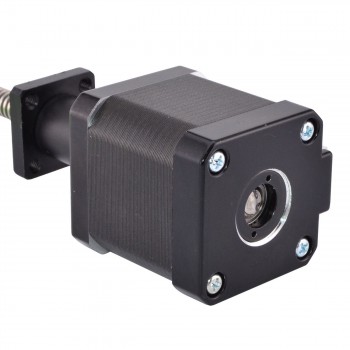

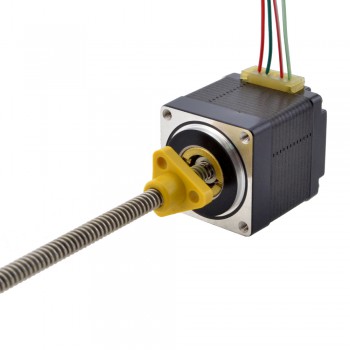

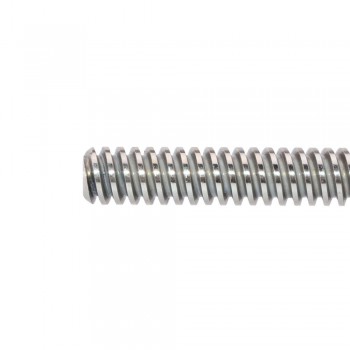

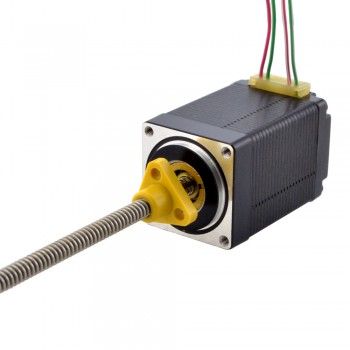

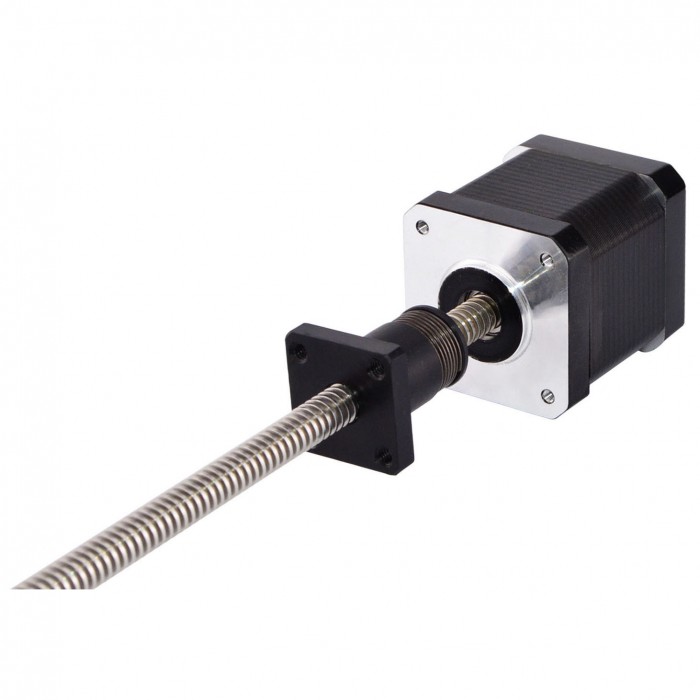

This nema 17 linear stepper motor with Anti-backlash screw nut, the motor part is 12V 0.4A 48mm 1.8 degree 6 wires Nema 17 stepper motor. It was integrated with 300mm Tr8x2 threaded rod and a Anti-backlash screw nut move along the threaded rod.

Electrical Specification

Manufacturer Part Number: 17E19S0406AB-300RA

Motor Type: External Linear Stepper

Step Angle: 1.8 deg

Holding Torque: 32Ncm(36.24oz.in)

Rated Current/phase: 0.4A

Phase Resistance: 30 ohms

Voltage: 12V

Inductance: 25mH ± 20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm

Body Length: 48mm

Lead Screw Length: 300mm(11.811")

Lead Screw Diameter: Φ8mm(0.315")

Lead/Step: 0.01mm(0.0003937")

Lead/Revolution: 2mm(0.0787")

Number of Leads: 6

Lead Length: 400mm

Weight: 400g

Connection

Resources

• Full Datasheet:17E19S0406AB-300RA.pdf

Lead Screw End Machining

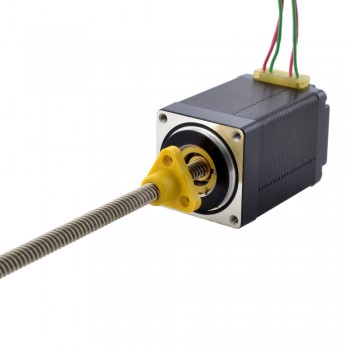

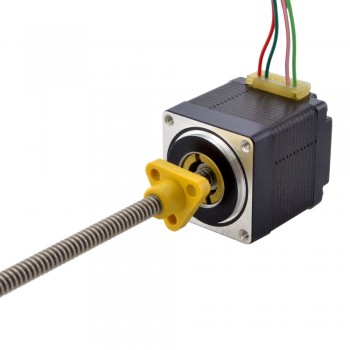

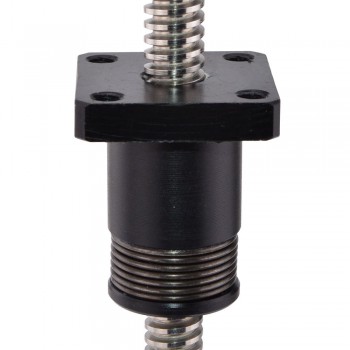

Anti-Backlash Nut

OYOSTEPPER provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).

There should be a nominal backlash between lead screw and OYOSTEPPER standard plastic nut after millions of cycles. OYOSTEPPER guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, OYOSTEPPER provides spring pressure structure of anti-backlash nut.

Encoders

According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.

Also various resolution can be chosen freely for easier and precise positioning.

All OYOSTEPPER standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.

Brakes

Especially Vertical applications or holding motors from sudden power-off status, OYOSTEPPER standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

Wiring, Cabling and Connectors

Flying wire leads or connectors

Twisting wire leads

Heat shrink or expandable tubing

Cable housings

Teflon Coated Screw

If customer's applications require greaseless screw and nut combination, OYOSTEPPER offers teflon coated lead screw of stepper linear actuator.

Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.

Teflon coating can be applied in the whole range of lead screw options in OYOSTEPPER and all types of linear actuators such as External, Non-Captive, and Captive.

In addition, Anti-backlash nut also can be combined with teflon coated screw too.
