Nema14 Closed Loop Stepper Motor 1.8 Deg 12.5Ncm 1.0A 2 Phase with Magnetic Encoder 1000PPR(4000CPR )

NO.:14HS11-1004-ME1K
Post a review

Special Offer in April 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till April 30th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$21.37

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$20.30	5%
10	$19.87	7%
50	$19.23	10%
100	$18.59	13%

Affiliate Link

Description Specification Custom Options Review

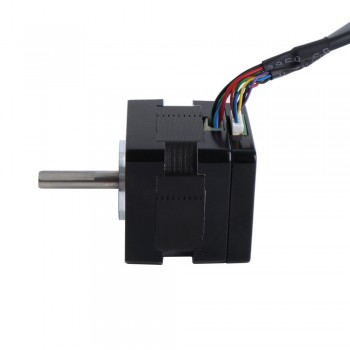

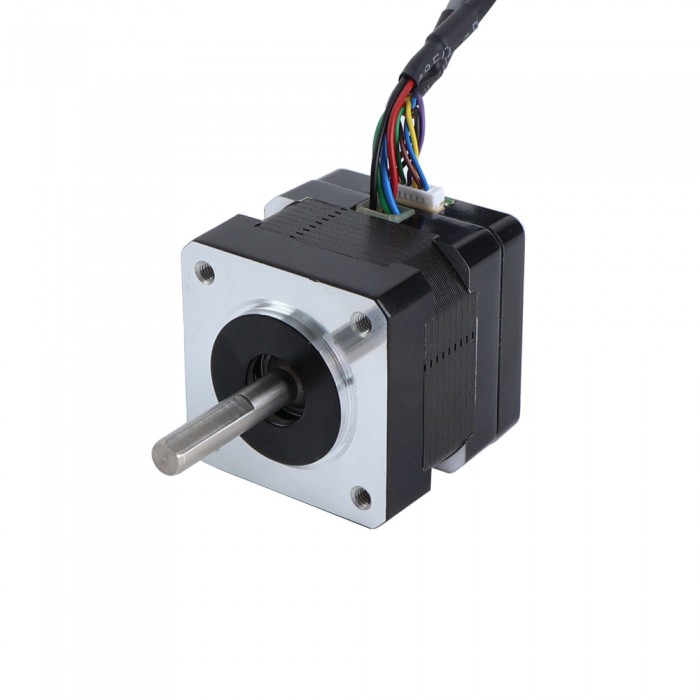

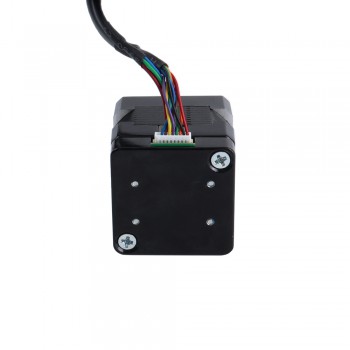

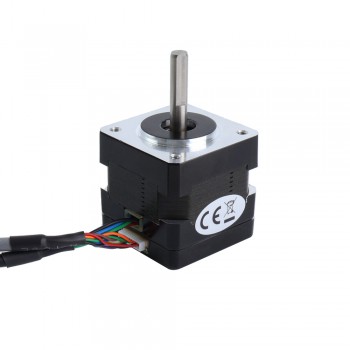

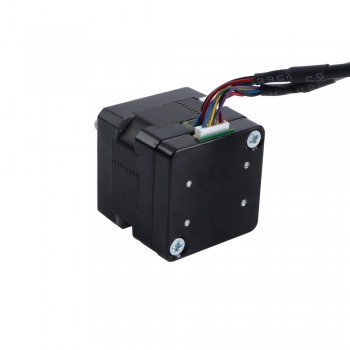

Nema 14 Closed Loop Stepper Motor 12.5Ncm/17.73oz.in with Magnetic Encoder 1000PPR(4000CPR)

This is the thinnest closed loop stepper motor we have, it only with 34.5mm thickness include encoder. The encoder is a magnetic encoder with 3 channels and 1000PPR(4000CPR) resolution. The biggest advantage for magnetic encoder is the size and cost, they are widely used in small space and higher cost performance.

Electrical Specification

Manufacturer Part Number: 14HS11-1004-ME1K

Number of phase: 2

Step Angle: 1.8deg

Holding Torque: 12.5Ncm(17.73oz.in)

Rated Current/phase: 1.0A

Phase Resistance: 3.5ohms± 10%

Inductance: 3.5mH ± 20%(1KHz)

Physical Specification

Frame Size: 35 x 35mm

Body Length: 28mm

Shaft Diameter: Φ5mm

Shaft Length: 24mm

D-CUT Shaft Length: 15mm

Lead Length: 500mm

Encoder Specification

Output Circuit Type: Differential

Encoder Type: Magnetic Incremental

Encoder Resolution: 1000PPR(4000CPR)

Output Signal Channels: 3 channels

Supply Voltage Min: 3.3V

Supply Voltage Max: 5.5V

Output Current: 20mA

Output High Voltage: 5V

Output Low Voltage: 0.2V

Output Frequency Max: 400kHZ

Motor and Encoder Connection

Motor	A+	A-	B+	B-
Wire	RED	BLK	YEL	BLU

Encoder	VCC	EGND	EA+	EA-	EB+	EB-	EZ+	EZ-
Wire	Red	Black	Brown	Orange	Blue	Green	Yellow	White

Resources

14HS11-1004-ME1K.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: AWG #20 High-flexible with Shield Layer Stepper Motor Connector Cable CNC Extension Cable
Next: 400W AC Servo Motor Kit 3000rpm 1.27Nm with Servo Driver &17-Bit Encoder IP65 E6 Series

Electrical Specification
Holding Torque (Ncm)	12.5
Inductance(mH)	3.5
Phase Resistance(ohm)	3.5
Rated Current (A)	1
Encoder Type	Magnetic Incremental
Output Circuit Type	Differential type
Encoder Resolution	1000PPR(4000CPR)
Output Signal Channels	3
Physical Specification
Body Length(mm)	28
Frame Size(mm)	Nema 14 (35 x 35)
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Product Type	Closed Loop Stepper Motor
IP Rating	40
