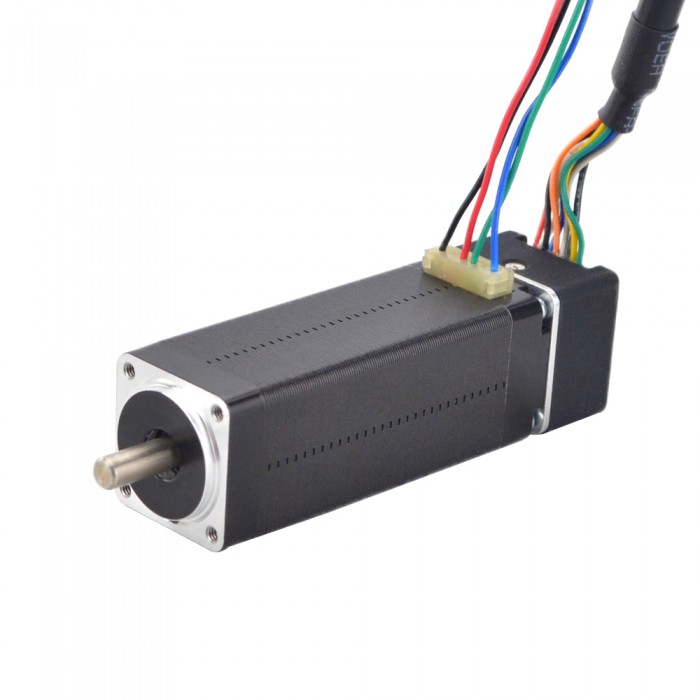

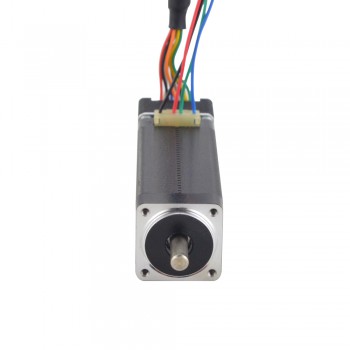

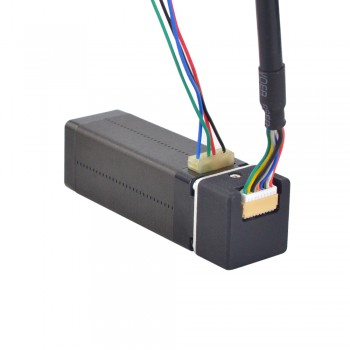

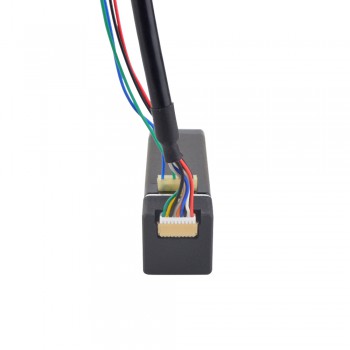

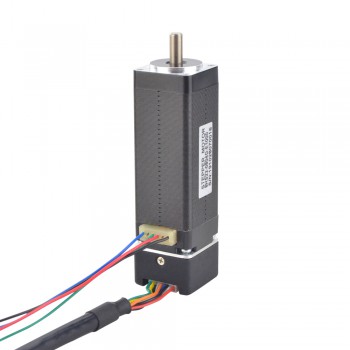

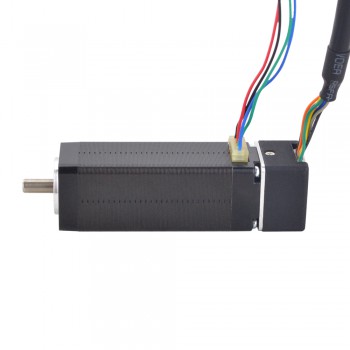

Nema 8 Closed Loop Stepper Motor 0.054 Nm/7.65oz.in Encoder 1000CPR

NO.:8HS22-0804D-E1000
Review: Post a review
Latest price:$112.79
Buy It Now:$86.76
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$83.14 $79.52 $75.91 $72.30
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 8HS22-0804D-E1000
  • Number of phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 0.054 Nm(7.65oz.in)
  • Rated Current/phase: 0.8 A
  • Phase Resistance: 8.5 ohms± 10%
  • Inductance: 5.6 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 20 x 20 mm
  • Body Length: 55 mm
  • Shaft Diameter: Φ4 mm
  • Shaft Length: 10 mm
  • Lead Length: 300 mm
  • Weight:123g

Encoder Specification

  • Driving Voltage : 5V
  • Output current : 55mA
  • Resolution : 1000ppr
  • Output Signal : 2 Channels
  • Bore Diameter : Φ8mm
  • Output Frequency : ≤1MHz
  • Running Speed : ≤5000rpm
  • IP Protection : IP20

Connection

A+
A-
B+
B-
BLK
GRN
RED
BLU



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 Closed-loop Geared Stepper 3 Phase L=52mm Gear Raio 14:1 Encoder 300CPR
Next: Nema 11 Closed Loop Stepper Motor 0.1Nm/14.16oz.in Encoder 1000CPR
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 5.4
Holding Torque (oz.in) 7.65
Inductance(mH) 5.6
Lead Length(mm) 300
Motor Nema Size Nema 8
No. of Lead 4
Phase Resistance(ohm) 8.5
Rated Current (A) 0.8
Shaft Diameter(mm) 4
Shaft Length(mm) 10
Step Angle(°) 1.8
Encoder Specification
Output Current(mA) 55
Output Frequency ≤1MHz
Output Signal Channels 2
Rated Voltage(V) 5
Resolution(CPR) 1000
