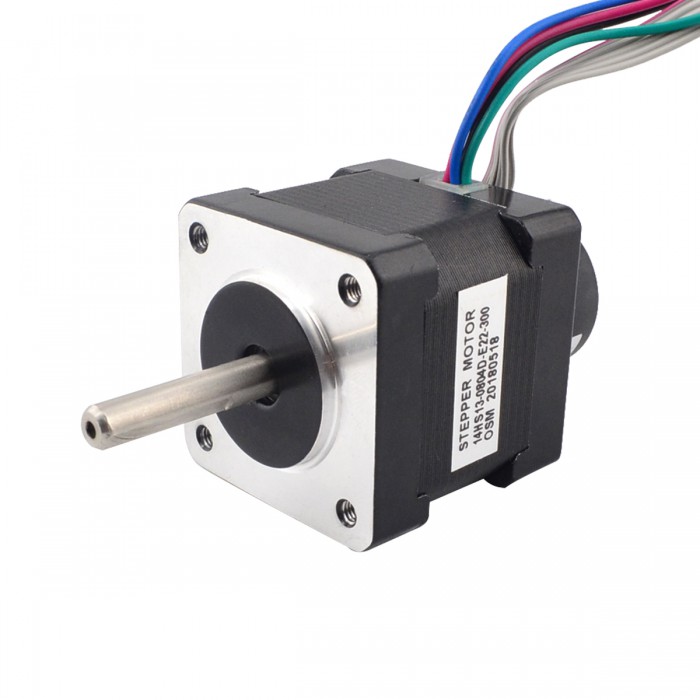

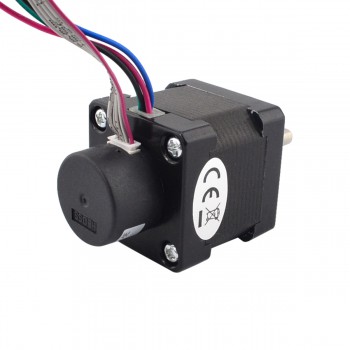

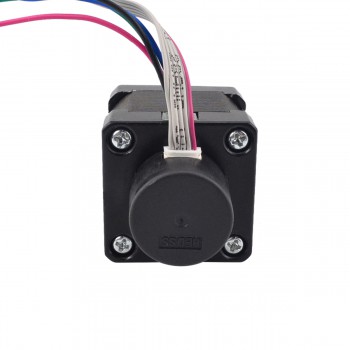

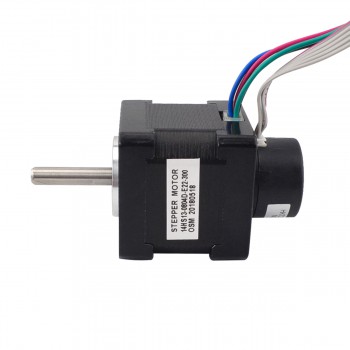

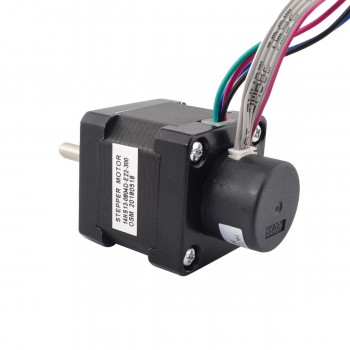

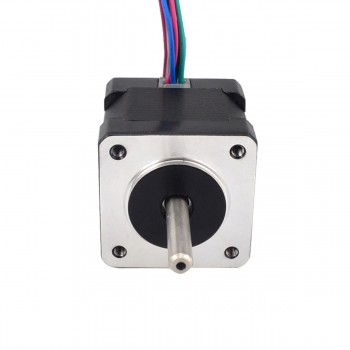

Nema 14 Closed Loop Stepper Motor 18Ncm/25.5oz.in Encoder 300CPR

NO.:14HS13-0804D-E22-300
Review: Post a review
Black Friday Special Offer 2020:
  • 6% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid Till 3rd December, 2020
Latest price:$57.19
Buy It Now:$43.99
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$41.89 $39.80 $37.70 $35.62
Add To Cart

Motor Specification

  • Manufacturer Part Number: 14HS13-0804D-E22-300
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 0.18Nm(25.495oz.in)
  • Rated Current/phase: 0.80A
  • Voltage: 5.40V
  • Phase Resistance: 6.80ohms
  • Inductance: 10.00mH ± 20%(1KHz)
  • Frame Size: 35 x 35mm
  • Motor Length: 34mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-Cut Length: 16.5mm
  • Number of Leads: 4
  • Lead Length: 500mm

Encoder Specification

  • Driving Voltage : 5VDC
  • Output current : ≤20mA
  • Resolution : 300ppr
  • Output Signal : 2 Channels
  • Shaft Diameter : Φ5mm
  • Output Frequency : ≤30KHz
  • Output Low Voltage: ≤0.3VDC
  • Output High Voltage: ≥3.4VDC

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 11 Closed Loop Stepper Motor 12Ncm/17oz.in Encoder 300CPR
Next: Nema 14 Closed Loop Stepper Motor 40Ncm/56.7oz.in Encoder 300CPR
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 14
Holding Torque (oz.in) 19.83
Inductance(mH) 4.5
Lead Length(mm) 500
Motor Nema Size Nema 14
No. of Lead 4
Phase Resistance(ohm) 3.2
Rated Current (A) 0.8
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Step Angle(°) 1.8
Encoder Specification
Output Current(mA) 20
Output Frequency ≤30KHz
Output Signal Channels 2 Channels
Rated Voltage(V) 5
Resolution(CPR) 300
Output High Voltage(VDC) ≥3.4
Output Low Voltage(VDC) ≤0.3
