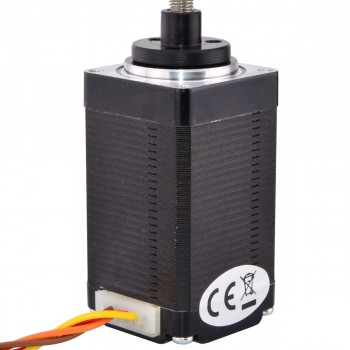

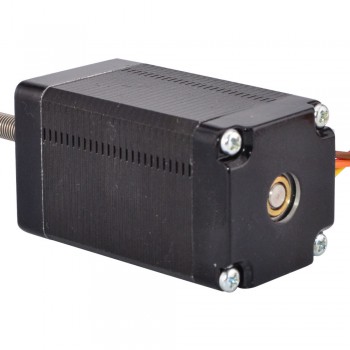

Nema 11 External 51mm Stack 0.67A Lead 2mm/0.07874" Length 100mm

Nema 11 External 51mm Stack 0.67A Lead 2mm/0.07874" Length 100mm
NO.:11LS20-0674E-100B
Post a review
Special Offer in June 2023:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 10th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$41.74
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $39.65 5%
10 $38.82 7%
50 $37.57 10%
100 $35.48 15%
Add To Cart

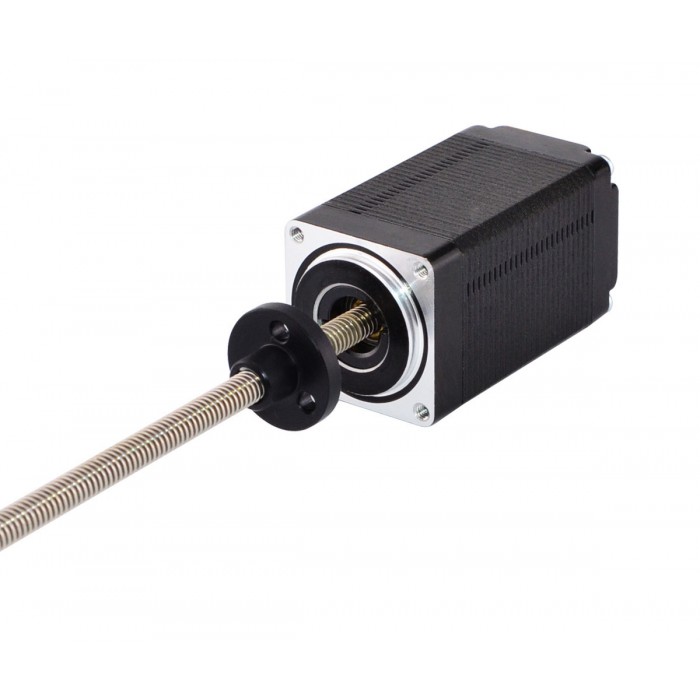

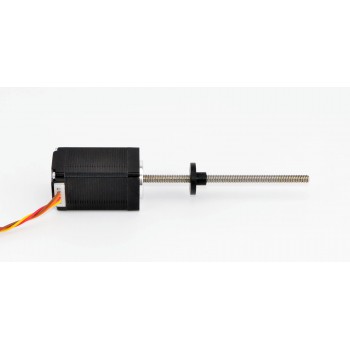

This model is economy linear stepper motor which named Nema 11 external linear actuator, the motor part is 56mm 1.8 degree 2A Nema 23 stepper motor. It was integrated with 100mm Tr5x2 threaded rod and a POM screw nut move along the threaded rod.

Electrical Specification

  • Manufacturer Part Number: 11LS20-0674E-100B
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 12.0Ncm(17oz.in)
  • Rated Current/phase: 0.67A
  • Phase Resistance: 9.2ohms
  • Voltage: 6.2V
  • Inductance: 5.7mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 51mm

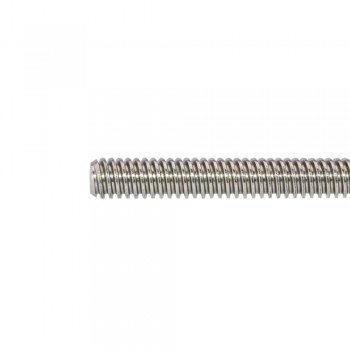

  • Lead Screw Length: 100mm(3.937")
  • Lead Screw Diameter: Φ5mm(0.1969")
  • Lead /Step: 0.01mm(0.0003937" )
  • Lead/Revolution: 2mm(0.0787")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 220g

Connection

A+
A-
B+
B-
Red
Brown
Yellow
Orange



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 11 External 51mm Stack 0.67A Lead 0.635mm/0.025" Length 100mm
Next: Nema 11 Non-captive 51mm Stack 0.67A Lead 2mm/0.07874" Length 100mm
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 12
Holding Torque (oz.in) 17
Inductance(mH) 5.7
Motor Type External
Phase Resistance(ohm) 9.2
Rated Current (A) 0.67
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 51
Frame Size(mm) 28x28
Lead Screw Diameter(mm) 5
Lead Screw Length(mm) 100
Lead Revolution(mm) 2
Linear Travel / Step(mm) 0.01
No. of Lead 4
Lead Length(mm) 304
