Nema 23 Economy Linear Stepper Motor External Bipolar 1.8 Deg 1.3Nm 3.0A 3.3V Lead Lead Revolution Screw 150mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
Promotion price:$46.57

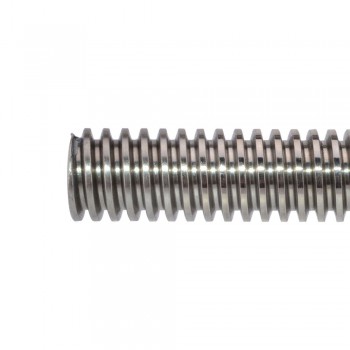

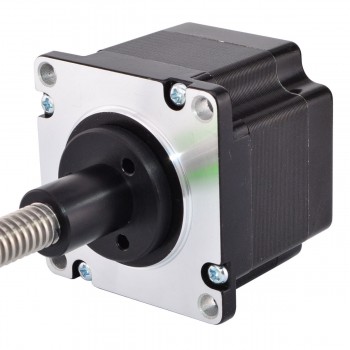

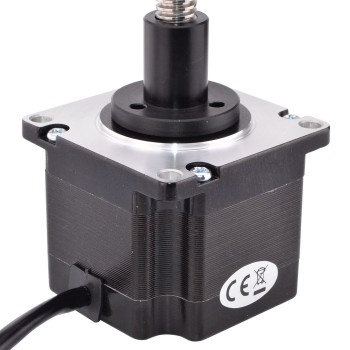

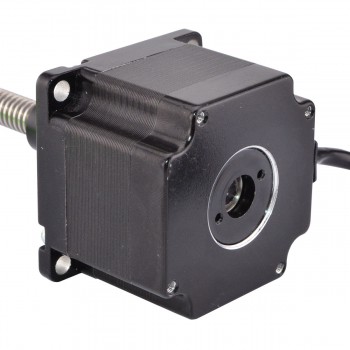

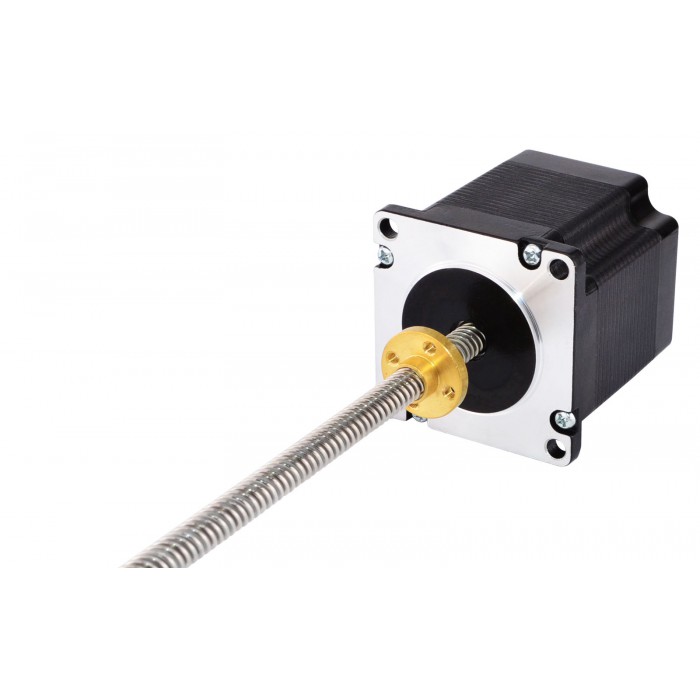

This model is economy linear stepper motor which named Nema 23 external linear actuator, the motor part is 56mm 1.8 degree 3A Nema 23 stepper motor. It was integrated with 150mm Tr8x8 threaded rod, and a Brass screw nut move along the threaded rod.
Electrical Specification
Manufacturer Part Number: 23LS22-3004E-150G
Motor Type: Bipolar Stepper
Holding Torque: 1.3Nm
Rated Current/phase: 3.0A
Phase Resistance: 1.1ohms
Voltage: 3.3V
Inductance: 3.2mH ± 20%(1KHz)
Physical Specification
Frame Size: 57 x 57mm
Motor Length: 56mm
Lead Screw Length: 150mm（5.9055"）
Lead Screw Diameter: Φ11mm（0.433"）
Lead /Step: 0.04mm(0.0015748" )
Lead/Revolution: 2mm（0.0787"）
Number of Leads: 4
Lead Length: 500mm
Weight : 650g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 23LS22-3004E-150G.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 130 |
| Holding Torque (oz.in) | 184 |
| Inductance(mH) | 3.2 |
| Motor Type | External |
| Phase Resistance(ohm) | 1.1 |
| Rated Current (A) | 3 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 56 |
| Lead Screw Diameter(mm) | 8 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 8 |
| Linear Travel / Step(mm) | 0.04 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Frame Size(mm) | Nema 23 (57 x 57) |
