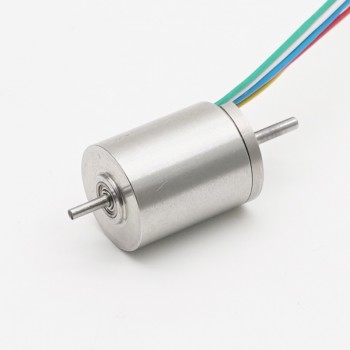

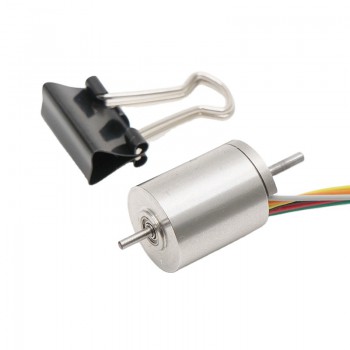

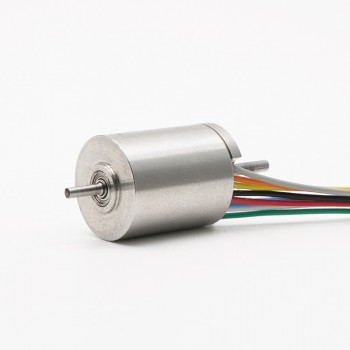

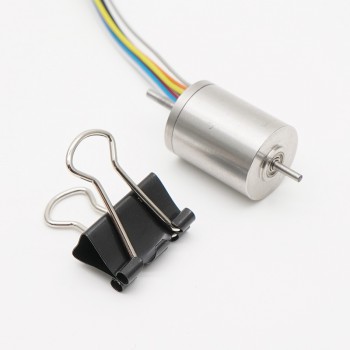

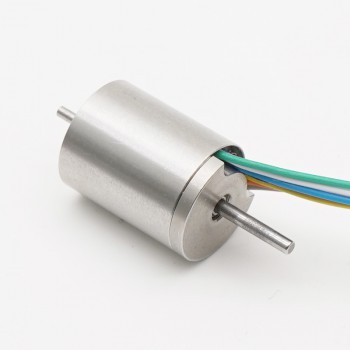

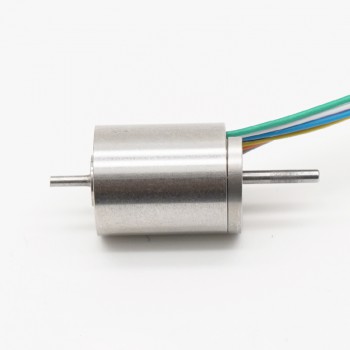

2Pcs 5V 7.4V DC Coreless Brushless Motor PM DC Motor High Speed 12*15mm 4g.cm

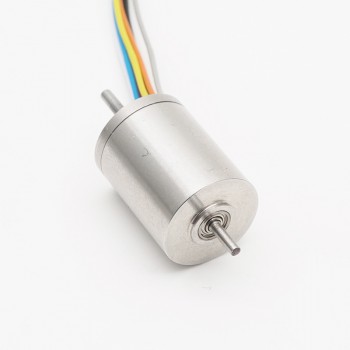

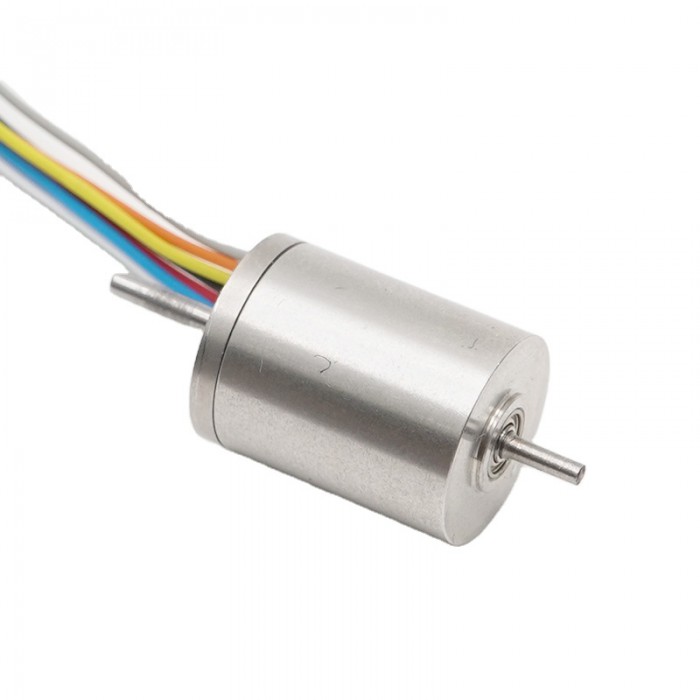

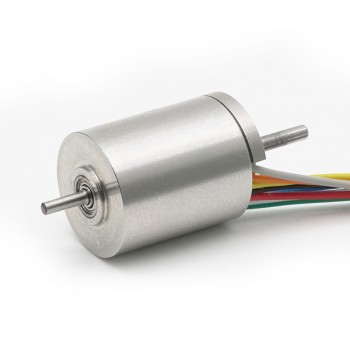

2Pcs Φ12mm 5/7.4V Brushless Coreless DC Motor TBC1215 4g.cm 0.8W Shaft Diameter 1.2mm

Features:
1. Large diameter: The diameter of this motor is 36 mm, which is relatively large compared to other similar motors. This allows it to provide greater torque and power output.
2. High voltage: The motor is designed to accept 24V or 36V DC power input. This high voltage input can provide higher efficiency and torque output.
3. Brushless motors: Compared with traditional brushless motors, brushless motors have higher efficiency, longer service life and lower noise levels. They are usually suitable for applications that require long running times and high loads.
4. Core-free design: Core-free design can reduce the weight and size of the motor and improve efficiency. In addition, it can reduce hysteresis loss and eddy current loss, thereby improving the efficiency and performance of the motor.
5. Can be equipped with gear reducer: gear reducer can convert the high speed of the motor into low speed and high torque output. This design can improve the load capacity and operation stability of the motor.

Application:
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME.

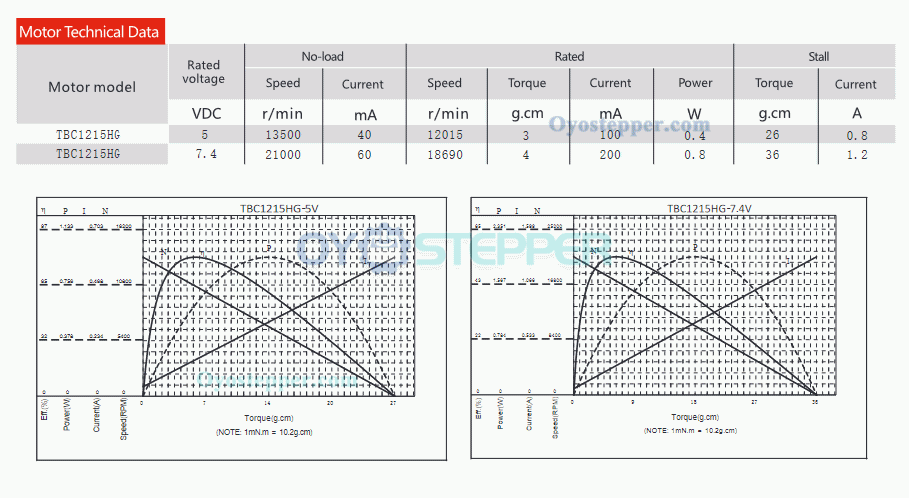

Electrical Specification：
Part Number:TBC1215
Rated Voltage:5V / 7.4V
Rated Speed:12000rpm(5v) / 18000rpm(7.4v)
Continuous Current:40-200mA
Rated Torque:3g.cm / 4g.cm
Rated Power:0.4W(5V) / 0.8W(7.4V)
Encoder:1-1024ppr
Motor type:Brushless
Noise:30cm.40-50DB
Efficiency:IE 2;

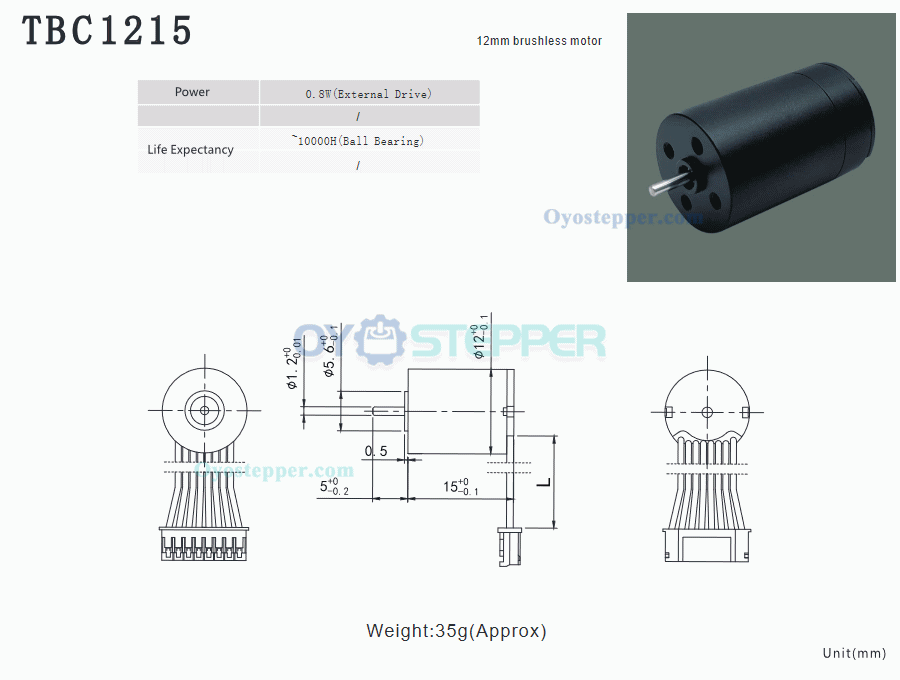

Physical Specification:
Motor Size:12*15mm
Motor Diameter:12mm
Length:15mm
Shaft Length:5.1mm
Shaft Diameter:1.2mm
Weight:35g;

Resources

TBC1215.pdf
