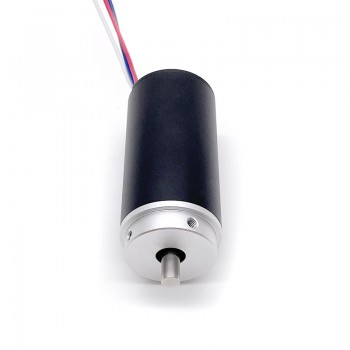

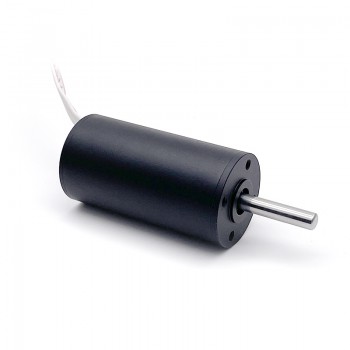

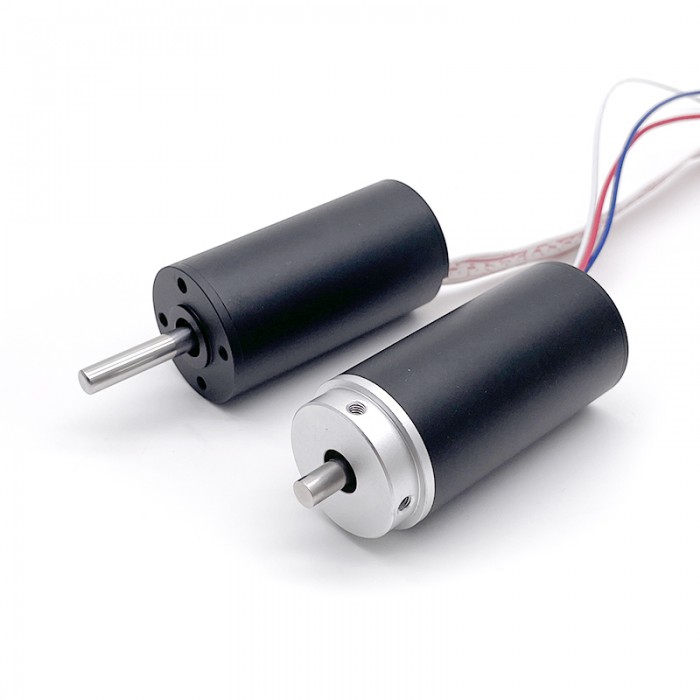

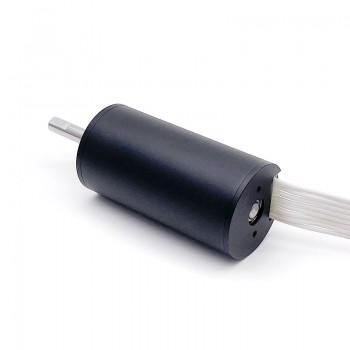

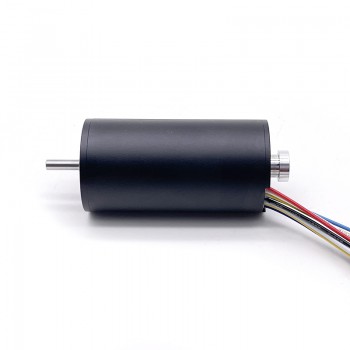

24V High Torque DC Coreless Brushless Motor with Planetary Gearbox 22mm Diameter

Videos

24V High Torque DC Coreless Brushless Motor with Planetary Gearbox 22mm Diameter

Features:
1. The characteristic curve is flat, and it can operate normally at all speeds under load rating conditions.
2. Due to the usage of a permanent magnet rotor, the power density is high while the volume is modest.
3. Low inertia and improved dynamic qualities
4. Grade, no special starting circuit.A controller is always required to keep the motor going. You may also use this controller to control the speed.
5. The frequency of stator and rotor magnetic fields is equivalent

Application:
Neck beauty device, facial cleansing device, wall breaking machine, Industrial equipment.

Electrical Specification：
Part Number:TBC3242
Rated current:2.5A
Rated Voltage:24V
No-load speed: 6500RPM
Rated Torque:0.05kg.cm
Rated Power:50W
Motor type:Brushless
Efficiency:75%
Noise:30cm.40-50DB

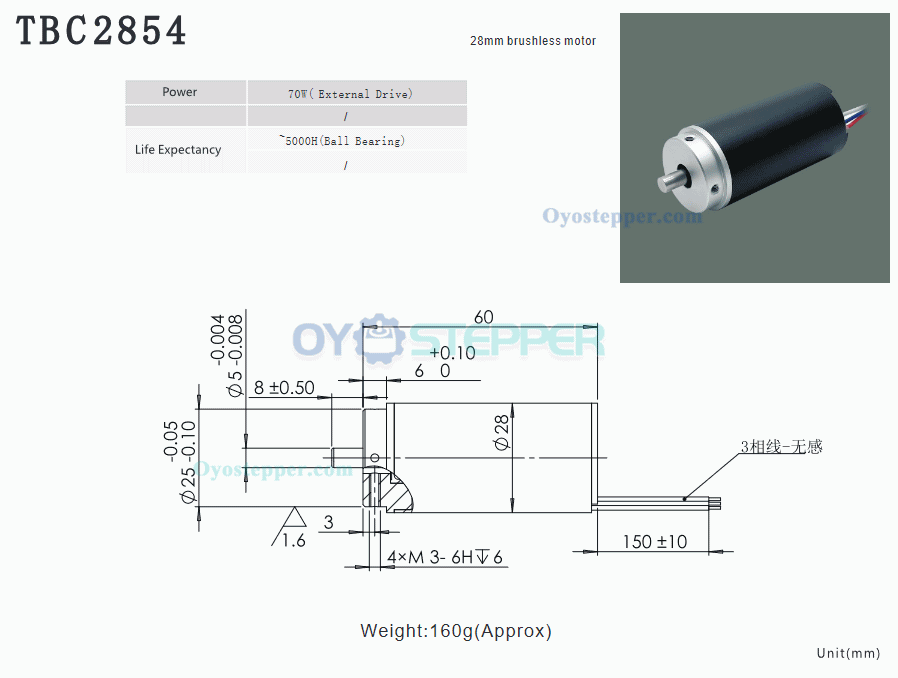

Physical Specification:
Motor Size:28*54 mm
Motor Diameter:28mm
Length:54mm
Shaft Length:8mm
Shaft Diameter:5mm
Weight:160g;

Resources

• TBC2854.pdf
