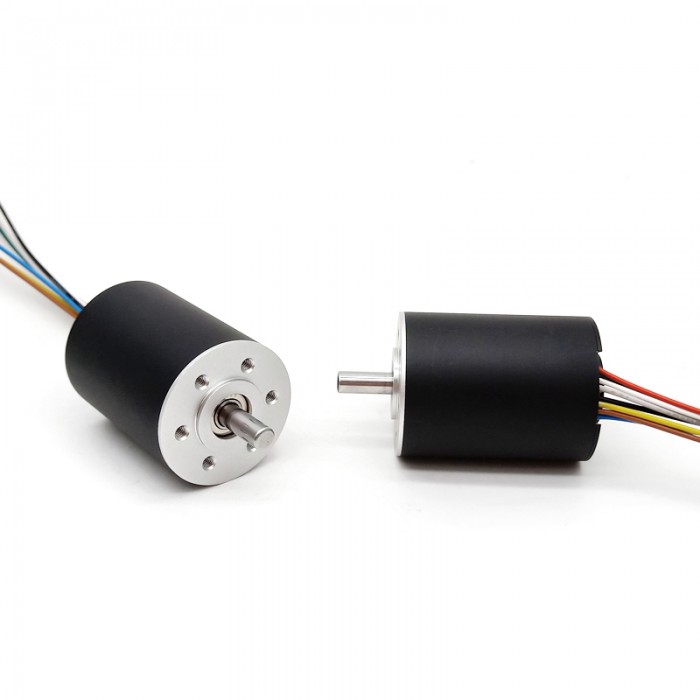

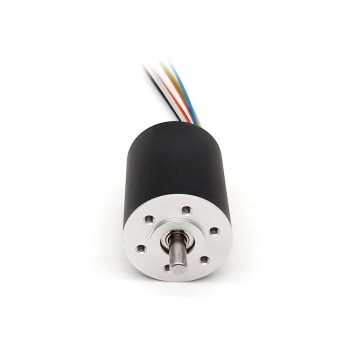

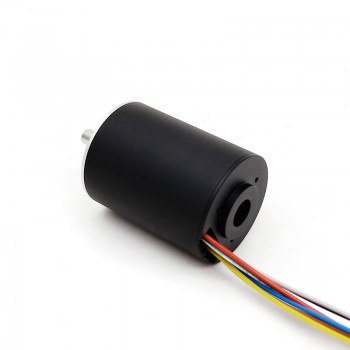

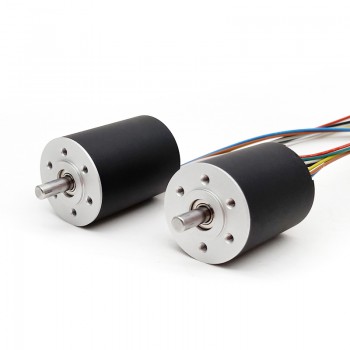

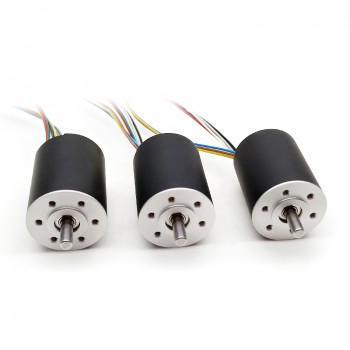

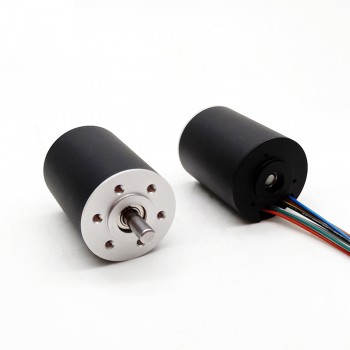

2Pcs 12V 24V DC Coreless Brushless Motor 12mm High Speed Coreless BLDC Motor
Application:
BOAT, Car, Electric Bicycle, Home Appliance, Cosmetic instrument, SMART HOME, Industrial equipment.

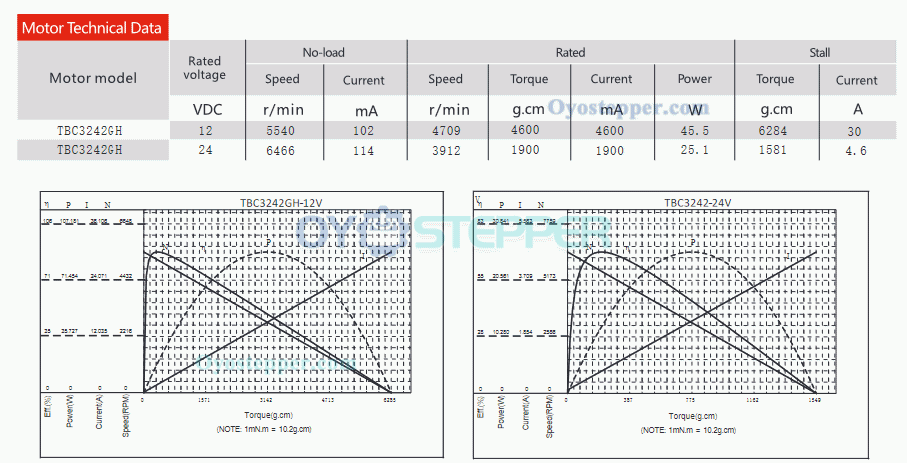

Electrical Specification：
Part Number:TBC3242GH
Rated Voltage:12V/24V
Rated Speed:4600RPM(12V) / 1900RPM(24V)
No-load Speed:5500RPM(12V) / 6400RPM(24V)
Rated Current: 4600mA(12V) /1900mA(24V)
Rated Torque: 4600g.cm(12V) /1900g.cm(24V)
Rated Power:45.5W(12V) / 16.6W(24V)
Motor type:Brushless Coreless Motor
Efficiency: IE 1
Noise:30cm.40-50DB

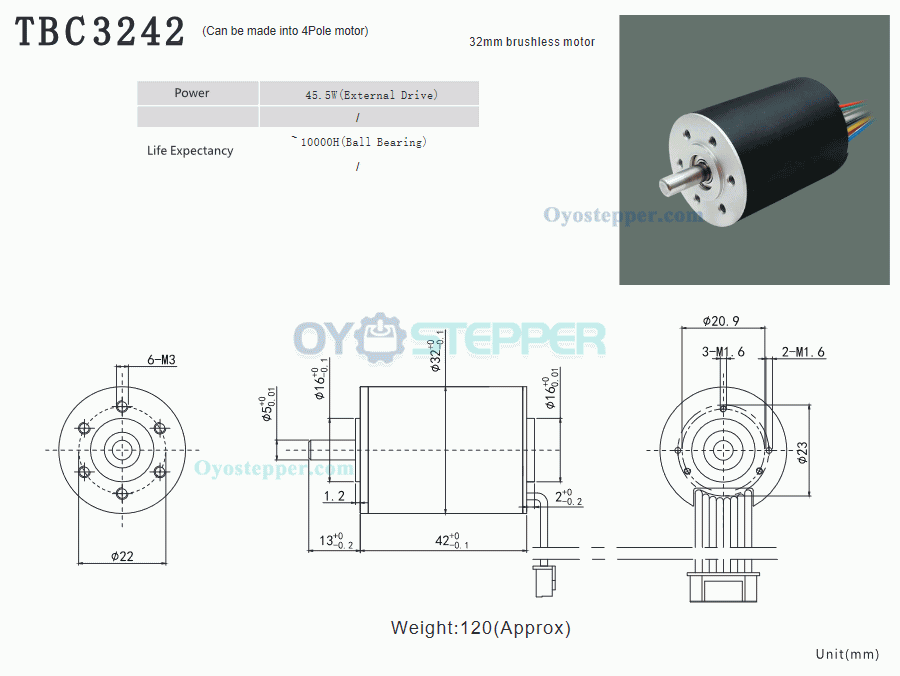

Physical Specification:
Motor Size:32*42mm
Motor Diameter:32mm
Frant Size:Φ32mm
Shaft Length:11.8mm
Shaft Diameter:5mm
Shaft Type:O
Weight:120g;
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Rated Voltage(V) | 24 / 12 |
| Rated Torque(kg.cm) | 1.9 / 4.6 |
| Rated Current (A) | 1.9 / 4.6 |
| Rated Power(W) | 45.5 / 25.1 |
| Rated Speed(rpm) | 3900 / 4700 |
| Physical Specification | |
| Frame Size(mm) | Φ32 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 11.8 |
| Product Type | Brushless Coreless Motor |
| Body Length(mm) | 42 |
| Weight(g) | 120 |
| Shaft Type | O |
| Single Shaft/Dual Shaft | Single Shaft |
