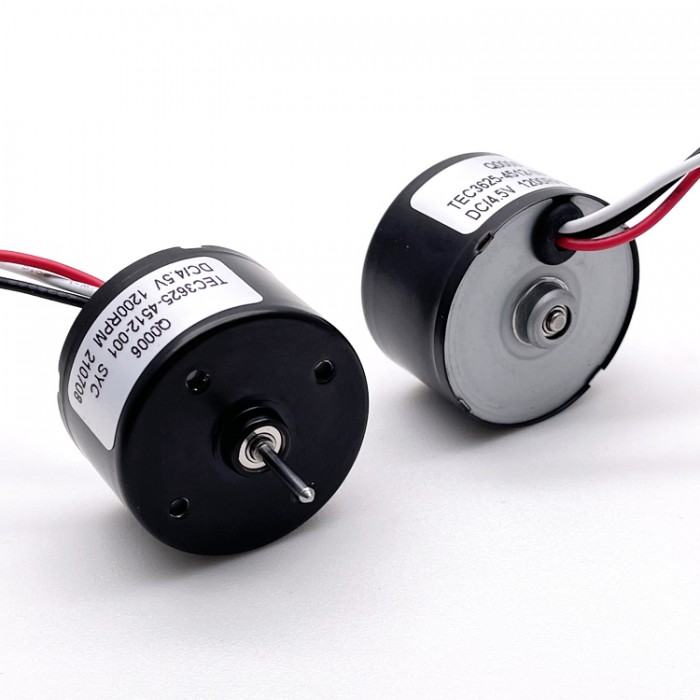

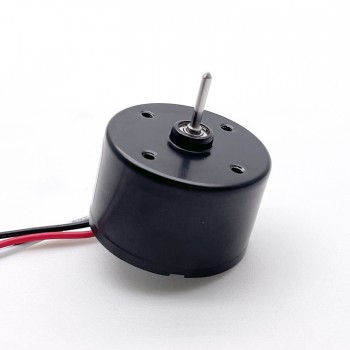

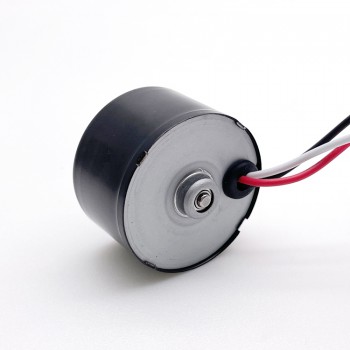

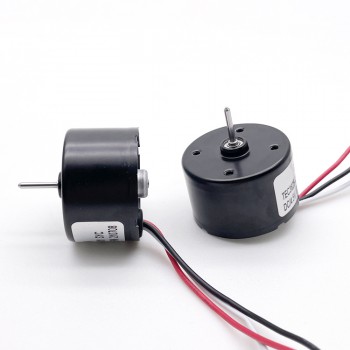

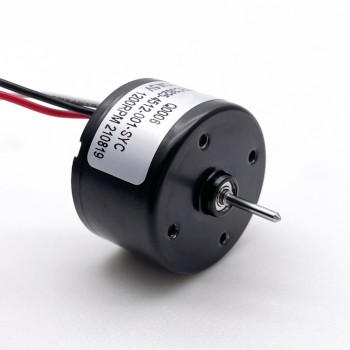

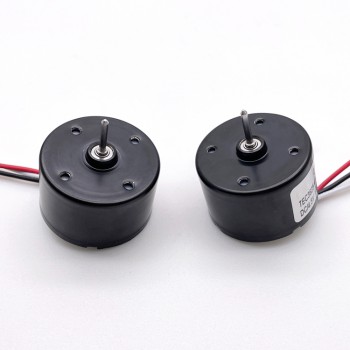

2Pcs 12V 24V Brushless DC Motor High Torque 36mm*25mm 550g.cm 6000RPM

2Pcs 12V 24V Brushless DC Motor High Torque 36mm*25mm 550g.cm 6000RPM
NO.:TEC3625
Post a review
Our Price:$33.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $32.28 5%
30 $31.60 7%
50 $30.58 10%
100 $28.88 15%
Add To Cart



Features:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application
Since it has low interference, low noise, and a long life, brushless dc motors (BLDC motors) have gained popularity. It is paired with a high-precision planetary gearbox based on its reliable performance, which significantly increases the motor's torque and lowers its speed, making it suitable for a variety of application fields.

Application:
Boat, Industrial automation fields.
Options:Lead wires length,Shaft length,Special coils,Gearheads, Bearing type ,Hall sensor,Encoder,Driver.

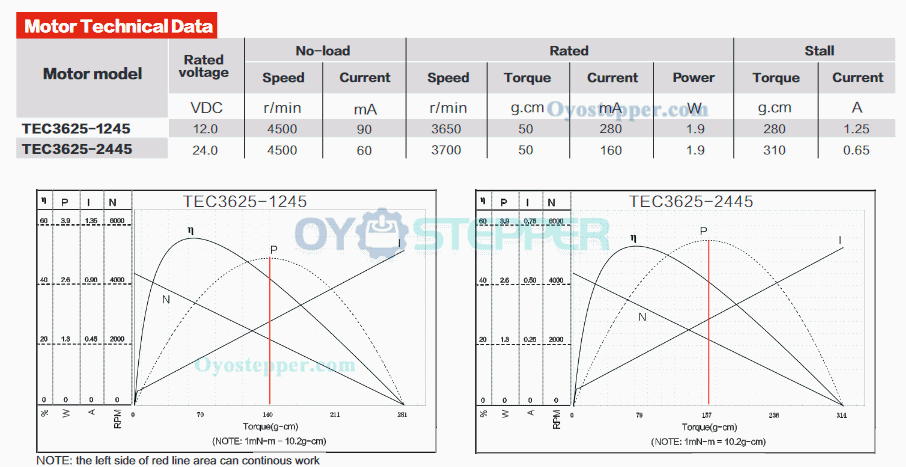

Electrical Specification:
Part Number: TEC3625
Rated Power:1.9W
Rated Voltage:12V/24V
Rated Current(A):280mA(12V) / 160mA(24V)
Rated Torque:50g.cm
Rated Speed:3650rpm(12V)3700rpm(24V)
No Load Speed : 4500RPM
Stall Torque:280g.cm(12V)/310g.cm(24V)
Stall Current:1.25A(12V)/0.65A(24V)
Efficiency:IE 4
Rated Torque:50g.cm
Efficiency: 65%
Noise:30cm.40-50db

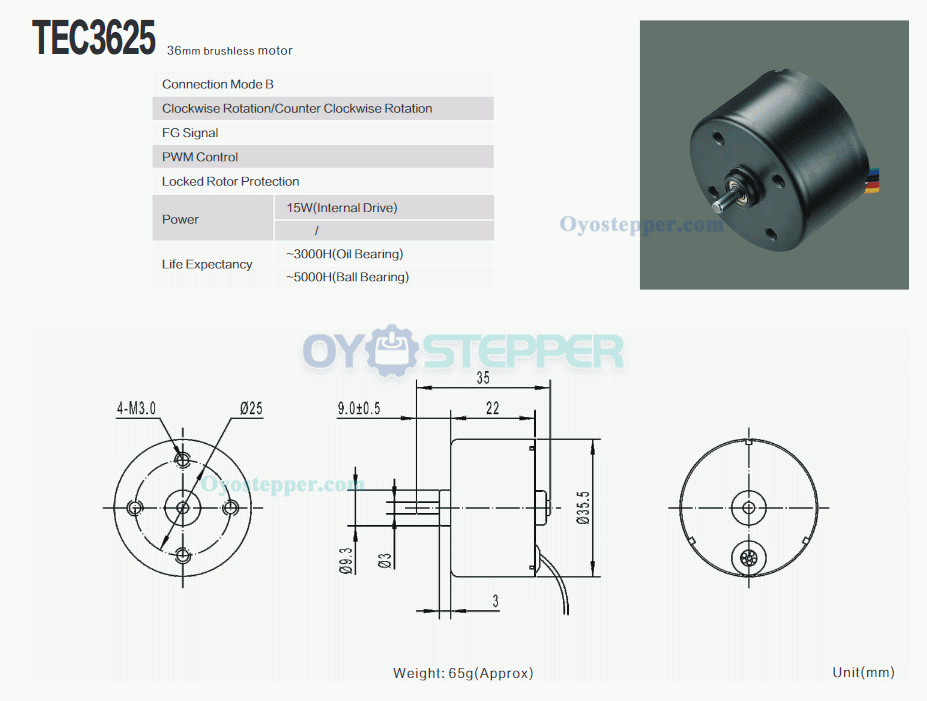

Physical Specification:
Motor Size:Φ35.5mm*22mm
Motor Diameter:35.5mm
Motor Length:22mm
Shaft Type:O
Shaft Diameter:3mm
Shaft Length:6mm
Weight:65g



2Pcs 12V 24V Brushless DC Motor High Torque 36mm*25mm 550g.cm 6000RPM

2Pcs 12V 24V Brushless DC Motor High Torque 36mm*25mm 550g.cm 6000RPM



Resources

TEC3625.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 12V 24V BLDC Brushless Motor High Torque 30mm*40mm 250g.cm 5000RPM
Next: 2Pcs 12V 24V Small Brushless DC Motor BLDC Motor 36*40 mm 6000RPM 550g.cm
Physical Specification
Body Length(mm) 22
Frame Size(mm) Φ35.5
Shaft Diameter(mm) 3
Shaft Length(mm) Worm Gearbox
Shaft Type O
Single Shaft/Dual Shaft Single Shaft
Weight(g) 65
Electrical Specification
Rated Power(W) 1.9
Rated Voltage(V) 12 / 24
Rated Torque(kg.cm) 0.05
Rated Speed(rpm) 3650
Rated Current (A) 0.28 / 0.16
