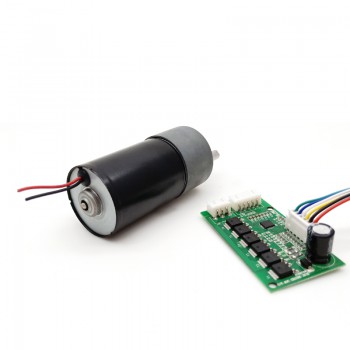

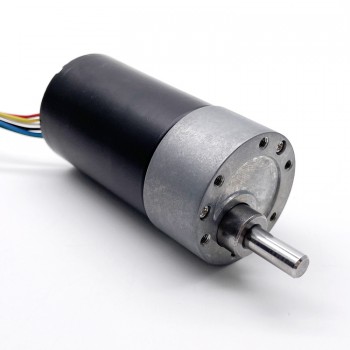

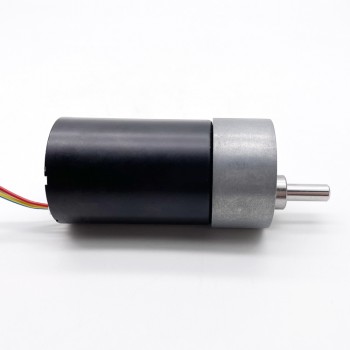

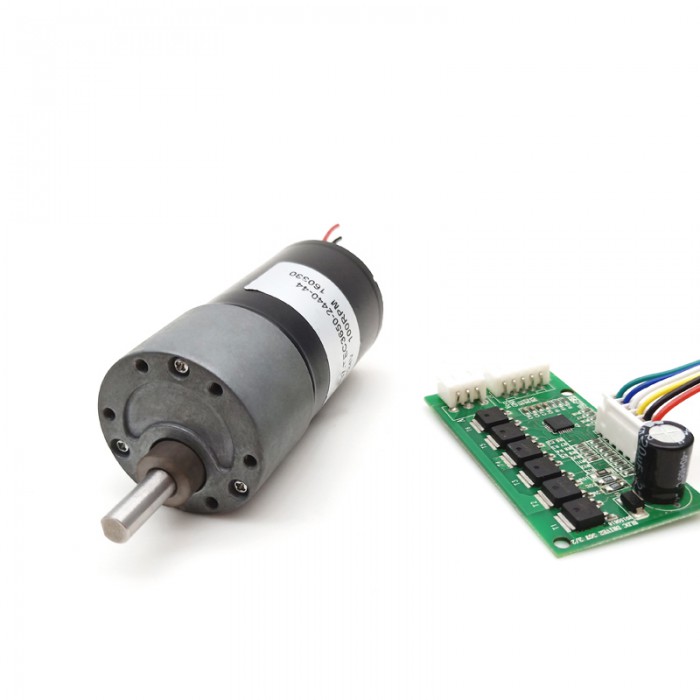

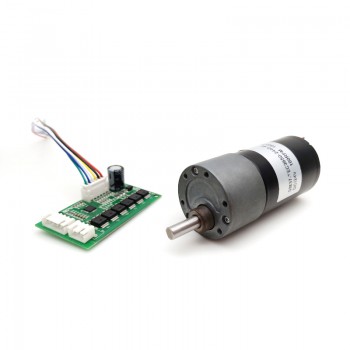

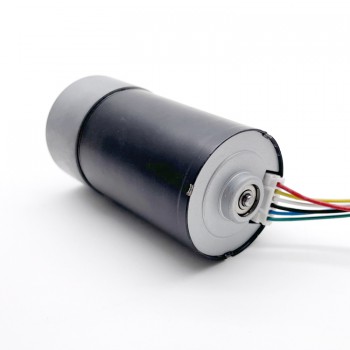

2Pcs 12V 24V Brushless DC Motor with Spur Gearbox High Speed BLDC Motor 4-850RPM 0.7-10kg.cm

2Pcs 12V 24V Brushless DC Motor with Spur Gearbox High Speed BLDC Motor 4-850RPM 0.7-10kg.cm
NO.:GM37-TEC3650
Post a review
Our Price:$47.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $45.58 5%
10 $44.62 7%
50 $43.18 10%
100 $40.78 15%
Add To Cart



Features:
1. Small size dc brushless motor with low speed and big torque.
2. Suitable to small diameter, low noise and big torque application.
3.Equiped with Planetary Gearbox, Compact size, Low noise; The Diameter as small as 12 mm Rated speed as low as 4rpm Torque up to 6000 mNm High torque, low Speed Ability to withstand harsh environments Long service life.
4. Reduction Ratio: 6、10、30、44、57、90、169、270、506、810.

2 stages: 6:1/10:1
3 stages: 30:1
4 stages: 44:1/56:1/90:1
5 stages: 169:1/270:1
6 stages: 506:1/810:1

Application:
Robot,lock,Auto shutter, USB fan,Slot machine,Money detector
Coin refund devices,Currency count machine,Towel dispensers
Automatic doors,Peritoneal machine,Automatic TV rack,
Office equipment ,Household appliances,etc.

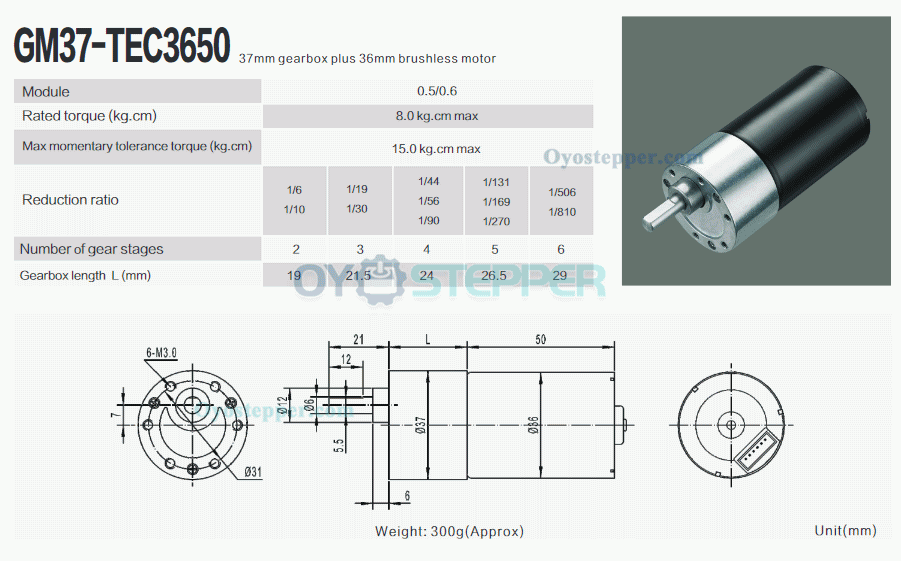

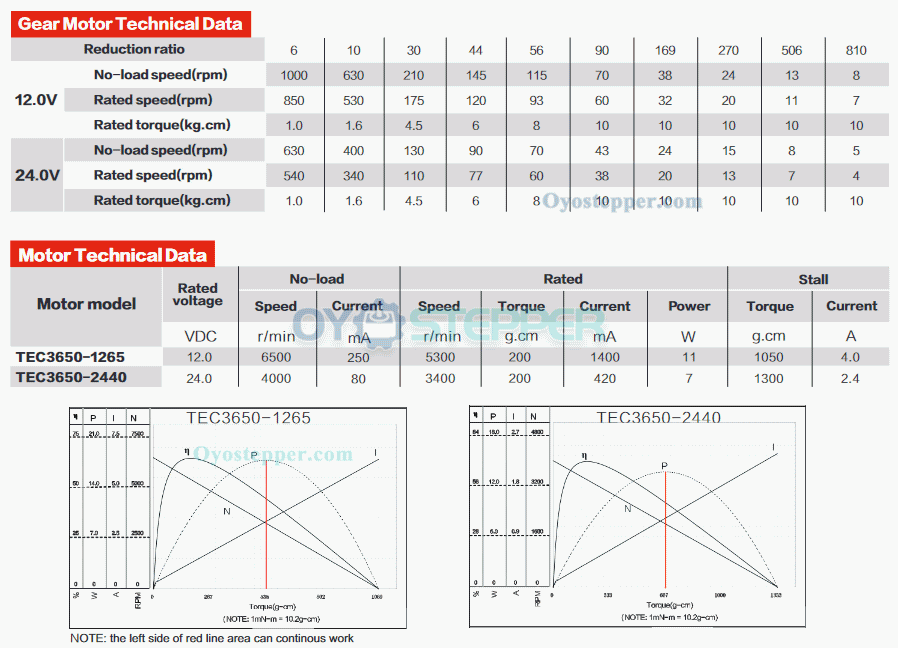

Electrical Specification:
Part Number:GM37-TEC3650
Rated Voltage:12V/24VDC
Rated Torque:8.0Kg.cm max
Max momentary tolerance torque: 15.0kg.cm
Rated current:1400mA(12V)/420mA(24V)
No Load Speed W/O Gearbox: 6500RPM(12V)/4000RPM(24V)
Rated Speed W/O Gearbox: 5300RPM(12V)/3400RPM(24V)
No Load Speed W Gearbox: 5-1000 RPM
Rated Speed W/ Gearbox:4-850 RPM
Rated Power:11W(12V)/7W(24V)
Gear type:Spur gearbox
Type:DC Spur Gear Motor
Noise:30cm.40-50db

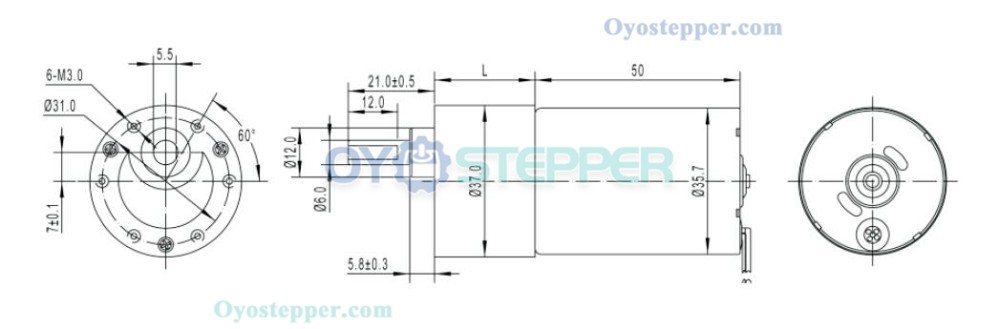

Physical Specification:
Motor Size:Φ35.7*50.0mm
Motor Diameter: 35.7mm
Gearbox Diameter:Φ37
Gearbox Length:19mm/21.5mm/24mm/26.5mm/29mm
Length:30.8mm+Spur gearbox
Shaft Type:D-cut
D-cut Diameter:5.5mm
D-cut Length:12mm
Shaft Diameter:6mm
Shaft Length:15mm
Weight:300g;

2Pcs 12V 24V Brushless DC Motor with Spur Gearbox High Speed BLDC Motor 4-850RPM 0.7-10kg.cm

2Pcs 12V 24V Brushless DC Motor with Spur Gearbox High Speed BLDC Motor 4-850RPM 0.7-10kg.cm

2Pcs 12V 24V Brushless DC Motor with Spur Gearbox High Speed BLDC Motor 4-850RPM 0.7-10kg.cm



Resources

GM37-TEC3650.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 12V 24V DC Geared Motor BLDC Brushless Geared Motor with Spur Gearbox 0.2-5kg.cm
Next: 2Pcs 3.7V Micro Coreless Brushed DC Planetary Geared Motor 0.25A 0.12kg.cm 1.5W 12mm
Electrical Specification
Rated Power(W) 11 / 7
Rated Current (A) 1.4 / 0.42
Rated Voltage(V) 12 / 24
Rated Torque(kg.cm) 8
Rated Speed(rpm) 4-850
Physical Specification
Body Length(mm) 50+gearbox
Frame Size(mm) Φ37
Shaft Diameter(mm) 6
Shaft Length(mm) 15
Shaft Type D-cut
Single Shaft/Dual Shaft Single Shaft
Weight(g) 300
Gearbox Length(mm) 19 / 21.5 / 24 / 26.5 / 29
Gearbox Type Spur gearbox
Gear Ratio 6:1 / 10:1 / 30:1 / 44:1 / 56:1 / 90:1 / 169:1 / 270:1 / 506: / 810:1
Product Type DC Spur Gear Motor
