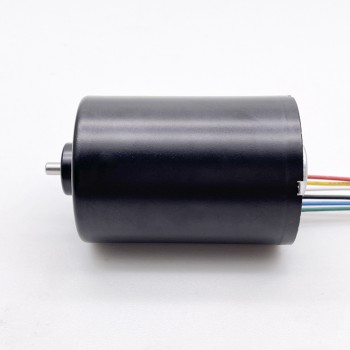

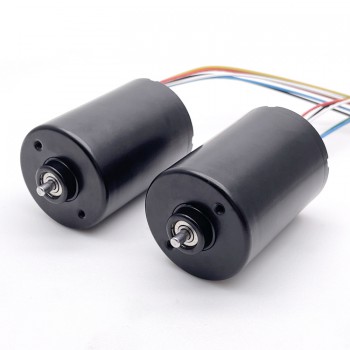

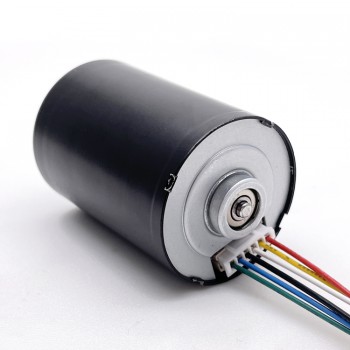

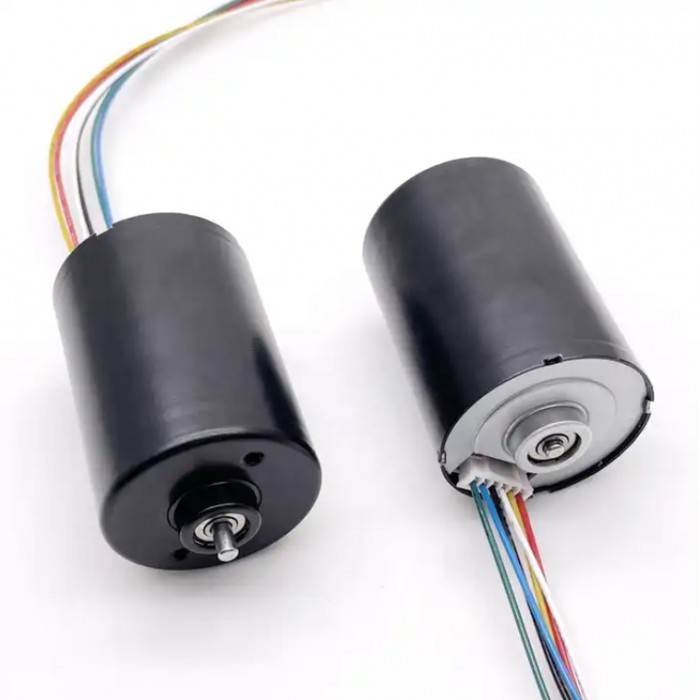

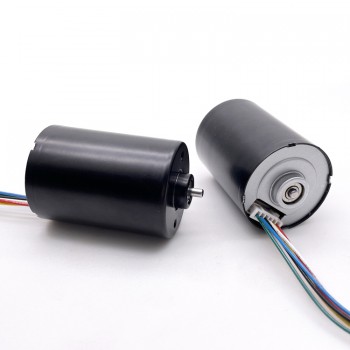

2Pcs 12V 24V High Torque Brushless DC Motor BLDC Motor 36mm 1000-1800g.cm
Features:
1. Small size dc brushless motor with low speed and big torque
2. Suitable to small diameter, low noise and big torque application
3. Can equip with Gear Reducer
Options:Lead wires length,Shaft length,Special coils,Gearheads, Bearing type ,Hall sensor,Encoder,Driver
A common product, brushless dc motors (BLDC motors) have the qualities of low interference, low noise, and long life. A high-precision planetary gearbox is used in combination with it due to its stable performance to significantly increase the torque of the motor and decrease its speed, making it suitable for a variety of application fields.
Application:
Robot,lock. Auto shutter, USB fan,Slot machine,Money detector
Coin refund devices,Currency count machine,Towel dispensers
Automatic doors,Peritoneal machine,Automatic TV rack,
Office equipment ,Household appliances,etc.

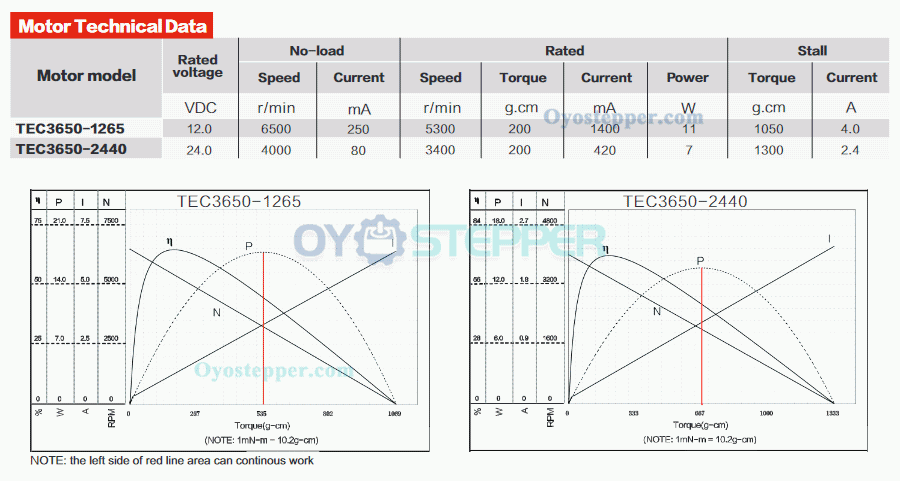

Electrical Specification：
Part Number: TEC3650
Rated Power:11W(12V)/7W(24V)
Rated Voltage:12V/24V
Rated Current(A):1400mA(12V) / 420mA(24V)
Rated Torque:200g.cm
Rated Speed:5300rpm(12V)/3400rpm(24V)
No Load Speed : 6500RPM(12V)/4000RPM(24V)
Stall Torque:1050g.cm(12V)/1300g.cm(24V)
Stall Current:4.0A(12V)/2.4A(24V)
Efficiency:IE 4
Efficiency: 65%
Noise:30cm.40-50db

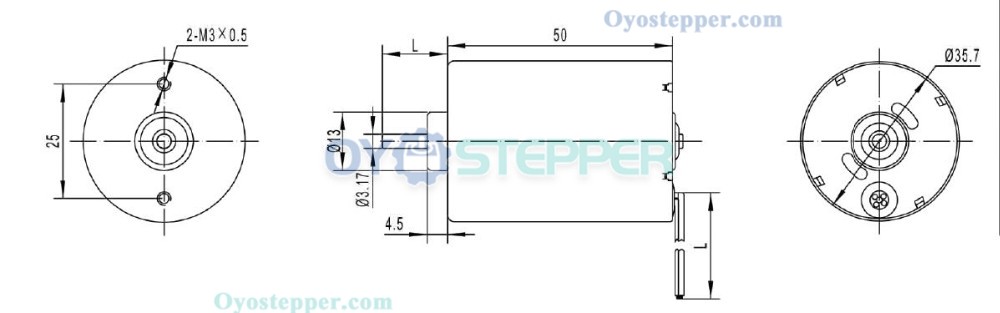

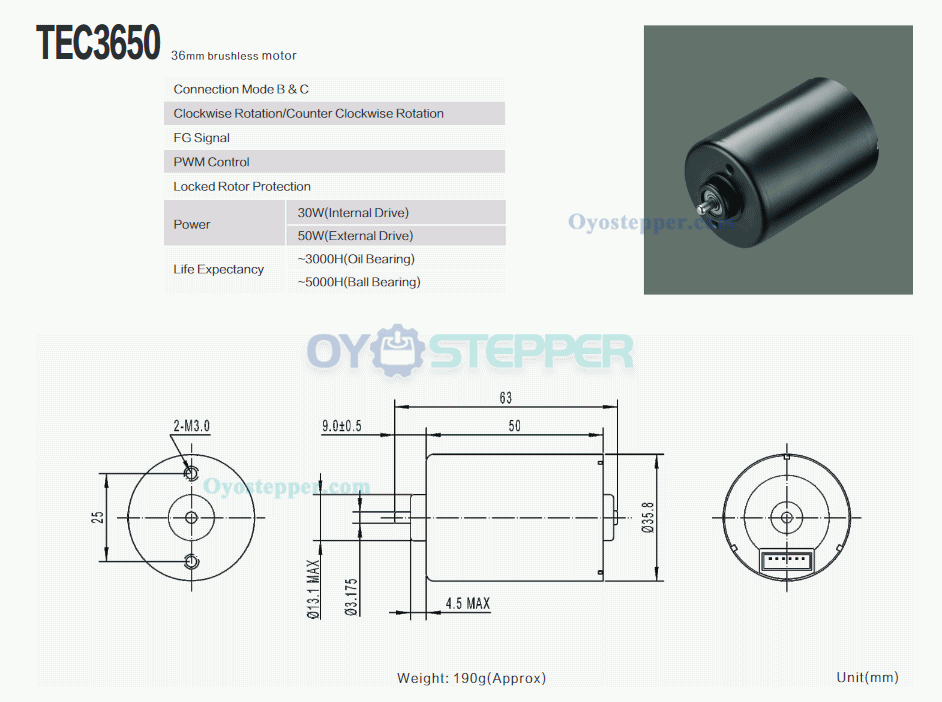

Physical Specification:
Motor Size:Φ35.8mm*50mm
Motor Diameter:35.8mm
Motor Length:50mm
Shaft Type:O
Shaft Diameter:3.175mm
Shaft Length:4.5mm
Weight:190g
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Body Length(mm) | 50 |
| Frame Size(mm) | Φ35.8 |
| Shaft Diameter(mm) | 3.175 |
| Weight(g) | 190 |
| Shaft Length(mm) | 4.5 |
| Shaft Type | O |
| Single Shaft/Dual Shaft | Single Shaft |
| Electrical Specification | |
| Rated Power(W) | 11 / 7 |
| Rated Voltage(V) | 12 / 24 |
| Rated Torque(kg.cm) | 0.2 |
| Rated Speed(rpm) | 5600 / 3400 |
| Rated Current (A) | 1.4 / 0.42 |
