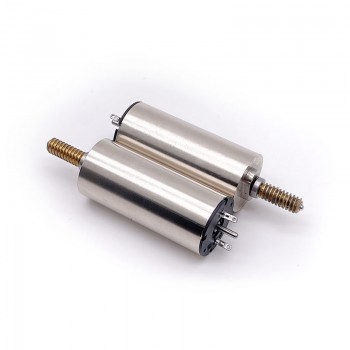

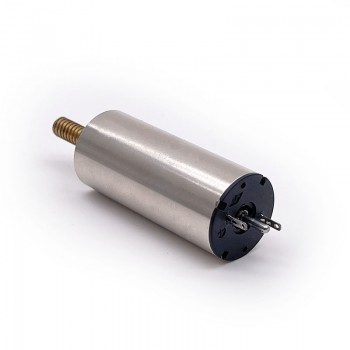

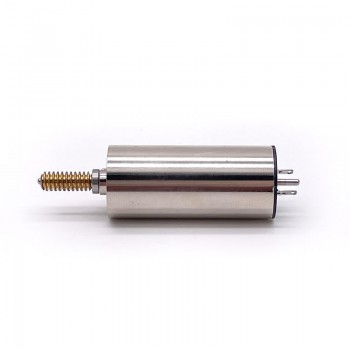

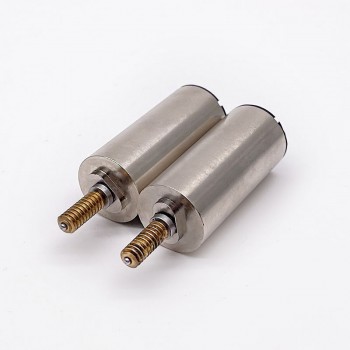

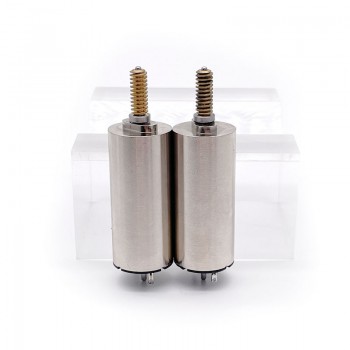

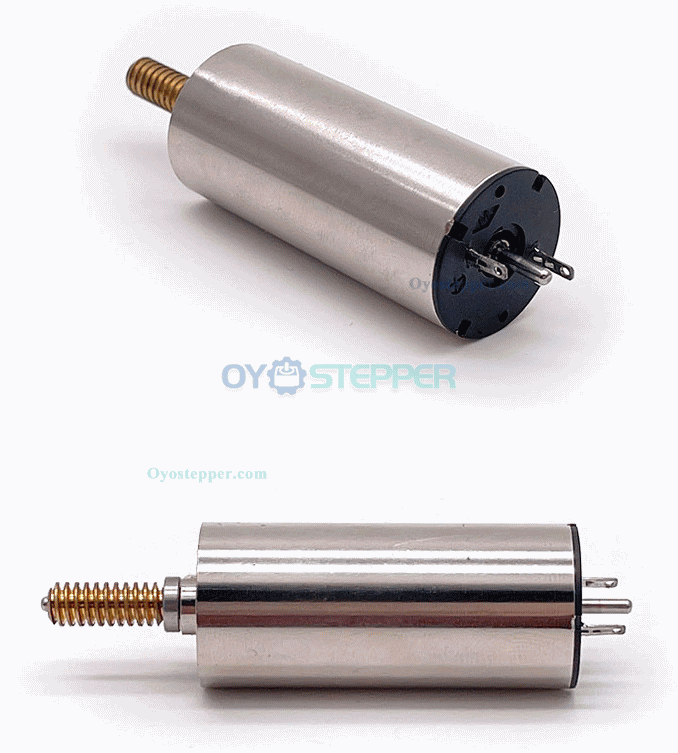

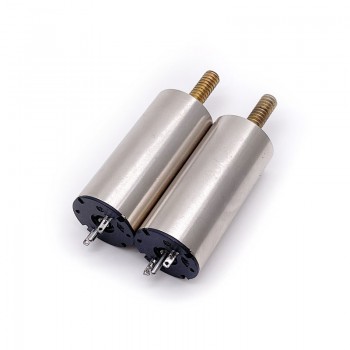

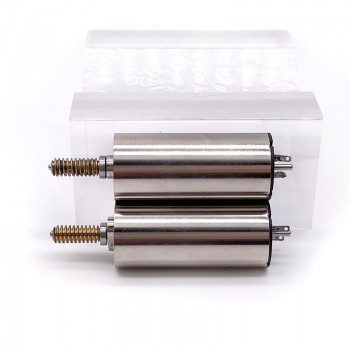

24V DC Coreless Brushed Motor High Speed Low Noise 1.96m.Nm 16mm*36mm

24V DC Coreless Brushed Motor High Speed Low Noise 1.96m.Nm 16mm*36mm
NO.:TDC1636
Post a review
China National Day Special Offer:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till October 7th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$19.99
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $18.99 5%
30 $18.59 7%
50 $17.99 10%
100 $16.99 15%
Add To Cart

Videos

24V DC Coreless Brushed Motor High Speed Low Noise 1.96m.Nm 16mm*36mm


TDC series DC coreless brush motor provides Ø16mm~Ø40mm wide diameter and body length specifications, using the hollow rotor design scheme, with high acceleration, low moment of inertia, no groove effect, no iron loss, small and lightweight, very suitable for frequent start and stop, comfort and convenience requirements of hand-held applications.




Features:
Bi-direction
Metal end cover
Permanent Magnet
Brushed DC Motor
Carbon Steel Shaft
RoHS Compliant;


Applications:
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.


Electrical Specification
Part Number: TDC1636
Power:2W
Rated Voltage:24V
Rated current:0.13A
Rated Torque:1.96m.Nm
No load speed:11000rpm
Continuous Current(A):30-55mA
Type:PMDC Brushed Motor
Efficiency: IE 3
Protect Feature:Drip-proof
Encoder:1-1024ppr
Construction:Permanent Magnet
Noise:Low Noise Level;

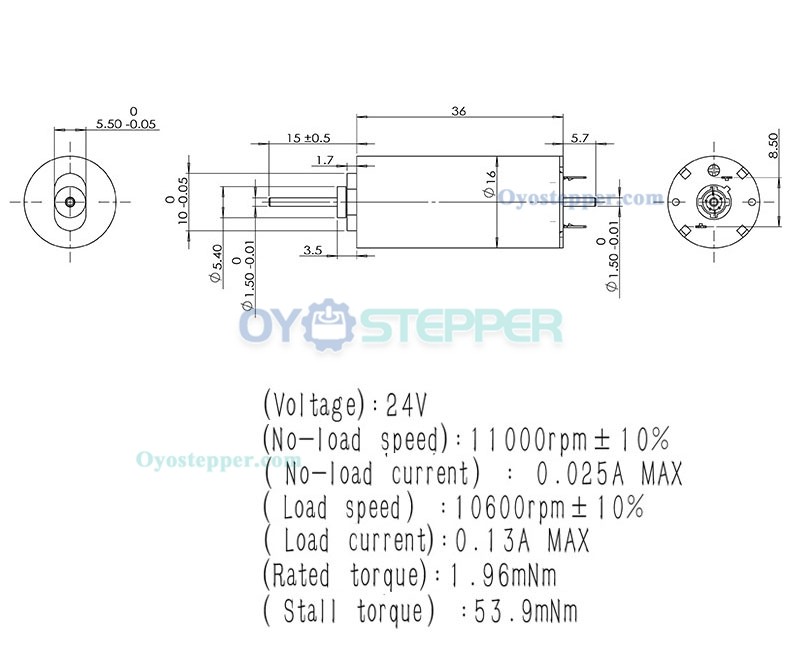

Physical Specification:
Motor Size: 16*36mm
Motor Diameter:16mm
Motor Length:36mm
Shaft diameter:1.5mm
Weight:25g

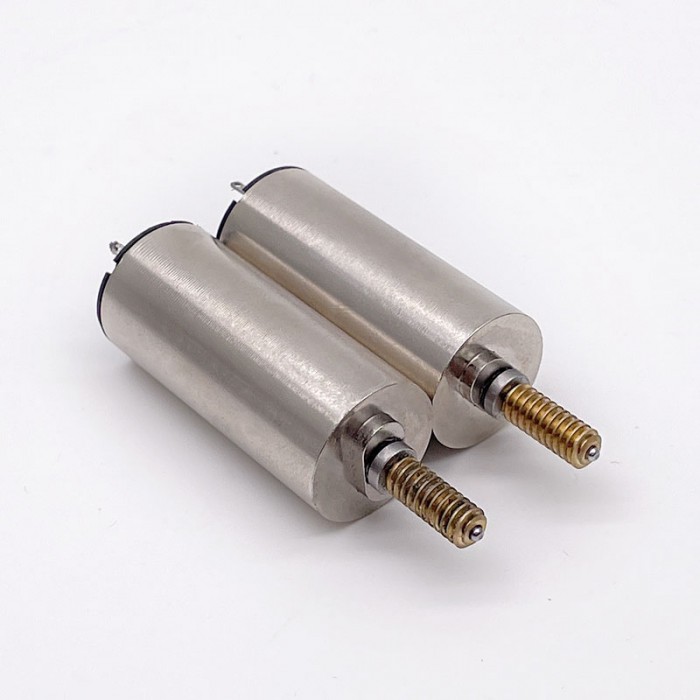

24V DC Coreless Brushed Motor High Speed Low Noise 1.96m.Nm 16mm*36mm

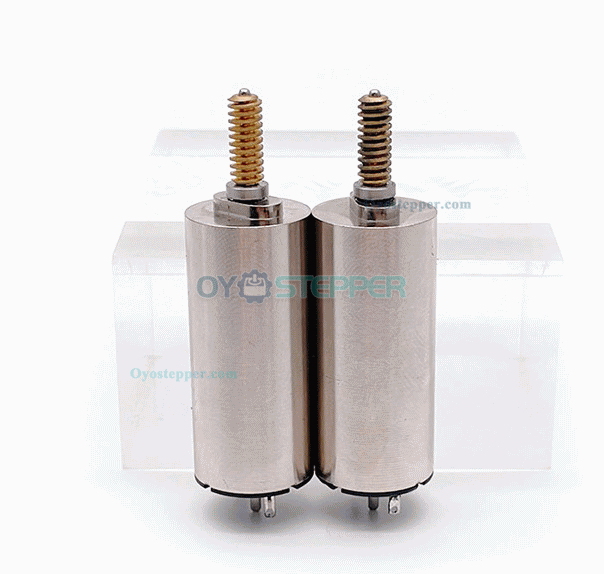

24V DC Coreless Brushed Motor High Speed Low Noise 1.96m.Nm 16mm*36mm
24V DC Coreless Brushed Motor High Speed Low Noise 1.96m.Nm 16mm*36mm



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 12V Brushed DC Motor Permanent Magnet PMDC Brushed Motor 16*25mm
Next: High Speed DC Coreless Brushed Motor Permanent Magnet PMDC Brushed Motor
Physical Specification
Body Length(mm) 36mm
Frame Size(mm) 16*36mm
Shaft Diameter(mm) 1.5mm
Electrical Specification
Rated Power(W) 2W
Rated Torque(Nm) 1.96m.Nm
Rated Voltage(V) 24V
Current(A) 0.13A
Rated Speed(rpm) 11000rpm
