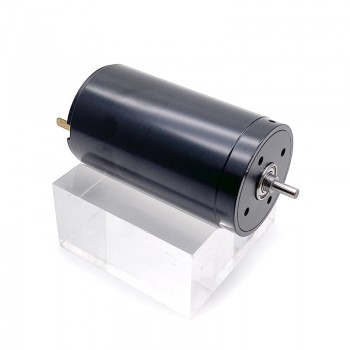

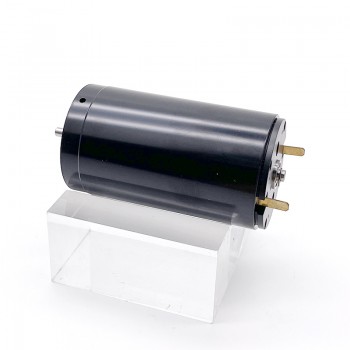

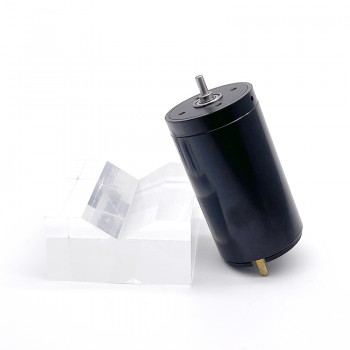

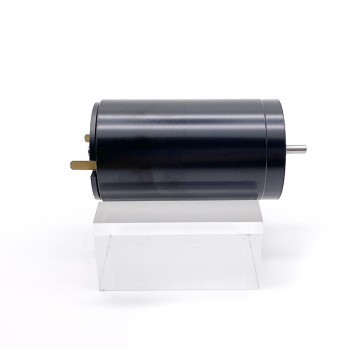

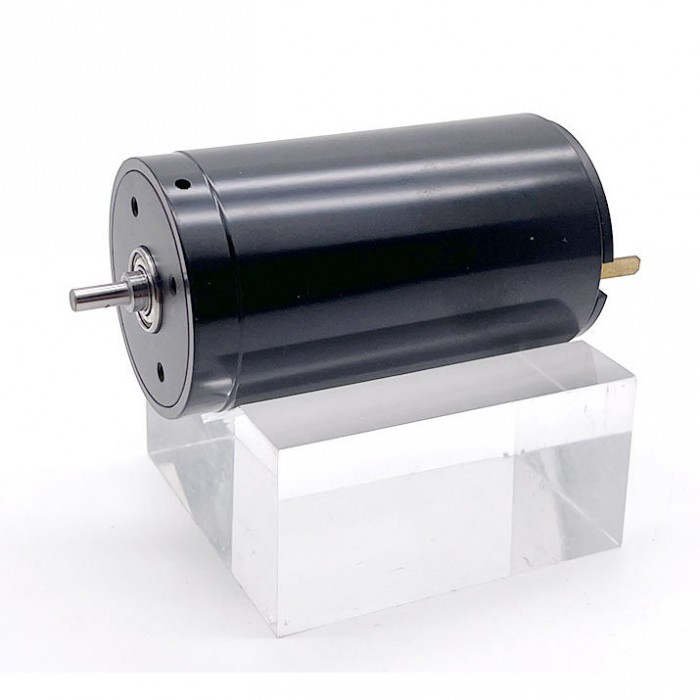

High Torque DC Coreless Brushed Motor 24V 30-7000mA 2000g.cm 7000r/min 40mmx71mm

High Torque DC Coreless Brushed Motor 24V 30-7000mA 2000g.cm 7000r/min 40mmx71mm

Videos

TDC series DC coreless brush motor provides Ø16mm~Ø40mm wide diameter and body length specifications, using the hollow rotor design scheme, with high acceleration, low moment of inertia, no groove effect, no iron loss, small and lightweight, very suitable for frequent start and stop, comfort and convenience requirements of hand-held applications. Each series offers a choice of rated voltage versions to meet the needs of the user, as well as gear box, encoder, high and low speed, and other application environment customization possibilities.

Application

Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.


Features:
Bi-direction
Metal end cover
Permanent Magnet
Brushed DC Motor
Carbon Steel Shaft
RoHS Compliant;

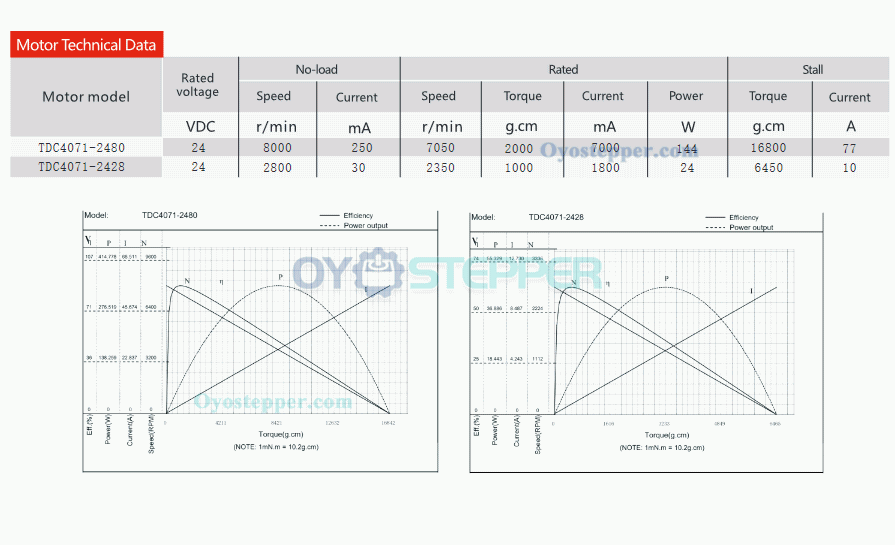

Electrical Specification:
Part Number: TQTDC50108
Power:150W
Rated Voltage: 24V
Rated current:1800-7000mA
Rated Torque:2000g.cm
Rated Speed(rpm):7000r/min
Continuous Current(A):30-7000mA
Type:Brush Motor
Efficiency:IE 3
No load speed:2800-8000r/min
Brush Type:Graphite brush
Construction:Permanent Magnet
Encoder:1-1024ppr;

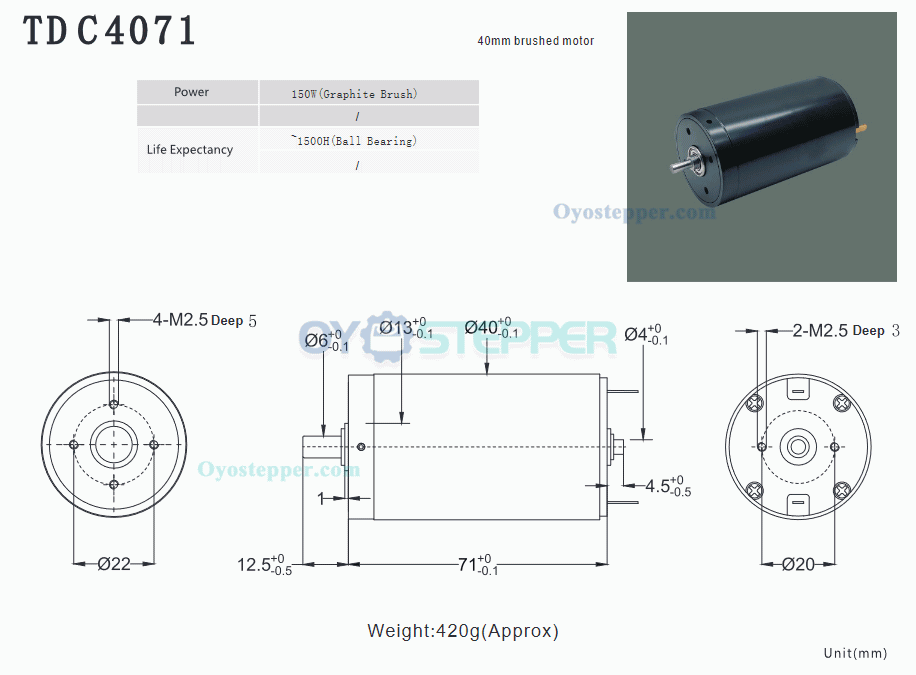

Physical Specification:
Motor Size:40*71mm
Motor Diameter:40mm
Length:71mm
Front Shaft Length: 12.5mm
Front Shaft Diameter:6mm
Rear Shaft Length:4.5mm
Rear Shaft Diameter:4mm
Weight:420g;

Resources

• TDC4071.pdf
