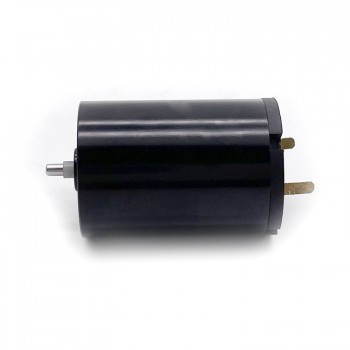

9V / 24V Electric Coreless Motor Strong Magnetic DC Coreless Brushed Motor

Videos

TDC series DC coreless brush motor provides Ø16mm~Ø40mm wide diameter and body length specifications, using the hollow rotor design scheme, with high acceleration, low moment of inertia, no groove effect, no iron loss, small and lightweight, very suitable for frequent start and stop, comfort and convenience requirements of hand-held applications. Each series offers a number of rated voltage versions based on customer requirements to give gear box, encoder, high and low speed, and other application environment customization possibilities.


Features:
Bi-direction;
Metal end cover;
Permanent Magnet;
Brushed DC Motor;
Carbon Steel Shaft;
RoHS Compliant;


Usage:
Boat, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Tattoo machine.

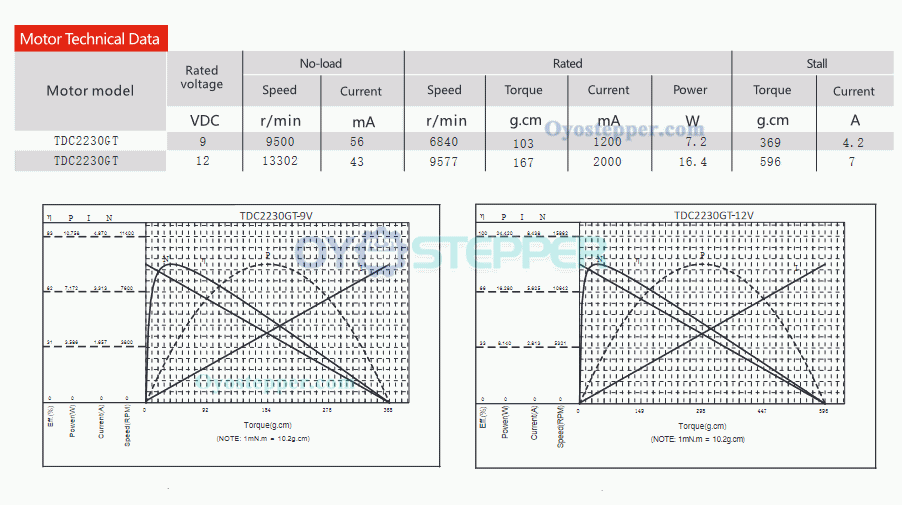

Electrical Specification

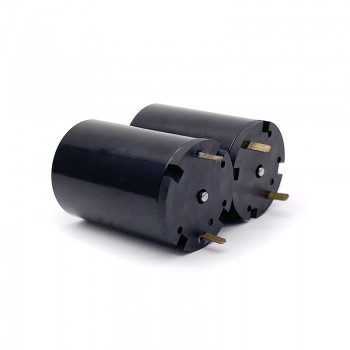

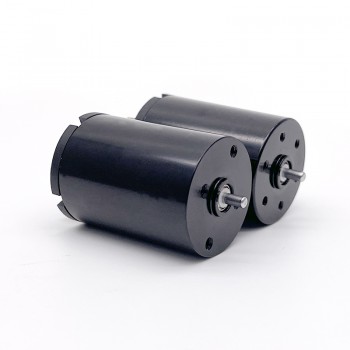

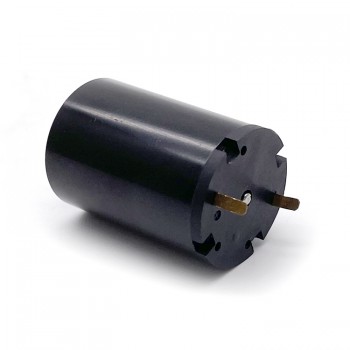

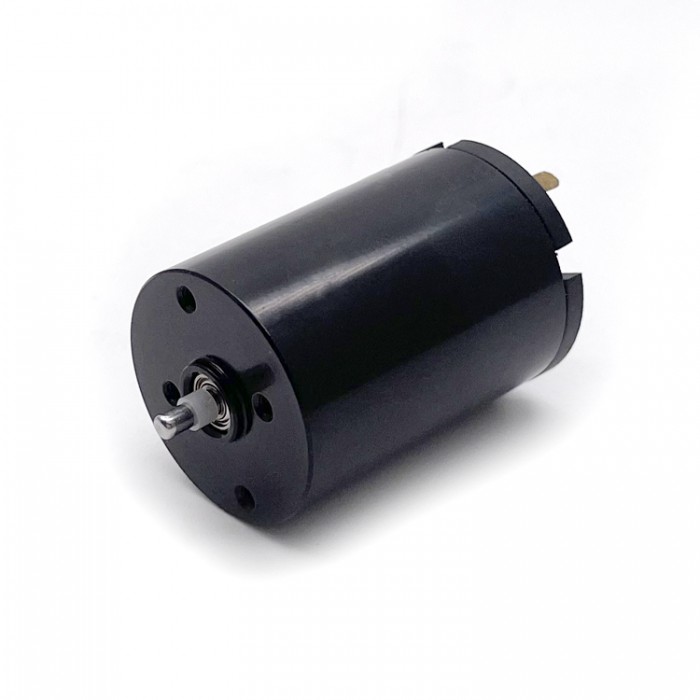

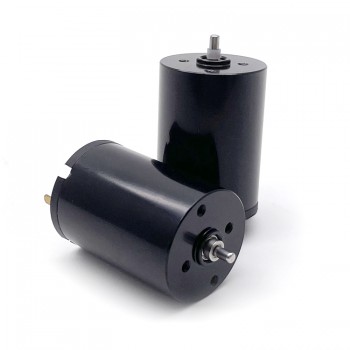

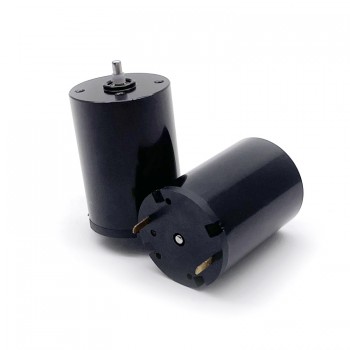

Part Number: TQTDC2230
Power:16.4w
Rated Voltage:9V/ 24V
Rated current:1200-2000mA
Rated Torque:100-600g.cm
Rated Speed(rpm):6000-13000r/min
No load speed:9000-13000r/min
Continuous Current(A):40-2000mA
Type:Brush Motor
Efficiency: IE 4
Protect Feature:Drip-proof
Construction:Permanent Magnet
Encoder:1-1024ppr
Noise:Low Noise Level;

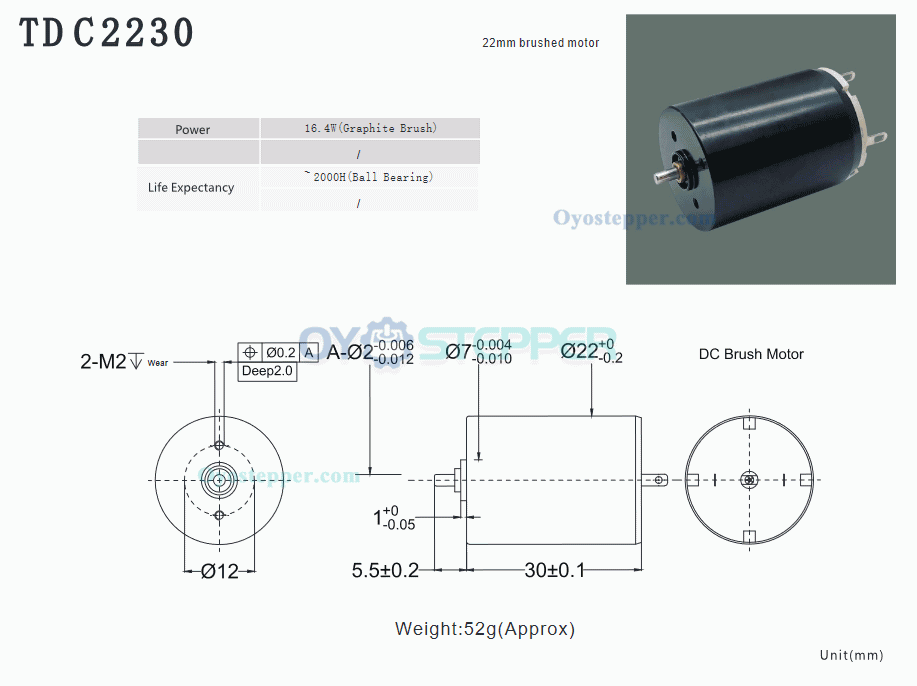

Physical Specification:
Motor Size: 22*30mm
Diameter:22mm
Length:30mm
Shaft diameter:1mm
Weight:52g;

Resources

TDC2230.pdf
