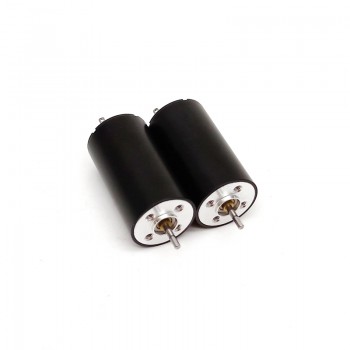

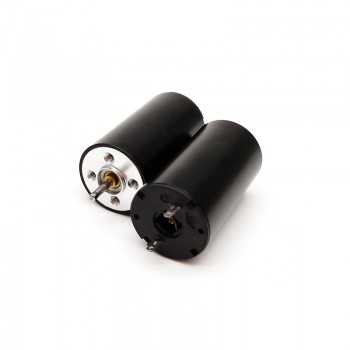

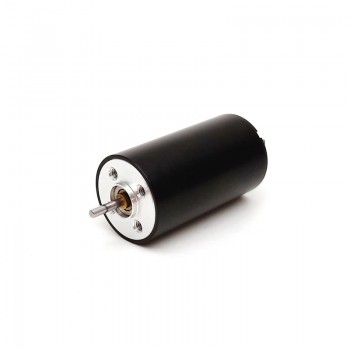

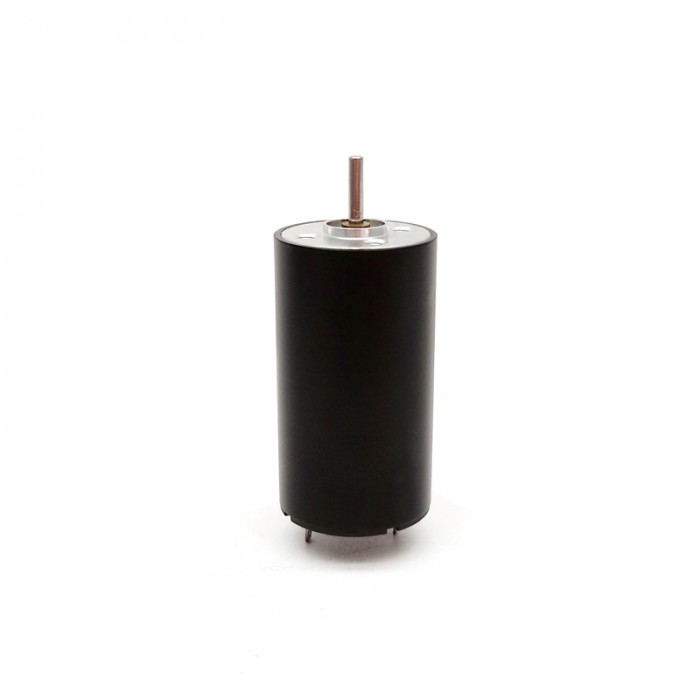

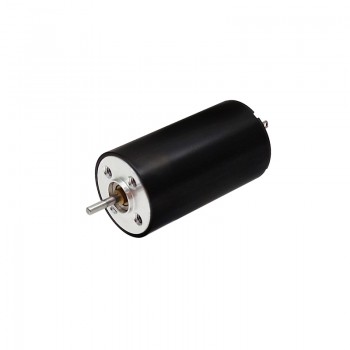

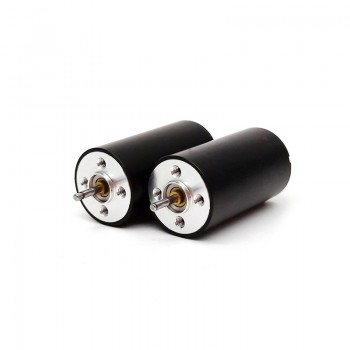

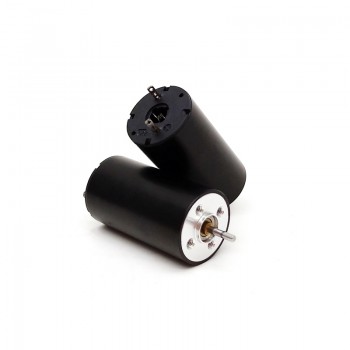

High Speed DC Coreless Brushed Motor Permanent Magnet PMDC Brushed Motor

Videos

TDC series DC coreless brush motor provides Ø16mm~Ø40mm wide diameter and body length specifications, using the hollow rotor design scheme, with high acceleration, low moment of inertia, no groove effect, no iron loss, small and lightweight, very suitable for frequent start and stop, comfort and convenience requirements of hand-held applications.

Feature

Bi-direction
Metal end cover
Permanent Magnet
Brushed DC Motor
Carbon Steel Shaft
RoHS Compliant

Application

Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.

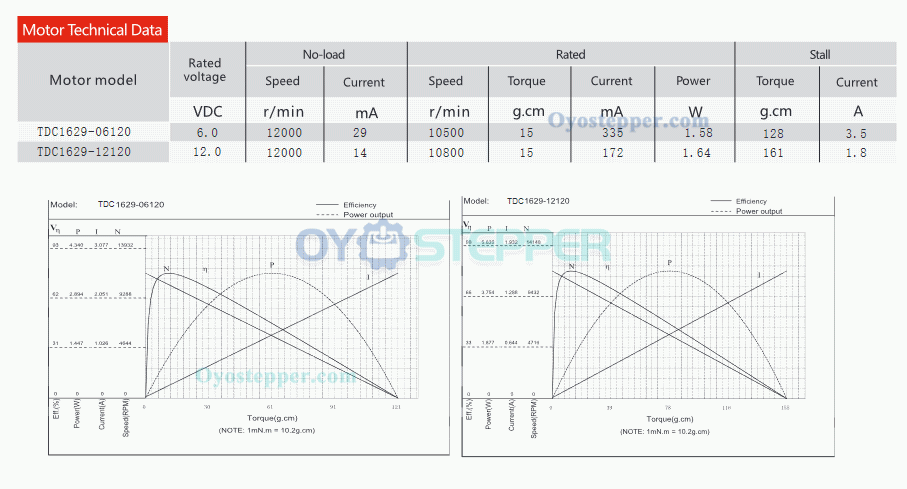

Parameters

Electrical Specification
Part Number: TQTDC1629
Power:Max.4.5W
Rated Voltage:6V/12V
Rated Torque:15 g.cm
Rated Speed(rpm):7500-9000rpm
Continuous Current(A):30-55mA
Type:PMDC Brushed Motor
Efficiency: IE 4
Protect Feature:Drip-proof
Construction:Permanent Magnet
Noise:Low Noise Level;

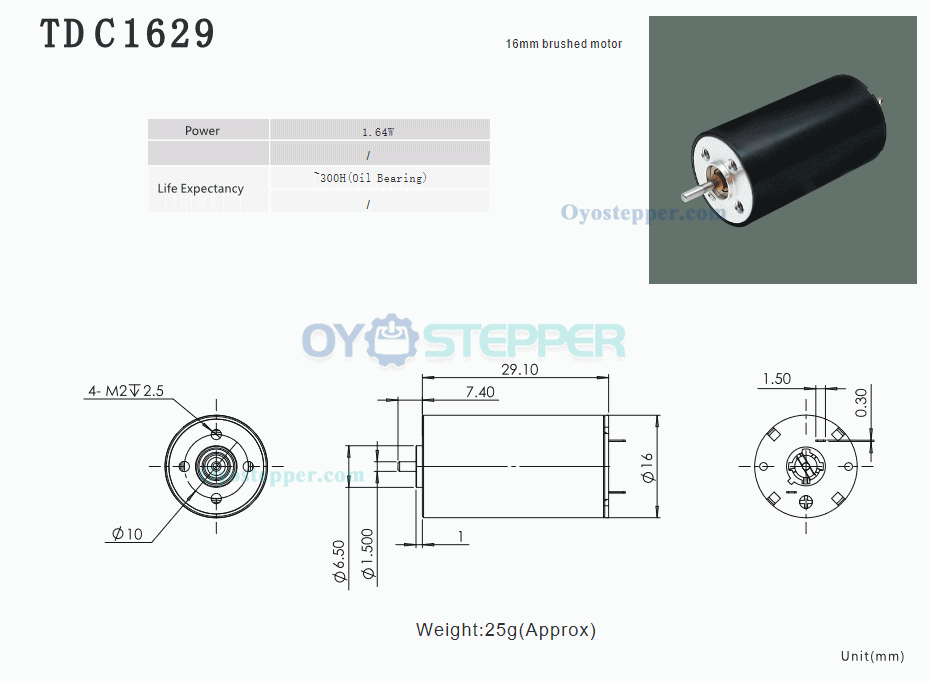

Physical Specification:
Motor Size: 16*29mm
Motor Diameter:16mm
Motor Length:29mm
Shaft diameter:1.5mm
Weight:25g

Resources

• TDC1629.pdf
