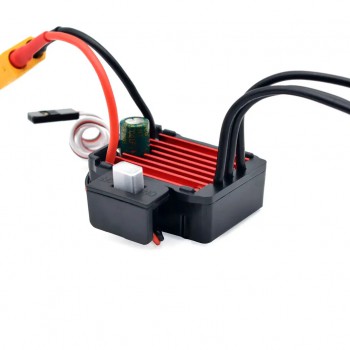

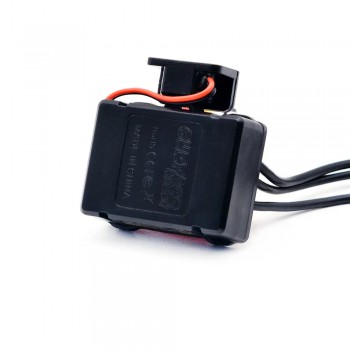

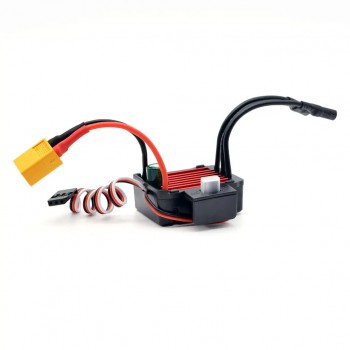

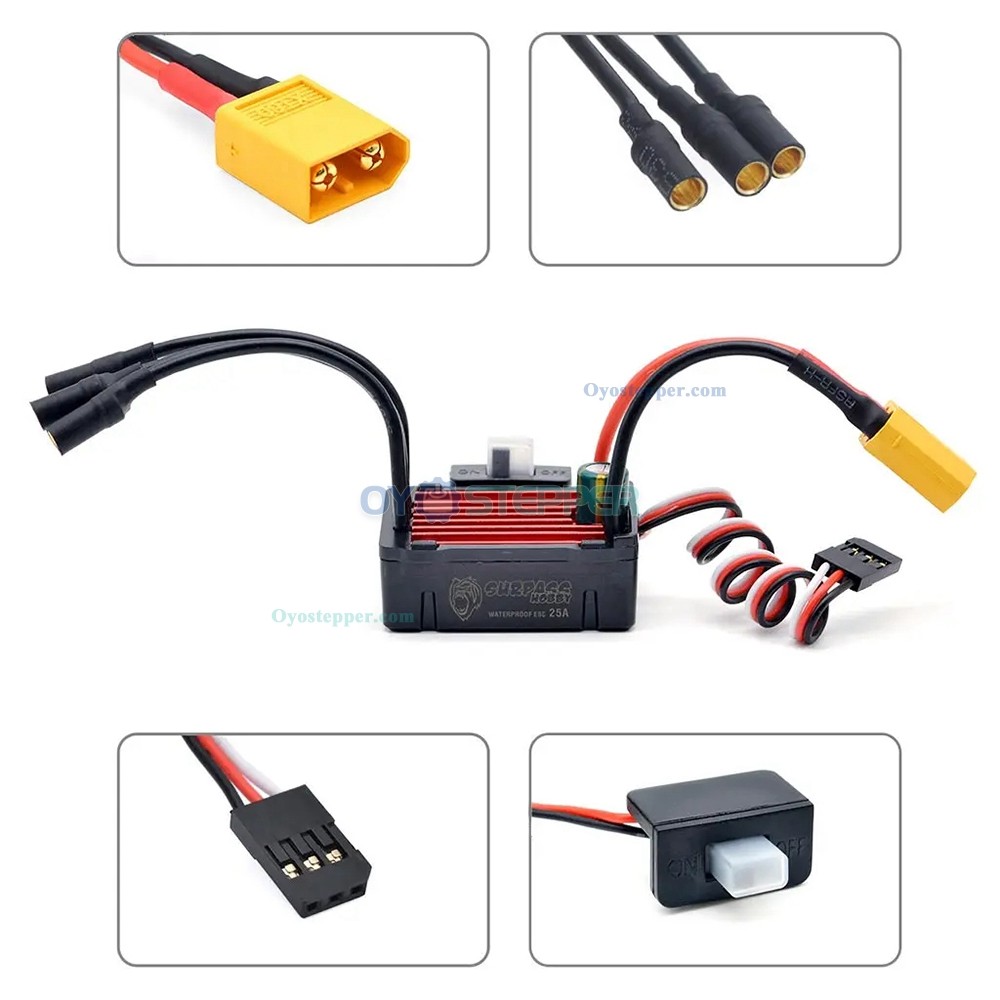

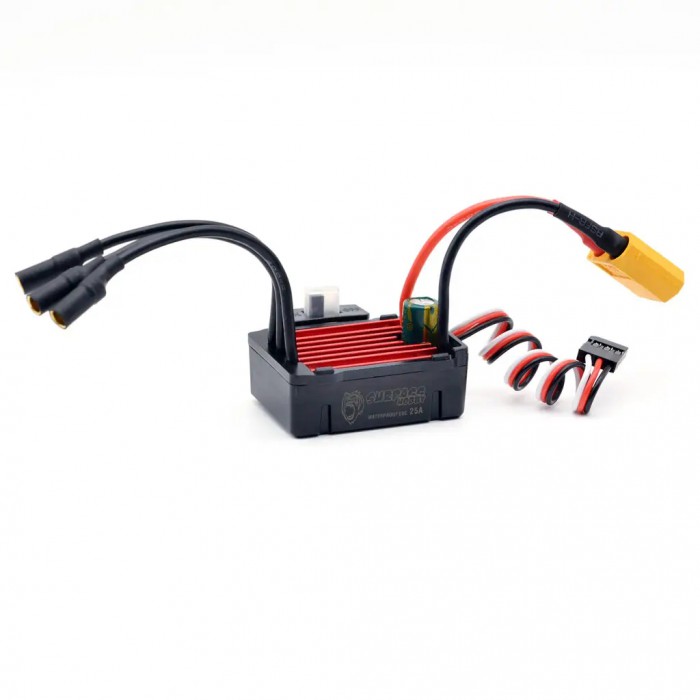

Surpass Hobby 25A Speed Controller T/XT60 Plug For FPV Drone Motor

Surpass Hobby 25A Speed Controller T/XT60 Plug For FPV Drone Motor

Features:
1. Water- proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car and drone.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability, heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for litium or nickel battery /Over-heat protectionThrote signal loss protection / Motor blocked protection/
6. Easily programmed and compatible with pocket-sized program card.


Specification:
Brand: SURPASSHOBBY
Name: KK 25A ESC
Cont.Current/Burst Current: 25A/100A
Motor Type: Sensorless Brushless Motor
1. on-road: 24XX-Size or smaller motor with the KV<7200KV
2. off-road/Buggy/Monster: 24XX-size or smaller motor with the KV <4800KV
Suitable Car: 1/20 1/18 1/16 Car
Resistance: 0.0014ohm
Battery: 2S Lipo/4-6Cells NiMH
BEC Output: 5.0V/2A(analog mode)

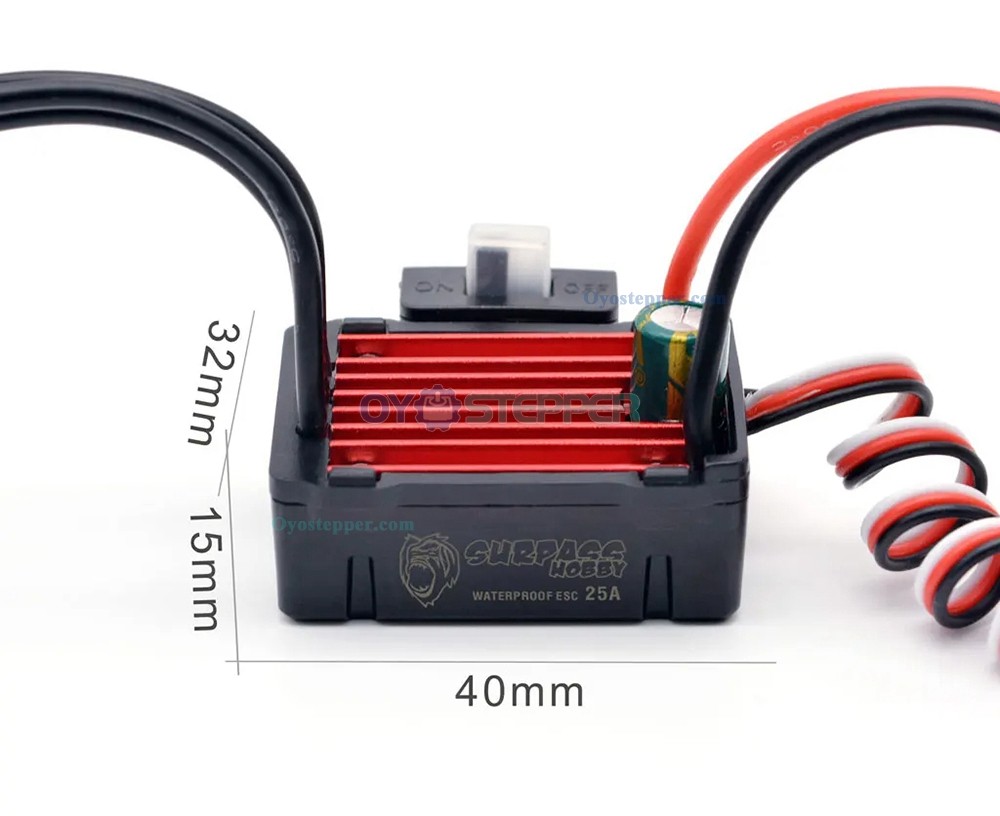

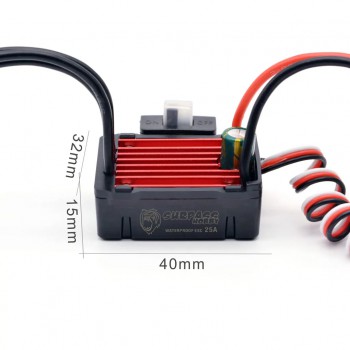

Dimensions/Weight: 40x32x15mm/33g;
