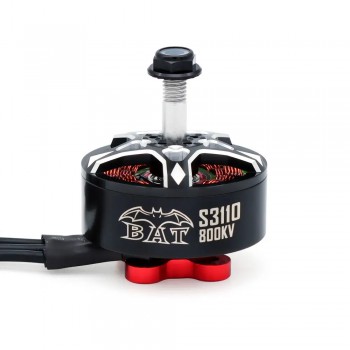

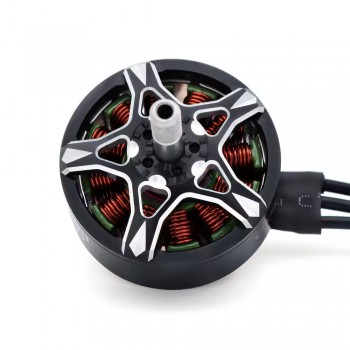

Surpass Hobby S3110 14 Pole FPV BLDC Motor RC Motor Boat RC for Radio Control RC Drone
Surpass Hobby S3110 800KV /1280KV/1580KV 14 Pole FPV BLDC Motor RC Motor (compatible HQ8x4x3)
Features:
Waterproof construction
High temperature resistance: 220°C
14 poles, 12 slots
CNC machined 6061-T6 aluminum cooling fins
Secondary oxidation treatment
High purity copper windings
ABEC5 bearings
3.5mm gold plated connector included

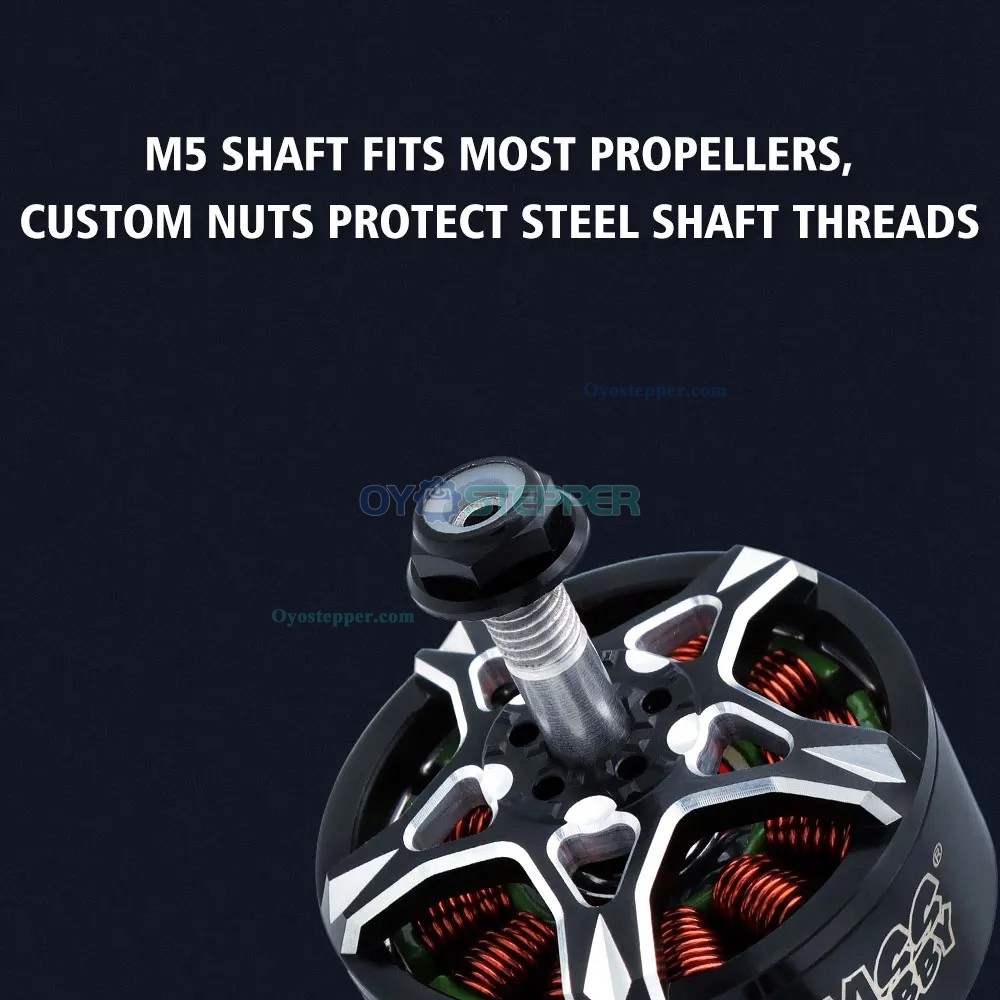

4mm shaft included

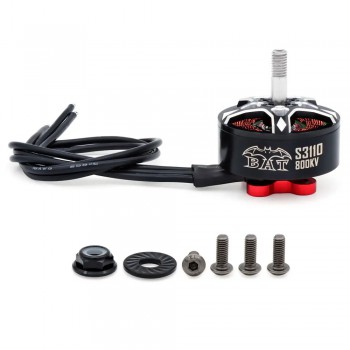

Mounting screws included

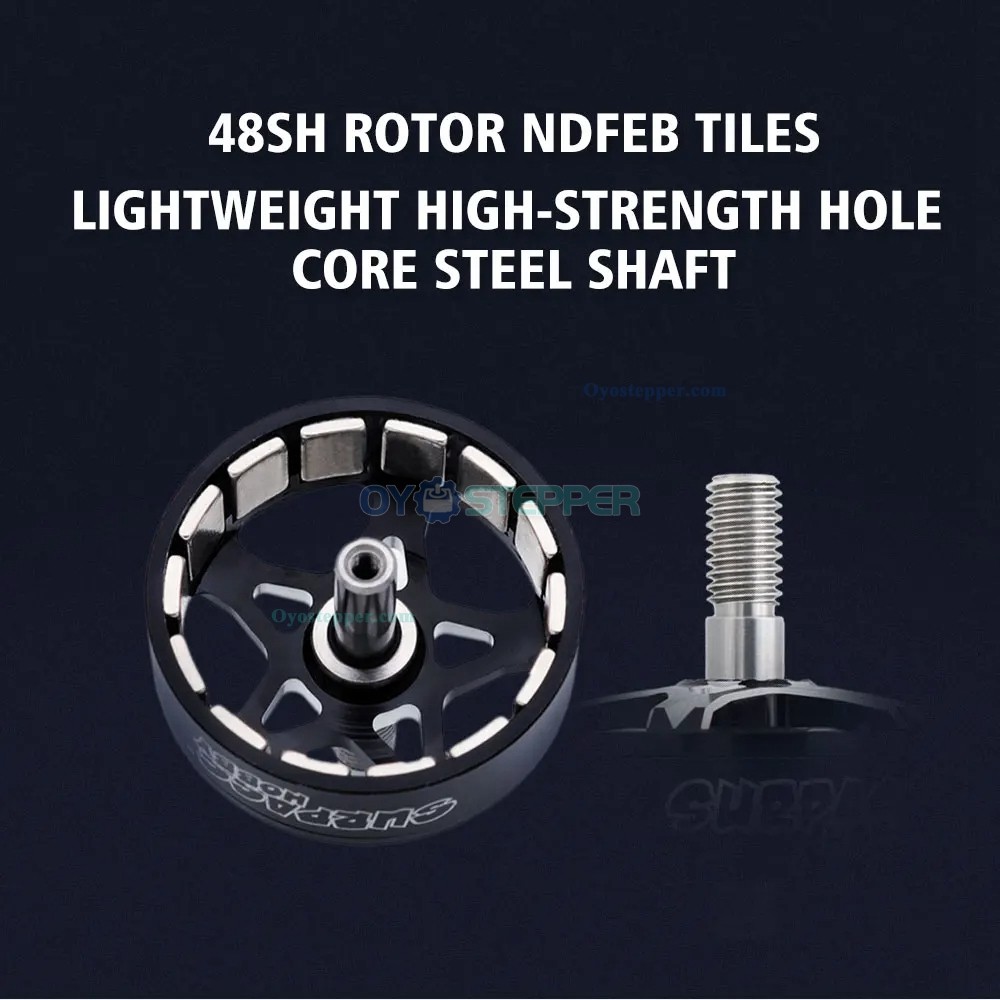

Balanced rotor

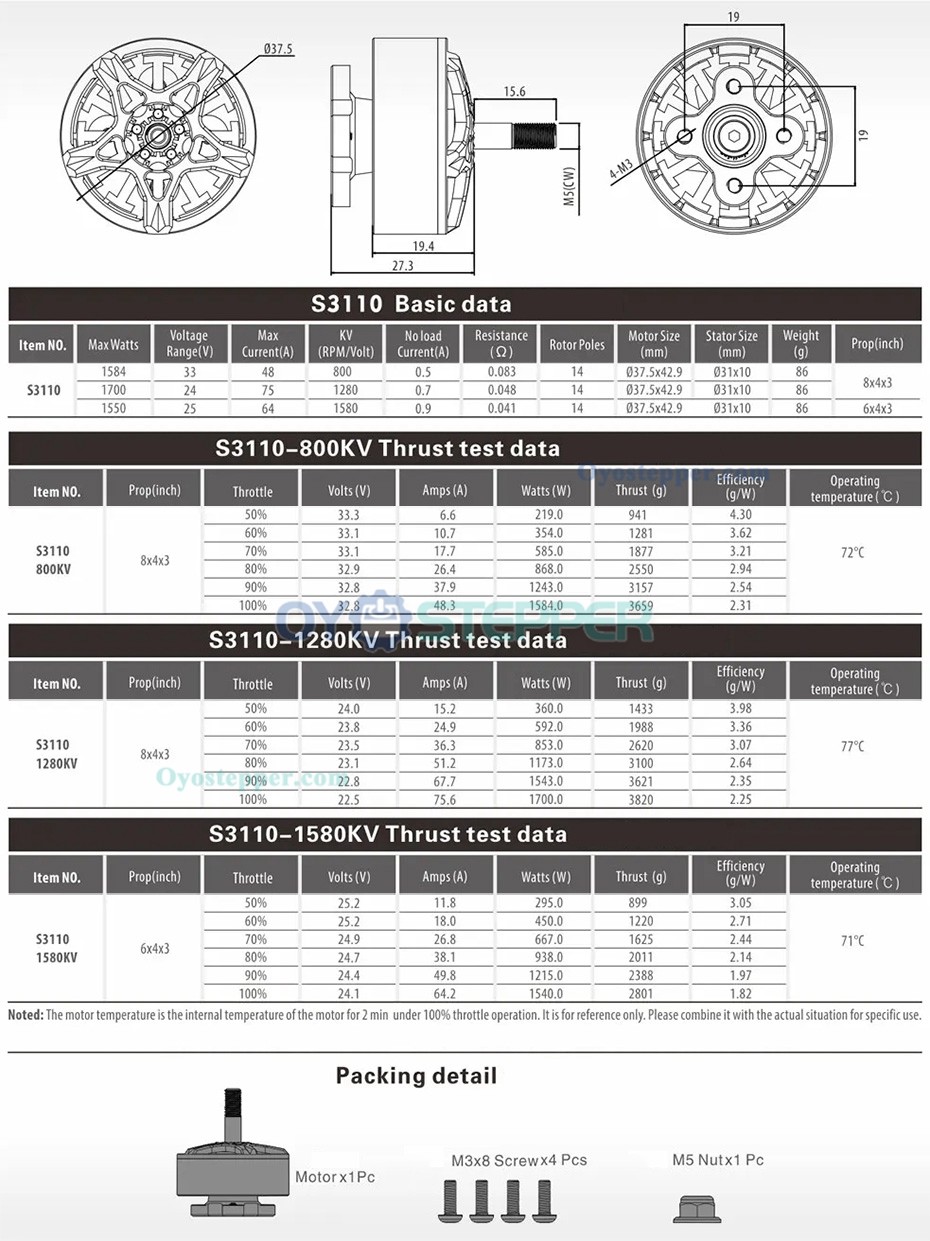

Specifications:
Brand: Surpass Hobby
Model: S3110
Motor type: FPV motor
Rotor poles: 14
KV options: 800KV / 1280KV / 1580KV
Power: 1584W / 1700W / 1540W
Voltage range: 33V / 24V / 25V
Max current: 48A / 75A / 64A
No-load current: 0.5A / 0.7A / 0.7A
Resistance: 0.083Ω / 0.048Ω / 0.041Ω
Bearings: NMB
Motor size: 37.5 x 42.9mm
Stator size: 31 x 10mm
Propeller compatibility: HQ8 x 4 x 3, HQ6 x 4 x 3
Net weight: 86g
Maximum Thrust:
S2806.5: 2535g
S2807: 2535g
S2808: 2071g
S2810: 2950g
S2812: 3313g
(1).jpg "Surpass Hobby S3110 14 Pole FPV BLDC Motor RC Motor Boat RC for Radio Control RC Drone")
(1).jpg "Surpass Hobby S3110 14 Pole FPV BLDC Motor RC Motor Boat RC for Radio Control RC Drone")
.jpg "Surpass Hobby S3110 14 Pole FPV BLDC Motor RC Motor Boat RC for Radio Control RC Drone")
.jpg "Surpass Hobby S3110 14 Pole FPV BLDC Motor RC Motor Boat RC for Radio Control RC Drone")
.jpg "Surpass Hobby S3110 14 Pole FPV BLDC Motor RC Motor Boat RC for Radio Control RC Drone")
| BLDC Motor Specification | |
|---|---|
| No. of Poles | 14 |
| Rated Voltage(V) | 33 / 24 / 25 |
| Physical Specification | |
| Body Length(mm) | 42.9 |
| Shaft Type | compatible HQ8x4x3 Prop / compatible HQ6x4x3 Prop |
| Weight(g) | 86 |
| Product Type | FPV Motor |
| Product Series | S3110 |
