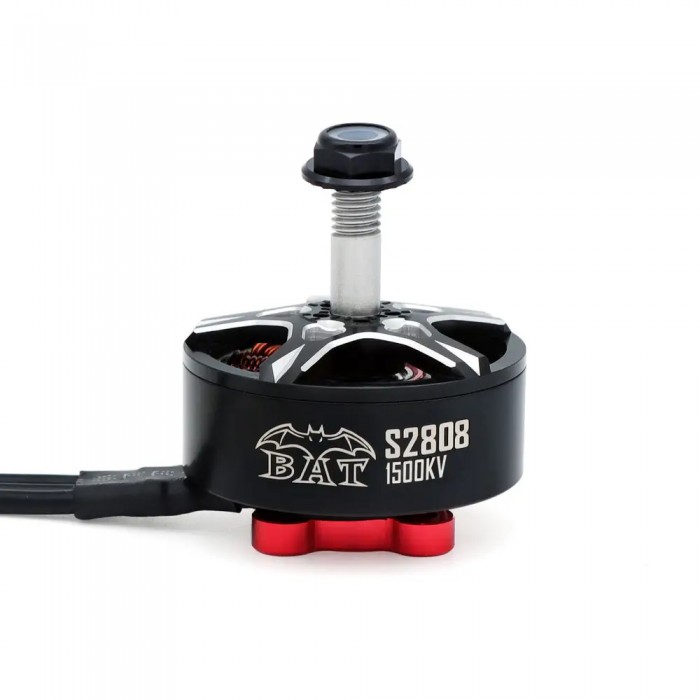

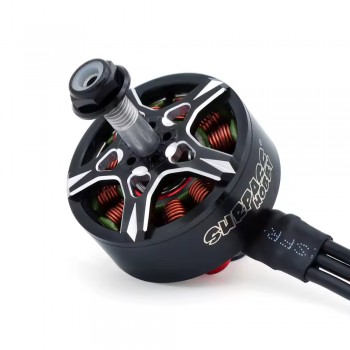

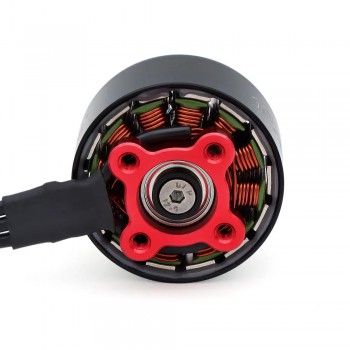

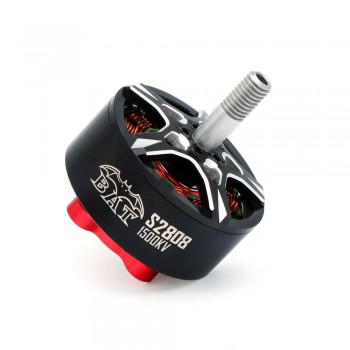

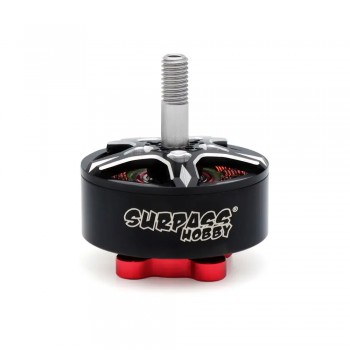

Surpass Hobby S2808 1500KV /1900KV FPV Motor Boat RC Motor for Unmanned Aerial Vehicle Remote Control Helicopter

Surpass Hobby S2808 1500KV /1900KV FPV Motor Boat RC Motor for Unmanned Aerial Vehicle Remote Control Helicopter



Features:
Waterproof design, durable material.
High teamperature resistant 220­°C;

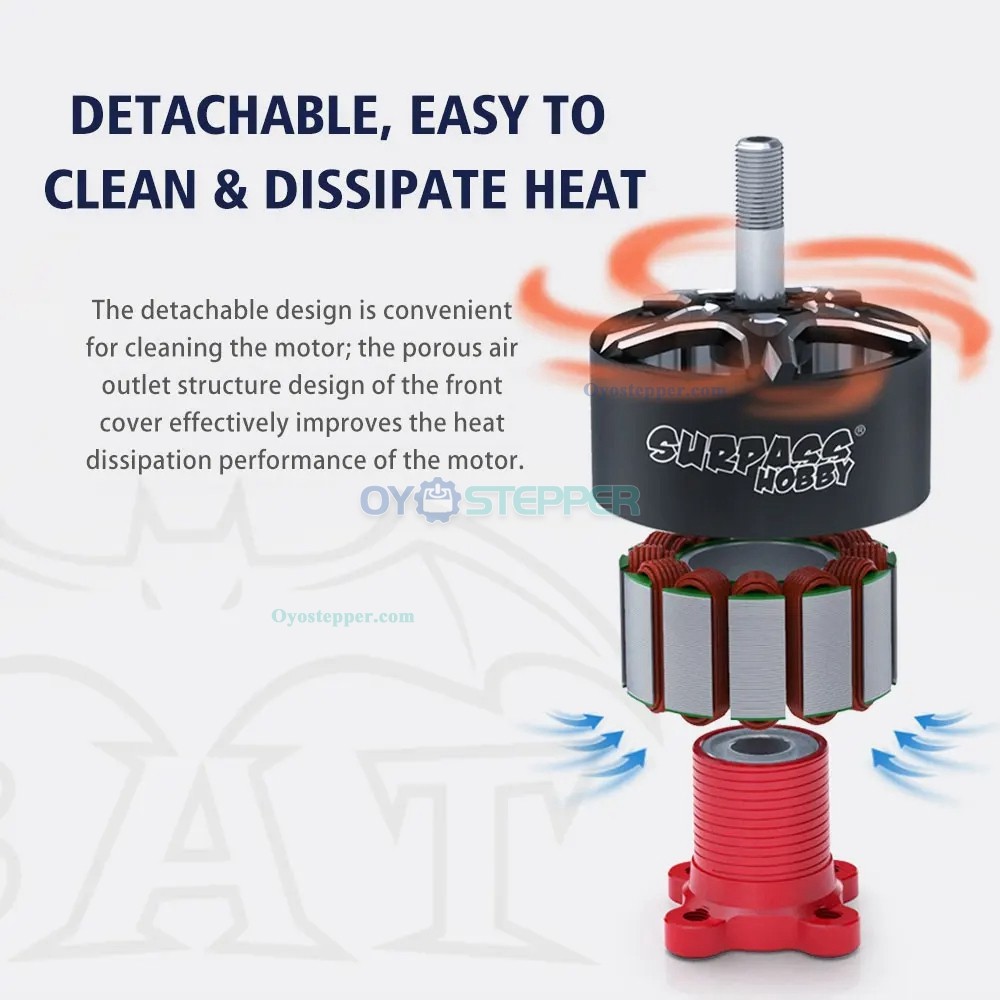

14 poles, 12 slots, and CNC machined 6061-T6 aluminium cooling fin leads to efficient heat dissipation. Secondary oxidation treatment makes it durable.
High purity copper windings imizes efficiency, with high temperature resistance.
ABEC5 bearing is precision and stably, with low friction, better durability.
Ultra-thin silicon lamination behave high magnetic permeability, better insulation and heat resistance.

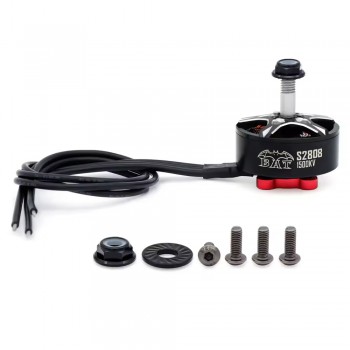

3.5mm gold plated connector, 4mm shaft, screws are included.

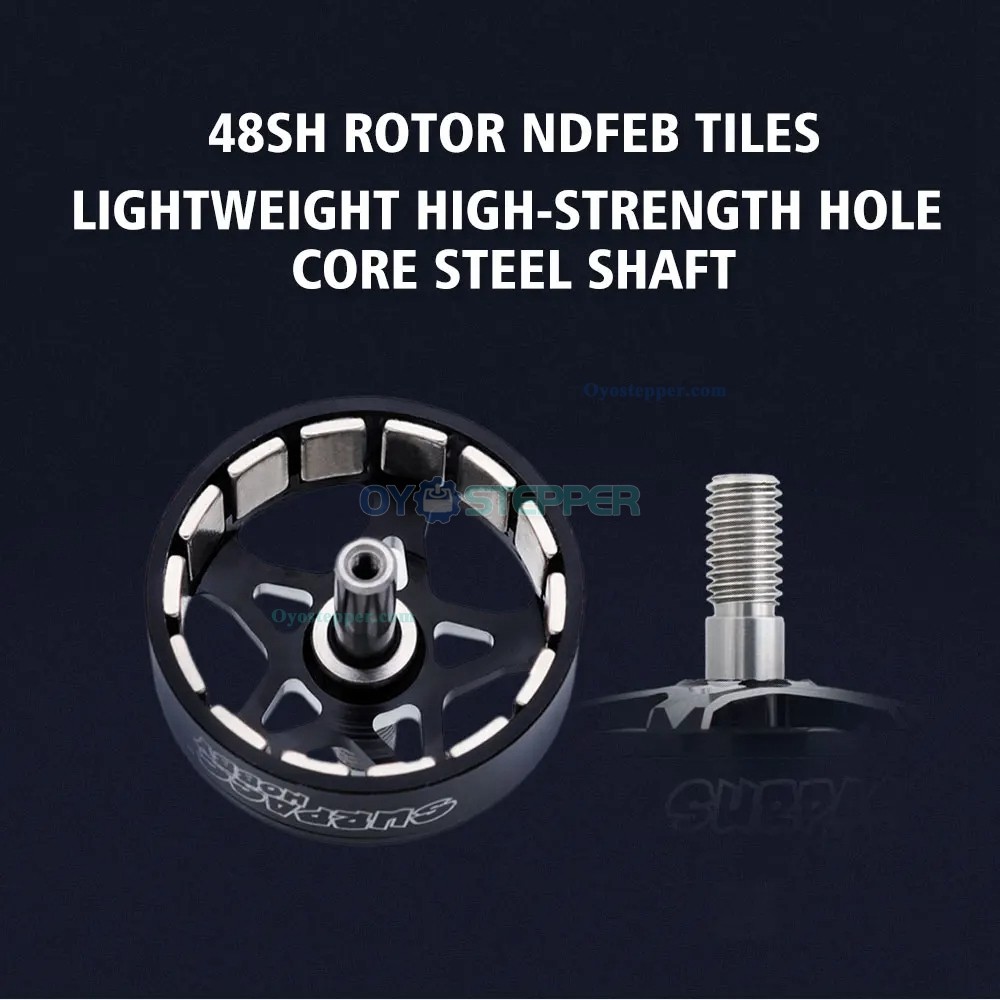

Balanced and smooth rotor can get reliability and imum RPM.

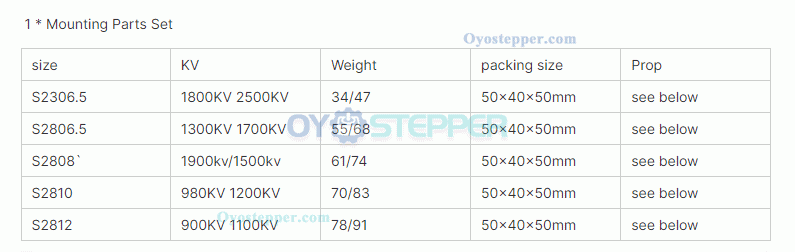

Specification:
Brand:Surpass Hobby
Model:S2806.5
Motor Type:FPV Motor
Rotor Poles:14
KV:1800KV / 2500KV
Power:1056W / 1170W
No load current:0.9-1.3Ω
Max Current(A):48A/51A
Voltage Range(V):24V
Bearings:NMB

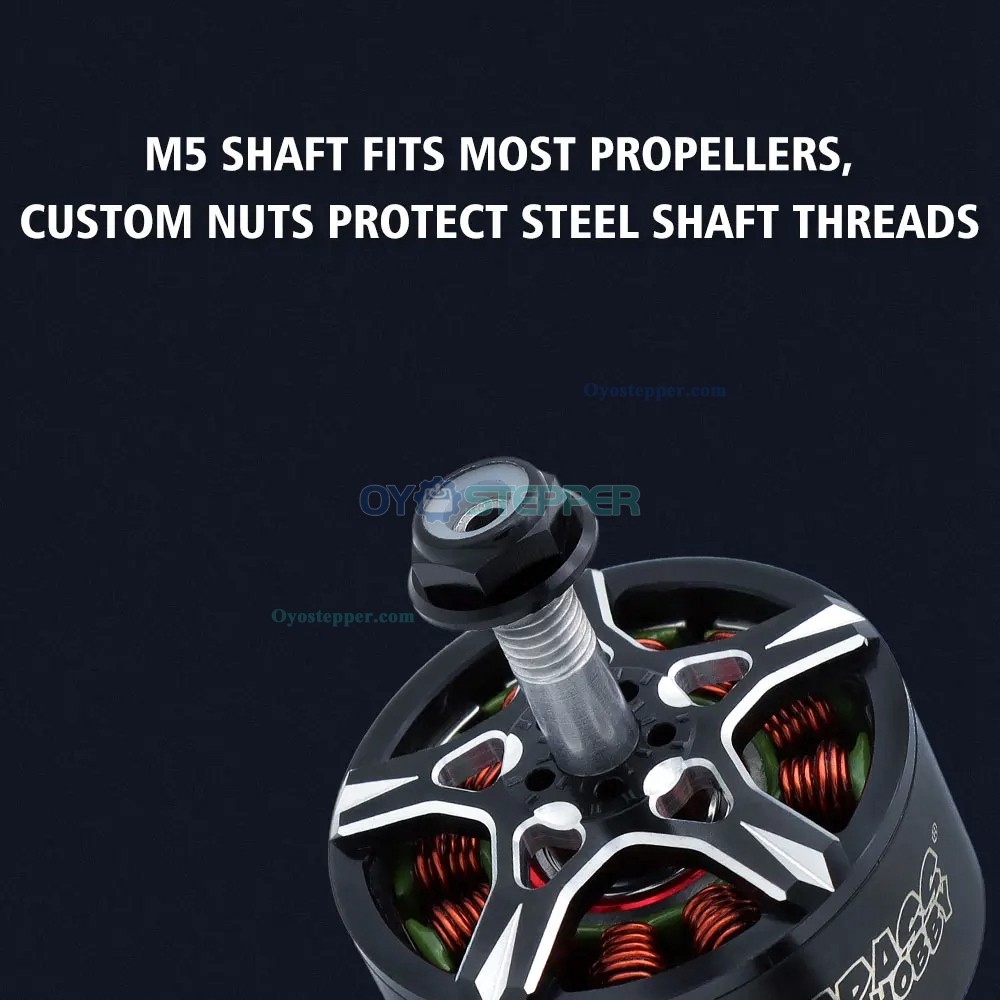

Shaft:M5 shaft 18AWG
Remote Distance:150m
Control Channels:3 Channels

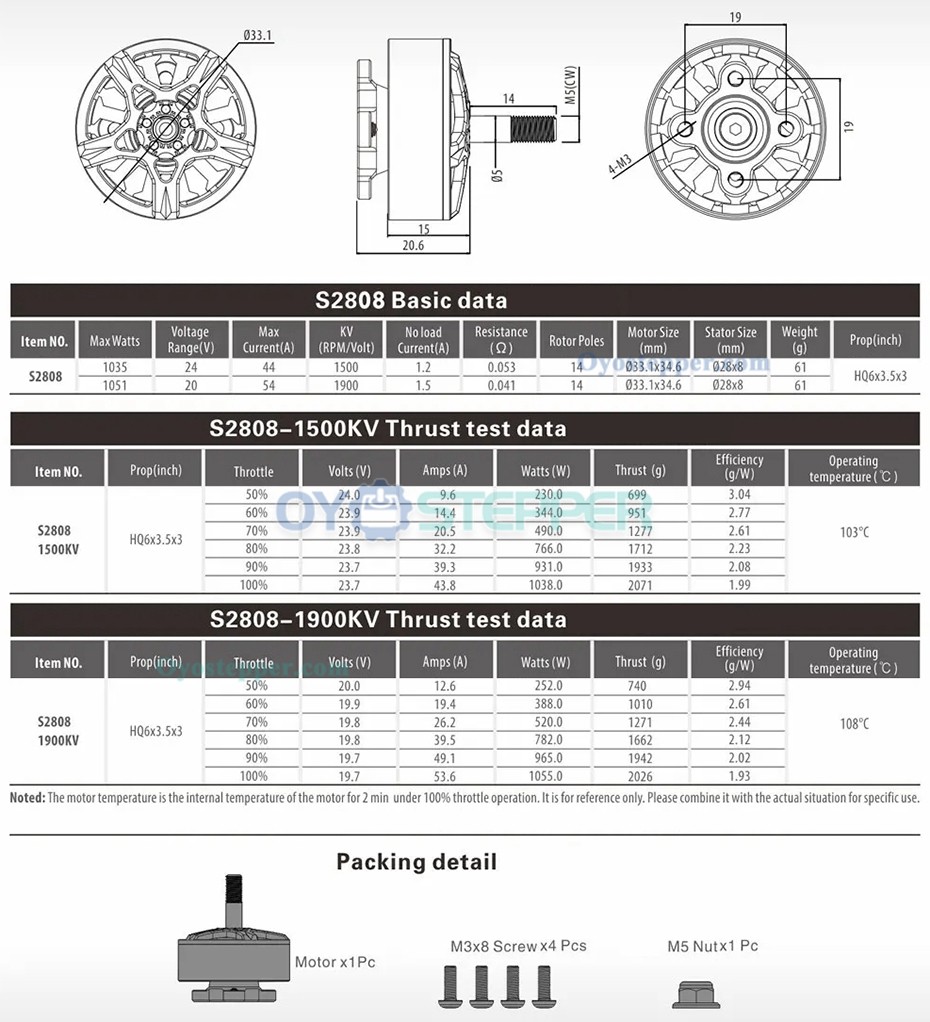

Motor Size:33.1.3x34.6
Stator size (mm):28x6.5mm
Propeller:HQ7 x3.5 /HQ6 x4 x3
Net Weight:61g

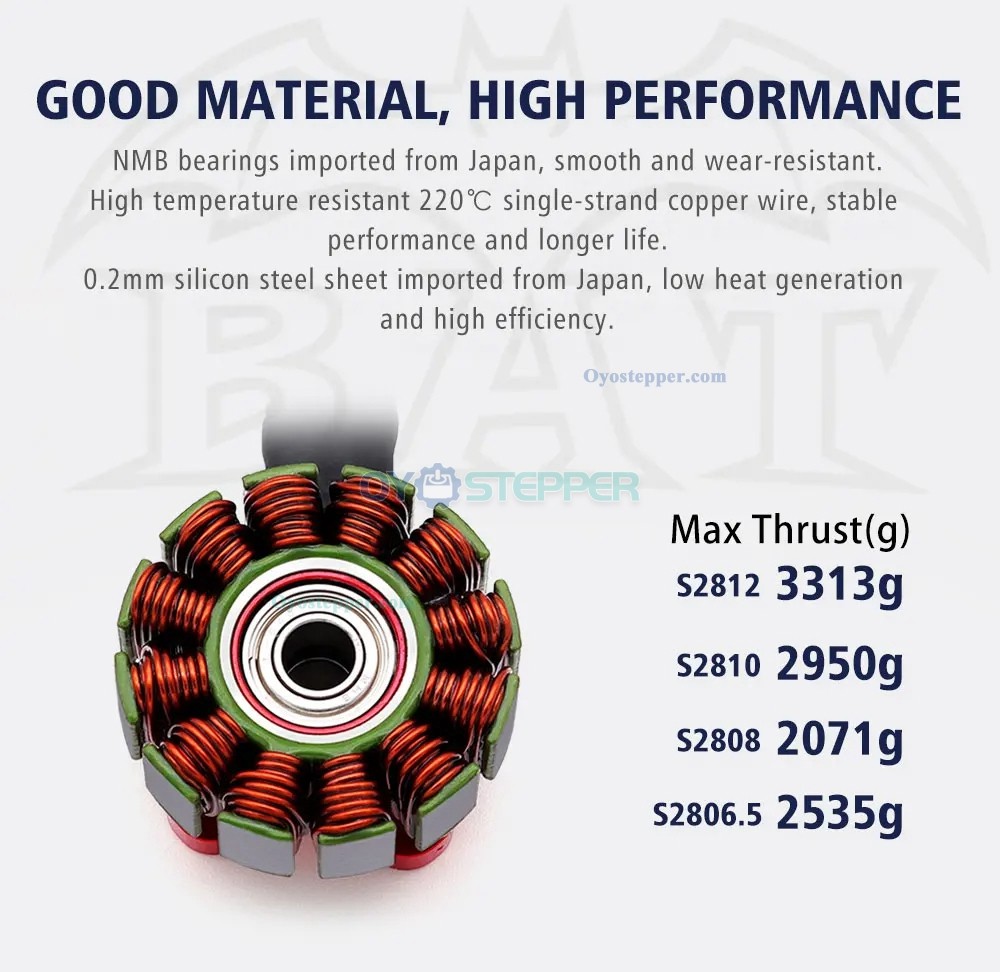

MAX Thrust(g)
S2806.5 2535g
S2807 2535g
S2808 2071g
S2810 2950g
S2812 3313g;
