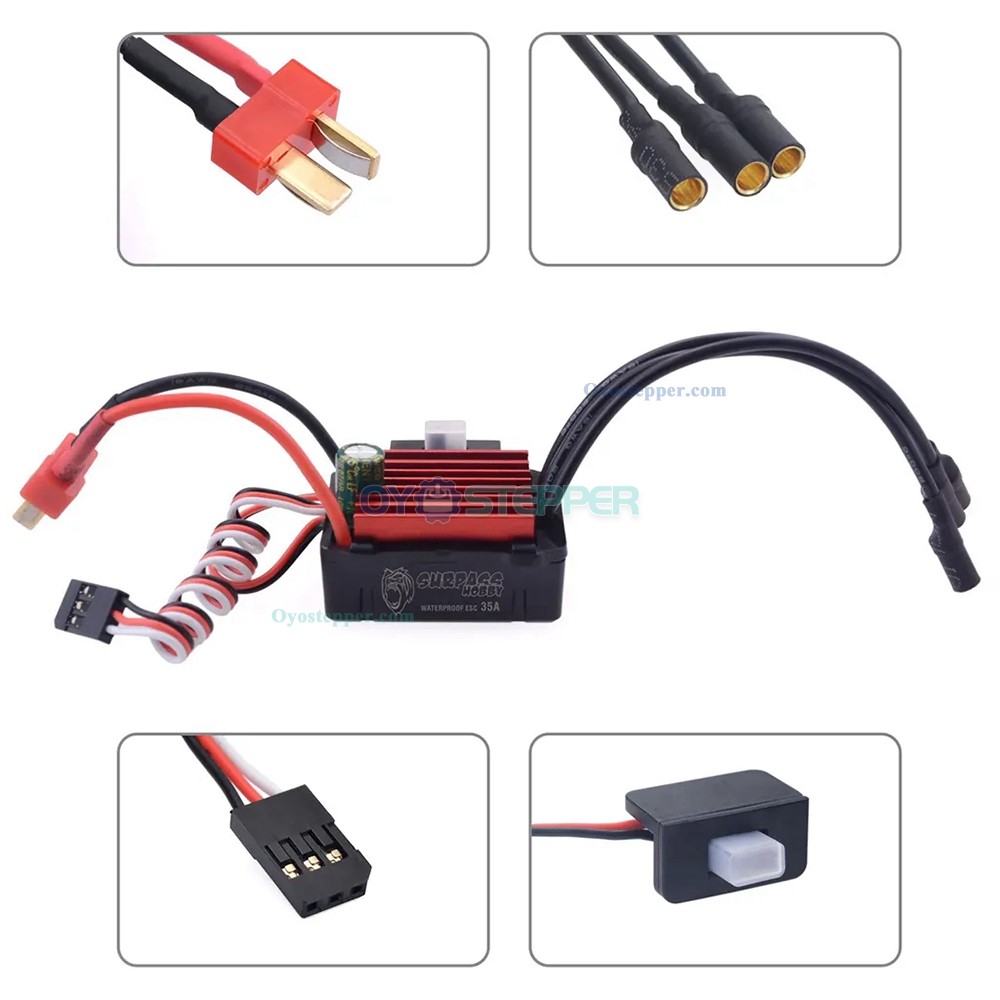

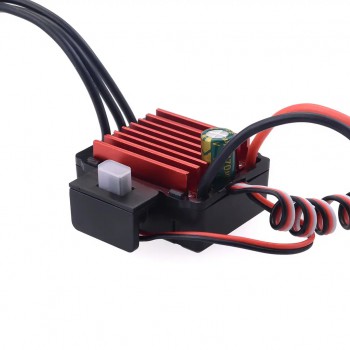

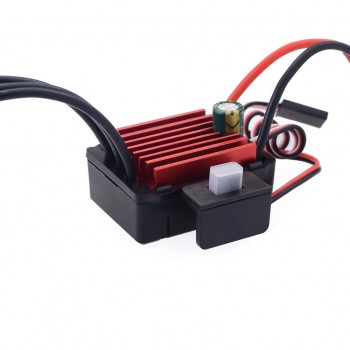

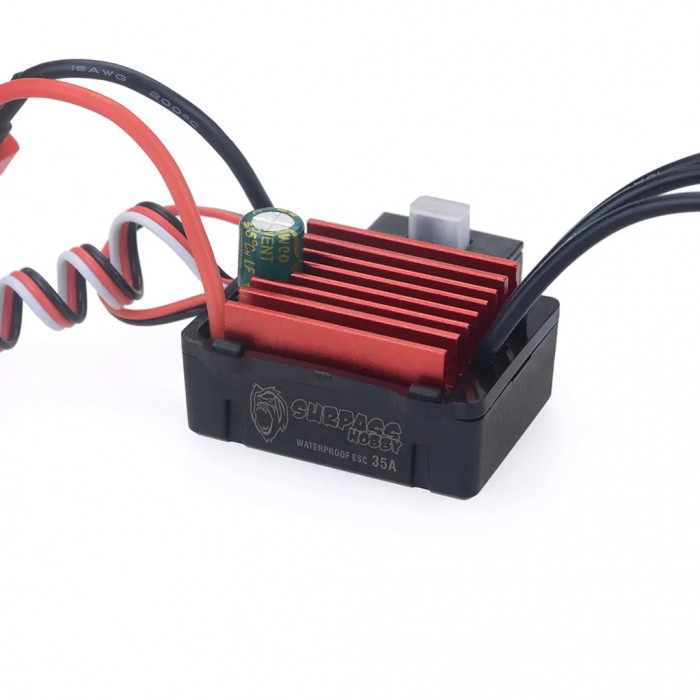

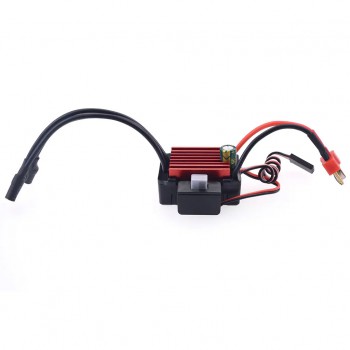

Surpass Hobby 35A Brushless ESC electronic Speed Controller T/XT60 Plug For RC Car Drone

Surpass Hobby 35A Brushless ESC electronic Speed Controller T/XT60 Plug For RC Car Drone

Features:

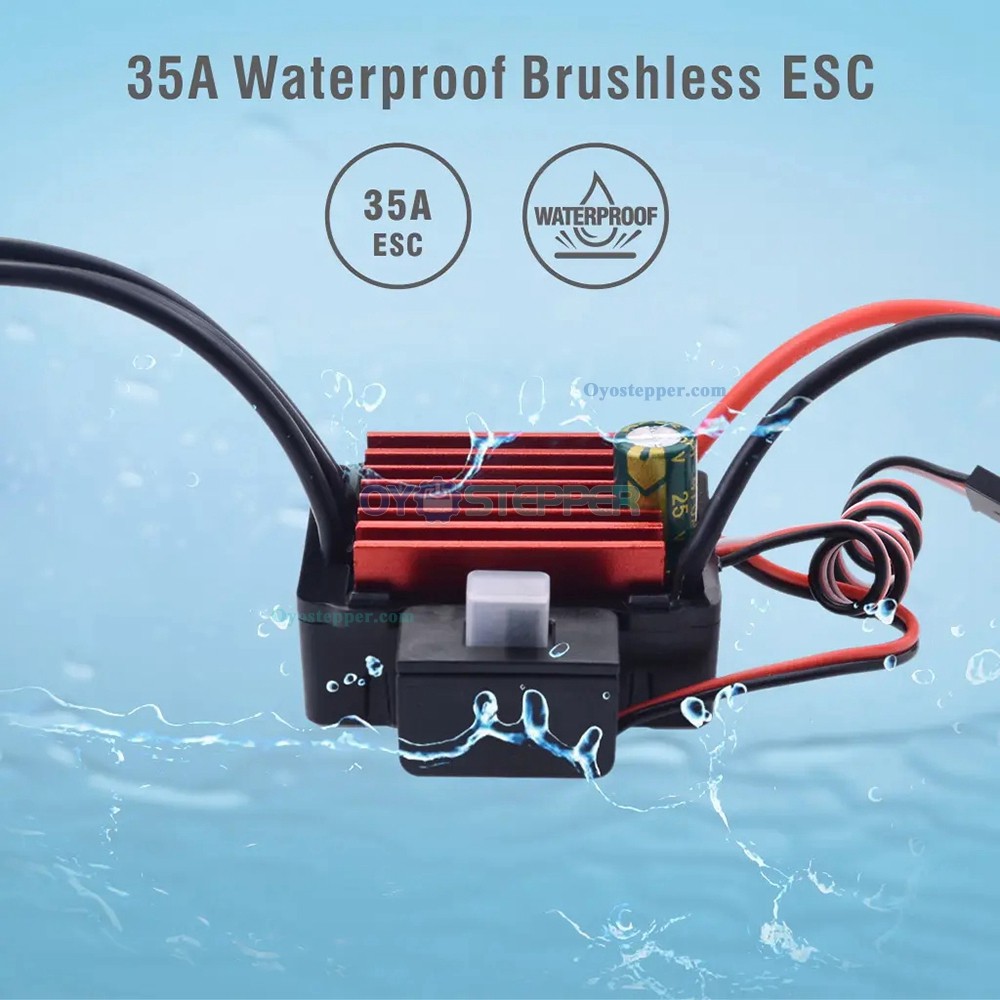

1. Water- proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car and drone.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability, heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for litium or nickel battery /Over-heat protection/Throte signal loss protection / Motor blocked protection.
6. Easily programmed and compatible with pocket-sized program card.


Specification:
Name: 35A ESC
Color: Red Black
Cont.Current/Burst Current: 35A / 120A
Motor type: sensorless brushless motor
1. Highway: Motor of size 28XX or smaller, KV <4000KV
2. Off-road vehicle: 28XX or smaller motor, KV <3000KV
Applicable Model: 1/16, 1/14 RC Car
Resistance: 0.0014 ohm
Batteries: 2~3S Lipo / 4-9Cells NiMH
BEC output: 5.0v / 2A (simulation mode)
Size: Approx.40 x 32 x 20mm / 1.6 x 1.3 x 0.8in
Weight: 37 g / 1.3 oz(approx.)
