Surpass Hobby S2806.5 1300KV /1700KV RC Quadcopter Model Brushless DC Motor for RC Drone FPV Racing

Surpass Hobby S2806.5 1300KV /1700KV RC Quadcopter Model Brushless DC Motor for RC Drone FPV Racing
NO.:S2806.5
Post a review
Our Price:$23.99

Quantity:- +

Add To Cart

Surpass Hobby S2806.5 1300KV /1700KV RC Quadcopter Model Brushless DC Motor (compatible HQ7x3.5 /HQ6x4 x3 Prop)



Features:
Waterproof design, durable material.
High teamperature resistant 220­°C;
14 poles, 12 slots, and CNC machined 6061-T6 aluminium cooling fin leads to efficient heat dissipation. Secondary oxidation treatment makes it durable.
High purity copper windings imizes efficiency, with high temperature resistance.
ABEC5 bearing is precision and stably, with low friction, better durability.
Ultra-thin silicon lamination behave high magnetic permeability, better insulation and heat resistance.

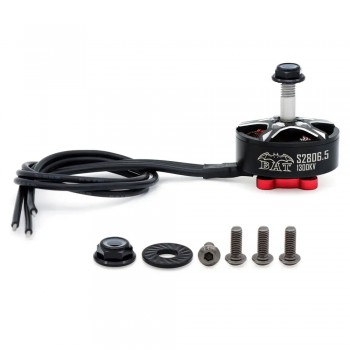

3.5mm gold plated connector, 4mm shaft, screws are included.
Balanced and smooth rotor can get reliability and imum RPM.



Specification:
Brand:Surpass Hobby
Model:S2806.5
Motor Type:FPV Motor
Rotor Poles:14
KV:1800KV / 2500KV
Power:1056W / 1170W
No load current:0.9-1.3Ω
Max Current(A):48A/51A
Voltage Range(V):24V
Bearings:NMB
Motor Size:32.9 x 33.1mm
Stator size (mm):28x6.5mm
Propeller:HQ7 x3.5 /HQ6 x4 x3
Net Weight:55g


MAX Thrust(g)
S2806.5 2535g
S2807 2535g
S2808 2071g
S2810 2950g
S2812 3313g;

Surpass Hobby S2806.5 1300KV /1700KV RC Quadcopter Model Brushless DC Motor for RC Drone FPV Racing

Surpass Hobby S2806.5 1300KV /1700KV RC Quadcopter Model Brushless DC Motor for RC Drone FPV Racing

Surpass Hobby S2806.5 1300KV /1700KV RC Quadcopter Model Brushless DC Motor for RC Drone FPV Racing

Surpass Hobby S2806.5 1300KV /1700KV RC Quadcopter Model Brushless DC Motor for RC Drone FPV Racing

Surpass Hobby S2806.5 1300KV /1700KV RC Quadcopter Model Brushless DC Motor for RC Drone FPV Racing

Surpass Hobby S2806.5 1300KV /1700KV RC Quadcopter Model Brushless DC Motor for RC Drone FPV Racing

Surpass Hobby S2806.5 1300KV /1700KV RC Quadcopter Model Brushless DC Motor for RC Drone FPV Racing

Surpass Hobby S2806.5 1300KV /1700KV RC Quadcopter Model Brushless DC Motor for RC Drone FPV Racing

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: SURPASS Hobby S2306.5 1800KV / 2500KV FPV Brushless DC Motor FPV Drone Motor
Next: Surpass Hobby S2808 1500KV /1900KV FPV Motor Boat RC Motor for Unmanned Aerial Vehicle Remote Control Helicopter
BLDC Motor Specification
No. of Phases 14
Rated Voltage(V) 24
Physical Specification
Body Length(mm) 33.1
Shaft Type compatible HQ7x3.5 Prop / compatible HQ6x4x3 Prop
Weight(g) 55
Product Type FPV Motor
Product Series s2806.5
