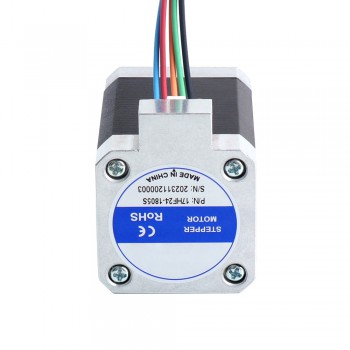

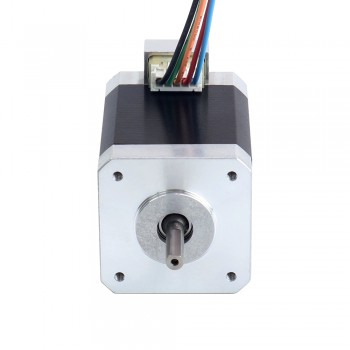

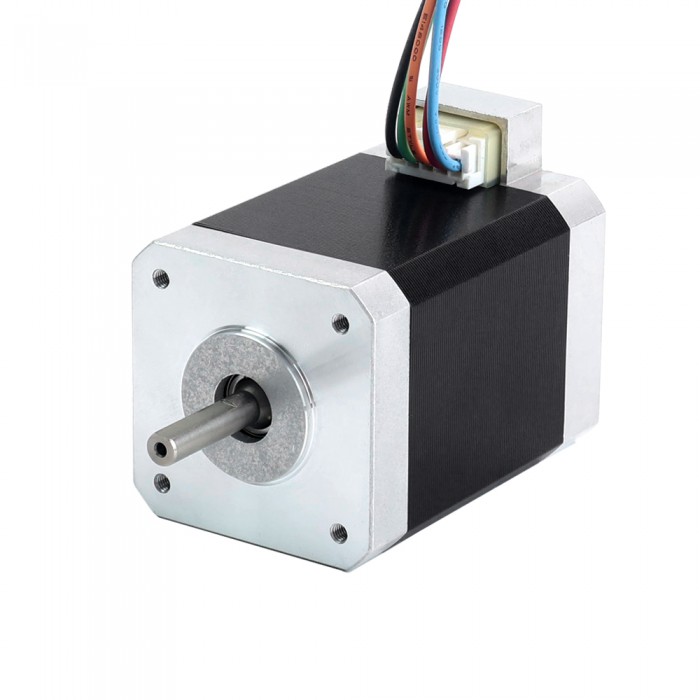

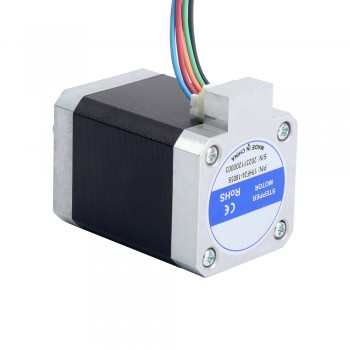

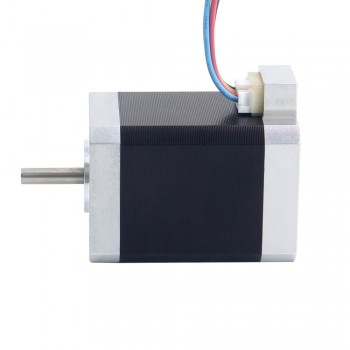

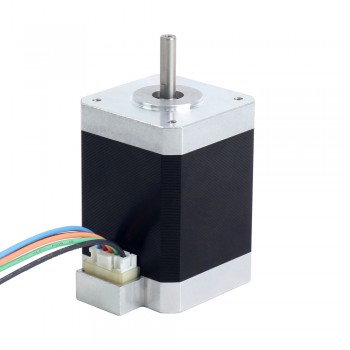

Nema 17 Stepper Motor 5 Phase 0.5Nm 0.72deg 1.8A 42x42x60mm 5 Wires

Nema 17 Stepper Motor 5 Phase 0.5Nm 0.72deg 1.8A 42x42x60mm 5 Wires
NO.:17HF24-1805S
Review: Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$79.45
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $75.48 5%
10 $73.89 7%
50 $71.51 10%
100 $69.12 13%
Add To Cart

Nema 17 Stepper Motor 5 Phase 0.5Nm 0.72deg 1.8A 42x42x60mm 5 Wires



This is a 5-phase stepper motor with a rated current of 1.8A and a holding torque of 0.5Nm(70.81oz.in). Compared to 2-phase stepper motors, 5-phase stepper motors have higher resolution, lower vibration, lower noise, etc. It is can be used in printing industry, medical equipment, optoelectronics industry, instrumentation industry and other fields that require high precision.



Electrical Specification

Manufacturer Part Number: 17HF24-1805S

Number of phase: 5

Step Angle: 0.72deg

Holding Torque: 0.5Nm(70.81oz.in)

Rated Current/Phase: 1.8A

Phase Resistance: 0.64±10%ohms

Inductance: 0.6mH±20%(1KHz)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 60mm

Shaft Diameter: Φ5mm

Shaft Length: 20mm

Number of Leads: 5

Lead Length: 300mm

Weight: 0.5kg



Connection

Pin A B C D E
Color Black Green Orange Red Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Surpass Hobby 60A Brushless ESC Electronic Speed Controller for RC Car Drone
Next: 5-Phase Variable Reluctance Stepper Motor 3.2Nm(453.16oz.in) 3A Φ9mm 6 Wires 90 x 90 x 67mm
Electrical Specification
Inductance(mH) 0.60
Phase Resistance(ohm) 0.64
Has Torque/Thrust Curve? No
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 50
Holding Torque (oz.in) 70.81
Rated Current (A) 1.8
Step Angle(deg.) 0.72
Product Type Hybrid Stepper Motor
Physical Specification
IP Rating 40
Body Length(mm) 60
Frame Size(mm) Nema 17 (42 x 42)
Lead Length(mm) 300
No. of Lead 5
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Single Shaft/Dual Shaft Single Shaft
Output Shaft Type D
Inventory Method Dedicated Inventory
