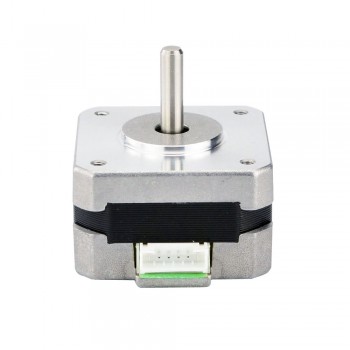

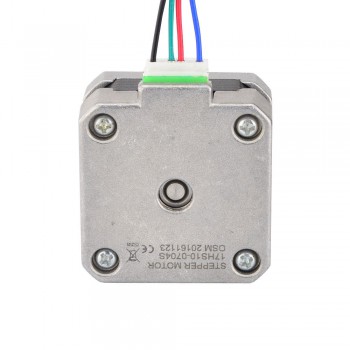

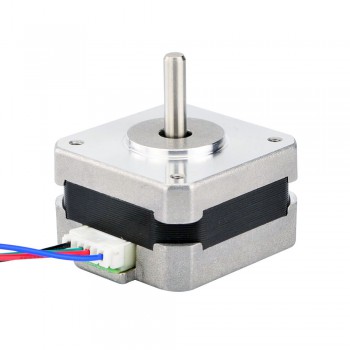

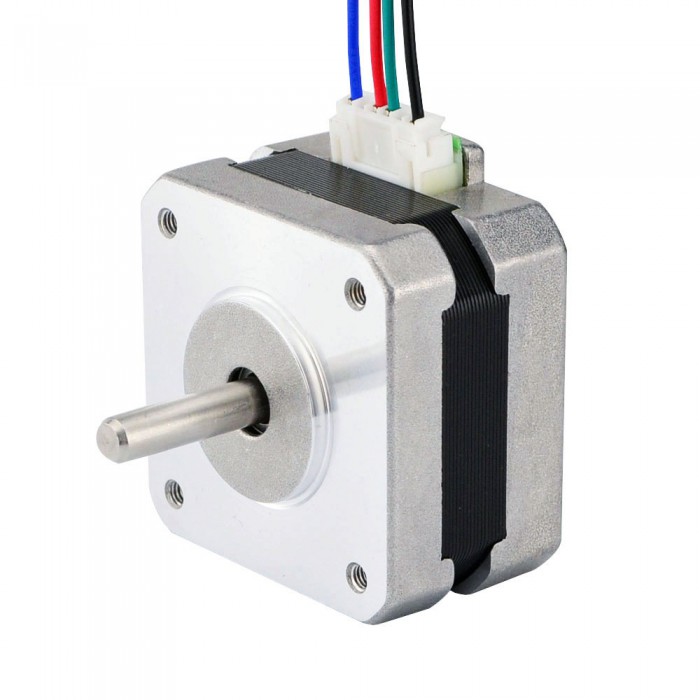

Nema Size 17 Stepper Motor Bipolar 1.8 Deg 18Ncm (25.5oz.in) 0.7A 2.9V 42x42x25mm 4 Wires 17HS10-0704S
-
Manuals and Documentation:
Full Datasheet:
Torque Curver:
Our Price:$10.12
This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x25mm. It has 4 wires, each phase draws current 0.7A, with holding torque 18Ncm (25.5oz.in).
Electrical Specification
Manufacturer Part Number: 17HS10-0704S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 18Ncm(25.5oz.in)
Rated Current/phase: 0.7A
Voltage: 2.9V
Phase Resistance: 4.2ohms
Inductance: 5.5mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 25mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
Number of Leads: 4
Lead Length: 300mm
Weight: 180g

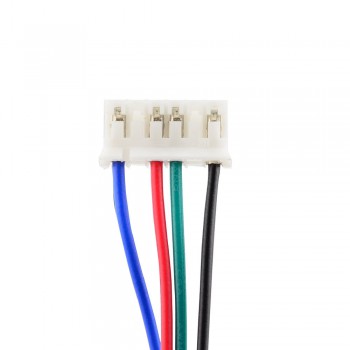

Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 18 |
| Holding Torque (oz.in) | 25.5 |
| Inductance(mH) | 5.5 |
| Phase Resistance(ohm) | 4.2 |
| Rated Current (A) | 0.7 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 25 |
| Frame Size(mm) | 42x42 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | O |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 180 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
