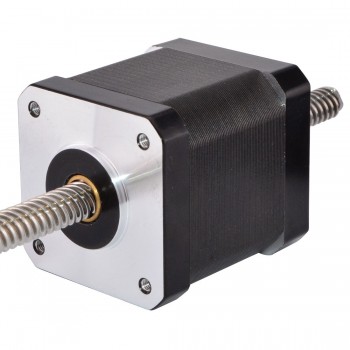

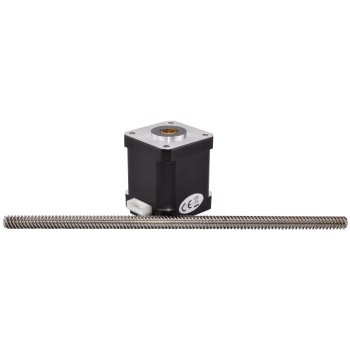

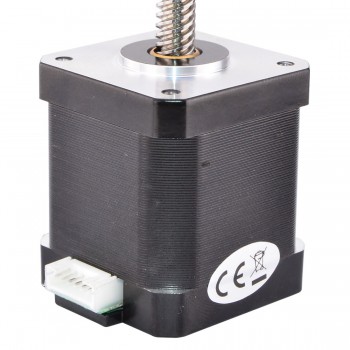

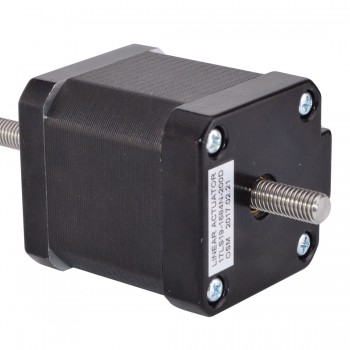

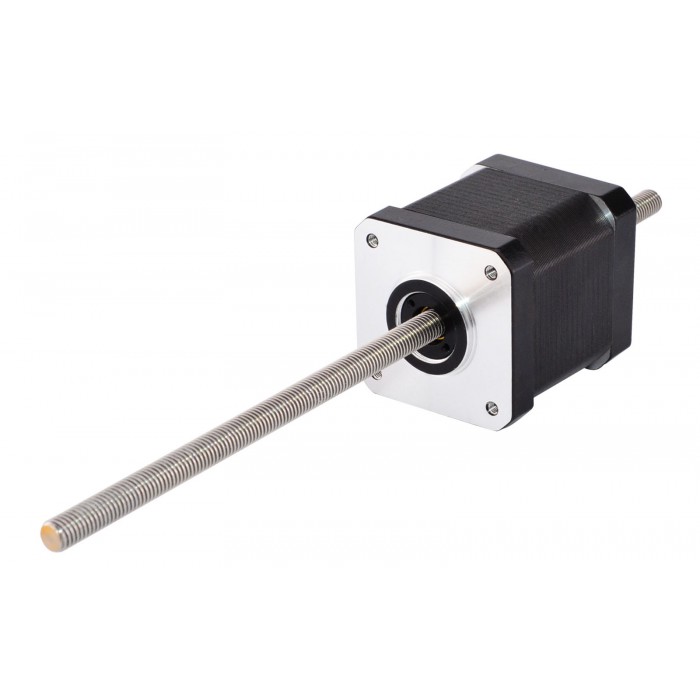

Nema 17 Non-captive Stepper Motor Linear Actuator 1.8 Degree 44Ncm(62.3oz.in) 1.68A 2.8V 4 Wires
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
This model is economy linear stepper motor which named Nema 17 non-captive linear actuator, it was composed of 48mm 1.8 degree 0.4A Nema 17 stepper motor and 200mm length Tr6.35x2 linear screw.
Electrical Specification
Manufacturer Part Number: 17LS19-1684N-200D
Motor Type: Non Captive Linear Stepper
Step Angle: 1.8 deg
Holding Torque: 44Ncm(62.3oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.65ohms
Voltage: 2.8V
Inductance: 3mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 200mm（7.874"）
Lead Screw Diameter: Φ6.35mm（0.025"）
Lead /Step: 0.01mm(0.0003937" )
Lead/Revolution: 2mm（0.0787"）
Number of Leads: 4
Lead Length: 400mm
Weight : 400g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Gray
|
Yellow
|
Green
|
Resources
Full Datasheet: 17LS19-1684N-200D.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 44 |
| Holding Torque (oz.in) | 62.3 |
| Inductance(mH) | 2.8 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 1.65 |
| Rated Current (A) | 1.68 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 48 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 200 |
| Lead Revolution(mm) | 2 |
| Linear Travel / Step(mm) | 0.01 |
| No. of Lead | 4 |
| Lead Length(mm) | 400 |
| Frame Size(mm) | Nema 17 (42 x 42) |
