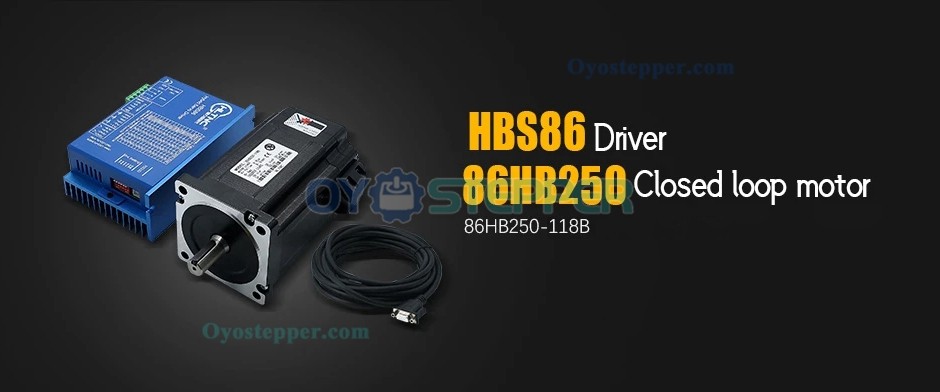

HLTNC Nema 34 Close Loop Stepper Motor 1.8Deg 8N.m (1143oz.in)& HBS86 Driver Kit With Brake
Special Offer in Black Friday 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$195.00
HLTNC Nema34 Close Loop Stepper Motor Kit 86HB250-118B-HBS86 Brake 1.8Deg 8N.m with HBS86 Driver + Brake
Specifications:
Certification: CE
Model Number: 86HB250-118B HBS86

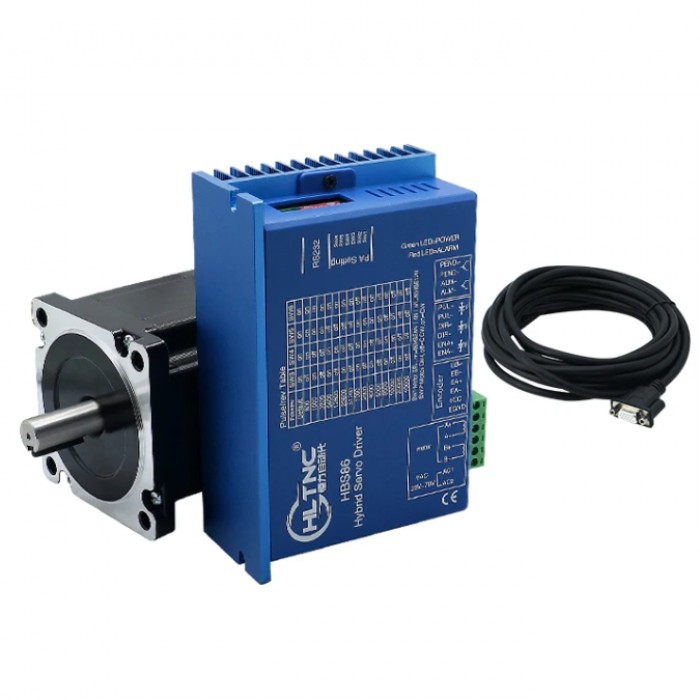

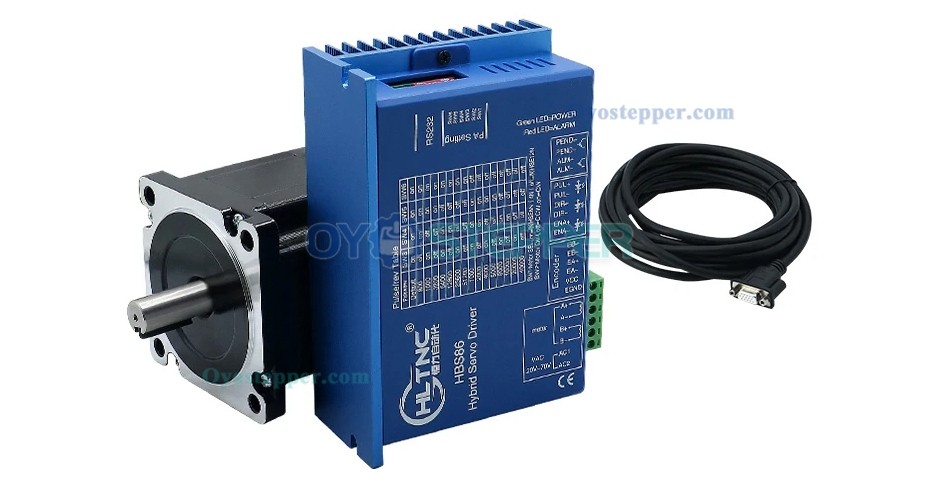

Name: Nema34 Close Loop Stepper Motor and Driver

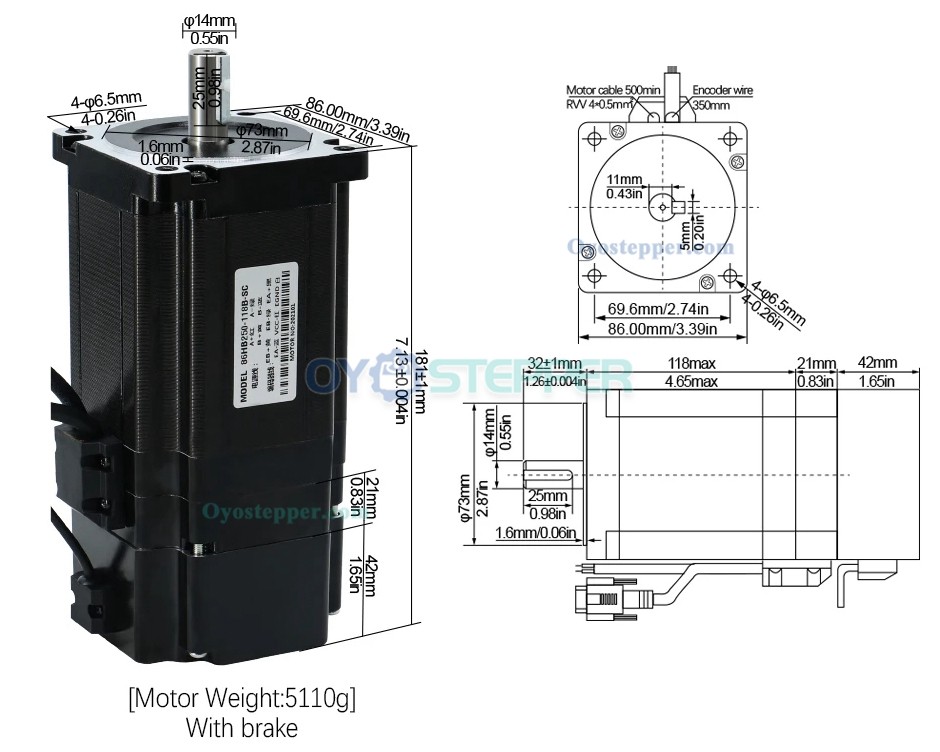

Close Loop Motor: 86HB250-118B

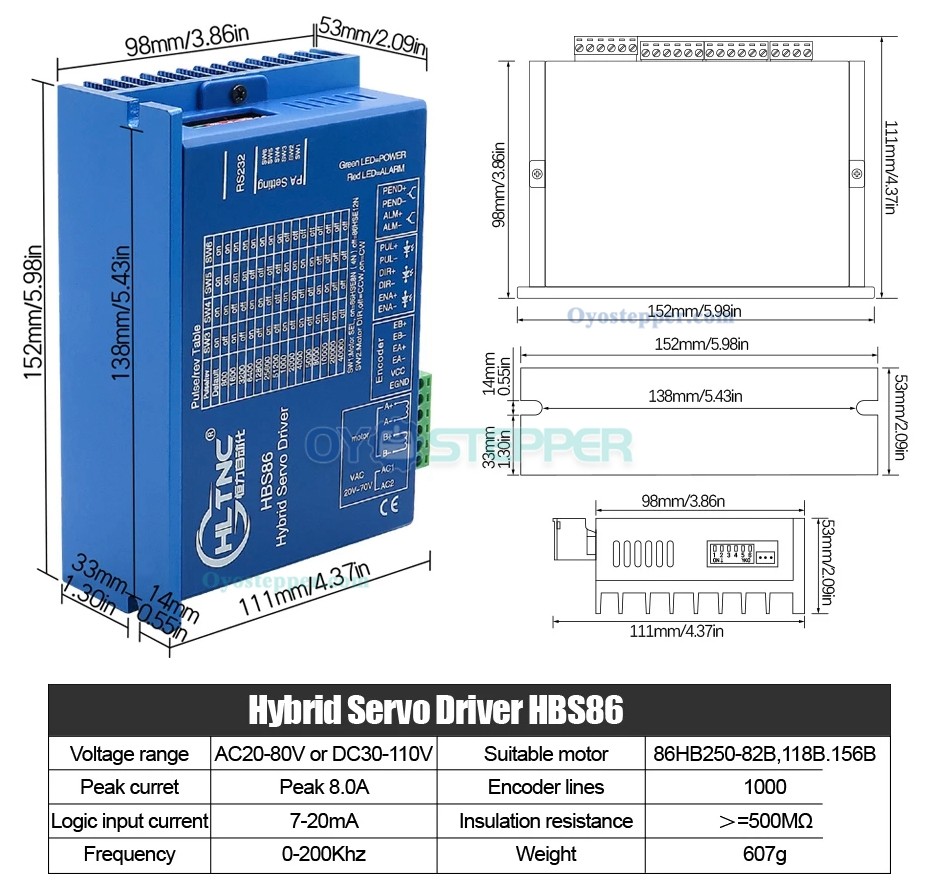

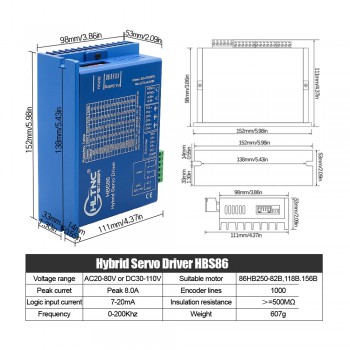

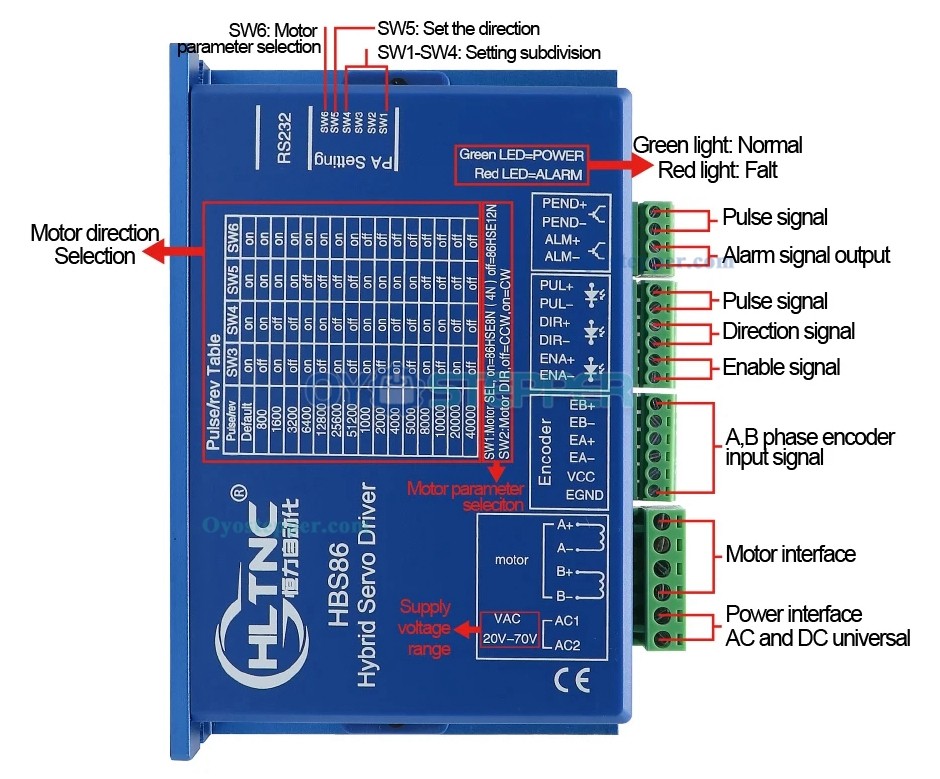

Motor Driver: HBS86
Encoder Cable: 3M
Holding torque: 8N.m
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| CNC Kit Specification | |
|---|---|
| No of Axis | Single Axis |
| Open-loop/Closed-loop | Closed-loop |

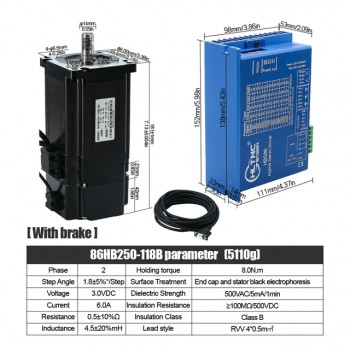

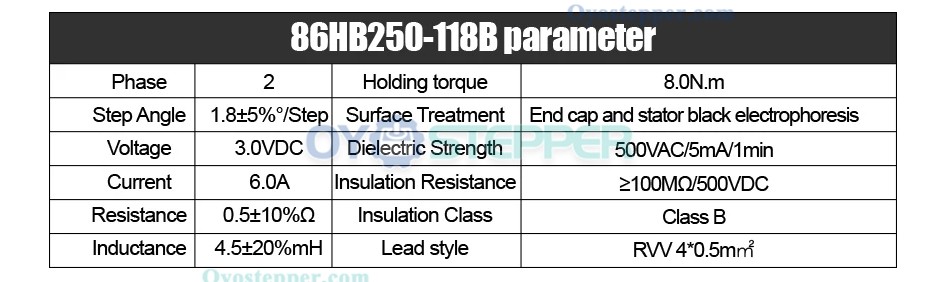

| Motor Specification | |
| Holding Torque (Ncm) | 800 |
| Holding Torque (oz.in) | 1133.14 |
| Inductance(mH) | 4.5 |
| Motor Nema Size | 34 |
| Phase Resistance(ohm) | 0.5 |
| Rated Current (A) | 6 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 32 |
| Shaft Type | Keyway |
| Single Shaft/Dual Shaft | Single Shaft |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Body Length(mm) | 181 |
| Motor Length(mm) | 118 |
