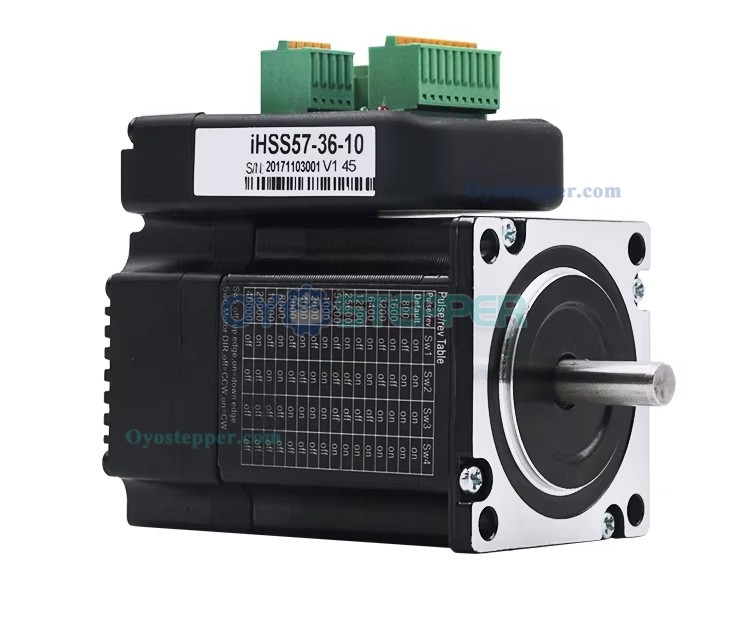

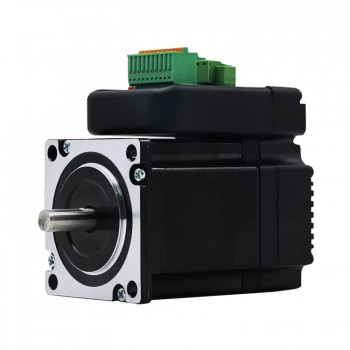

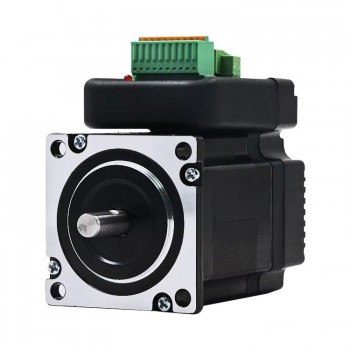

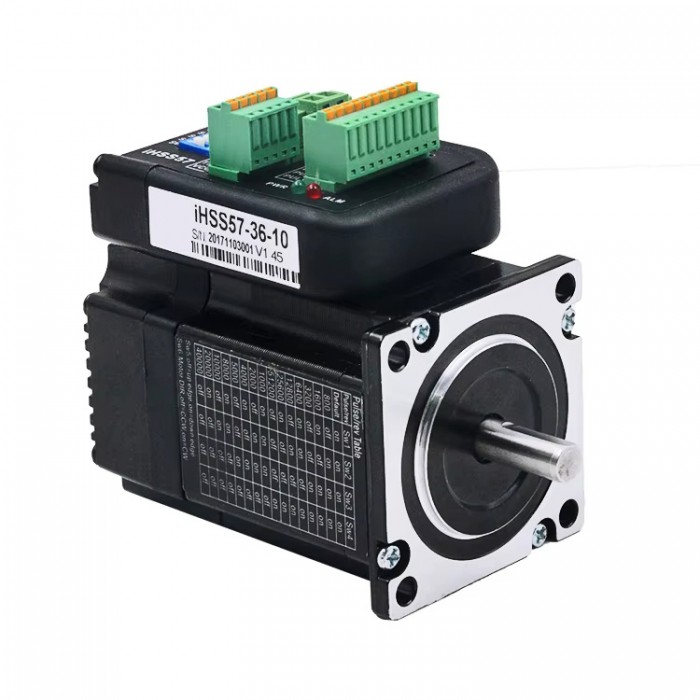

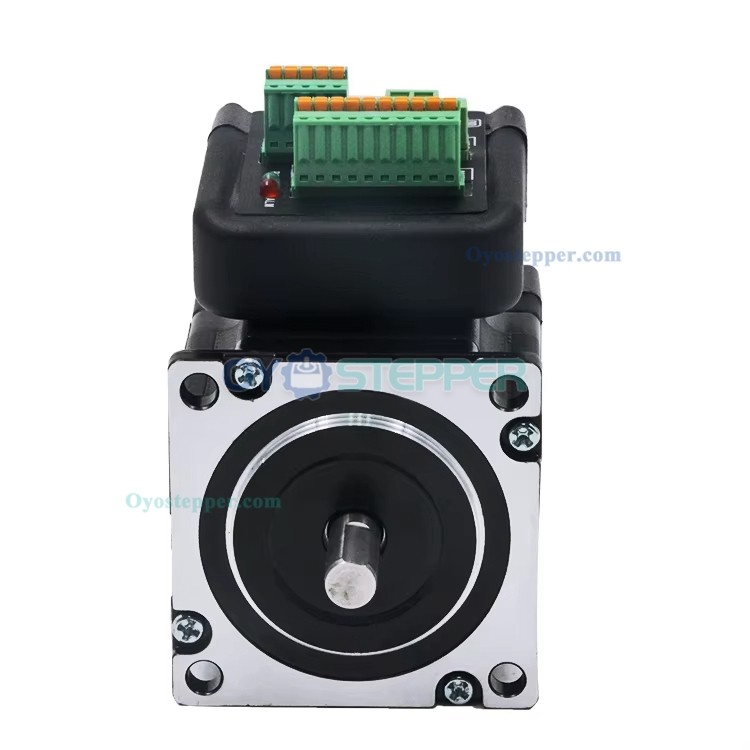

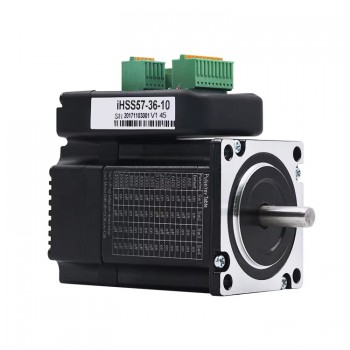

JMC NEMA 23 Closed Loop Integrated Stepper Motor 1.8 Deg 1Nm/2Nm/3Nm 4A/5A 36V 2 Phase 42 x 42mm

JMC NEMA 23 Closed Loop Integrated Stepper Motor 1.8 Deg 1Nm/2Nm/3Nm 4A/5A 36V 2 Phase 42 x 42mm
NO.:IHSS57-36-10/20/SC
Post a review
Our Price:$87.99

Quantity:- +

Add To Cart

JMC NEMA 23 Closed Loop Integrated Stepper Motor 1.8 Deg 1Nm/2Nm/3Nm 4A/5A 36V 2 Phase 42 x 42mm

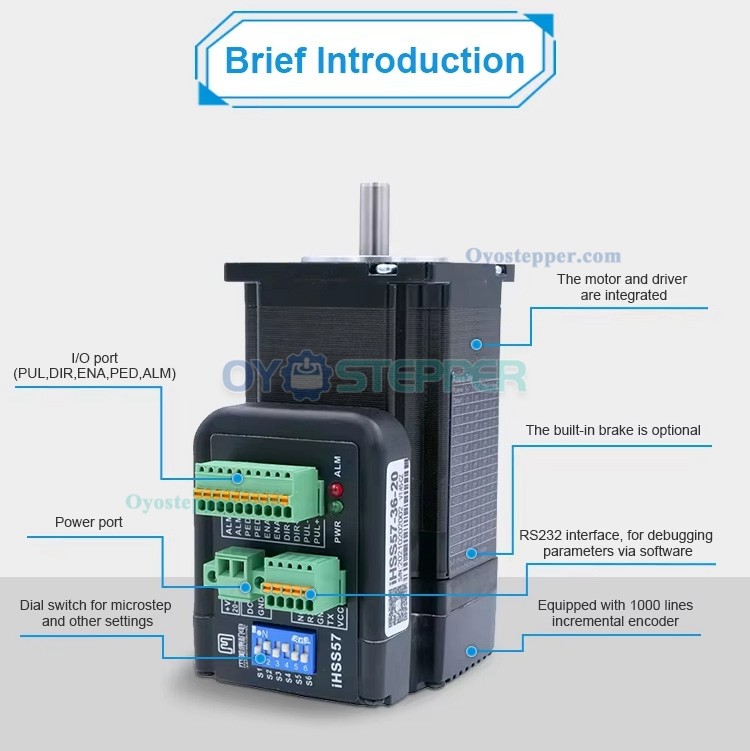

2 in 1 motor and driver, saving space. Full closed loop, precise position and speed control for demanding application requirements. High resolution encoder provides precise positional accuracy. Double pulse control, smooth and precise. Stable performance, low heat, high efficiency.



Features:

Integrated compact size for saving mounting space;

Without losing step, high accuracy in positioning;

100% rated output torque;

Variable current control technology, high current efficiency;

Small vibration, smooth and reliable moving at low speed;

Accelerate and decelerate control inside, significant improvement in smoothness of starting or stopping the motor.;

User-defined micro steps;

No adjustment in general applications;

Over current, over voltage and over position error protection;

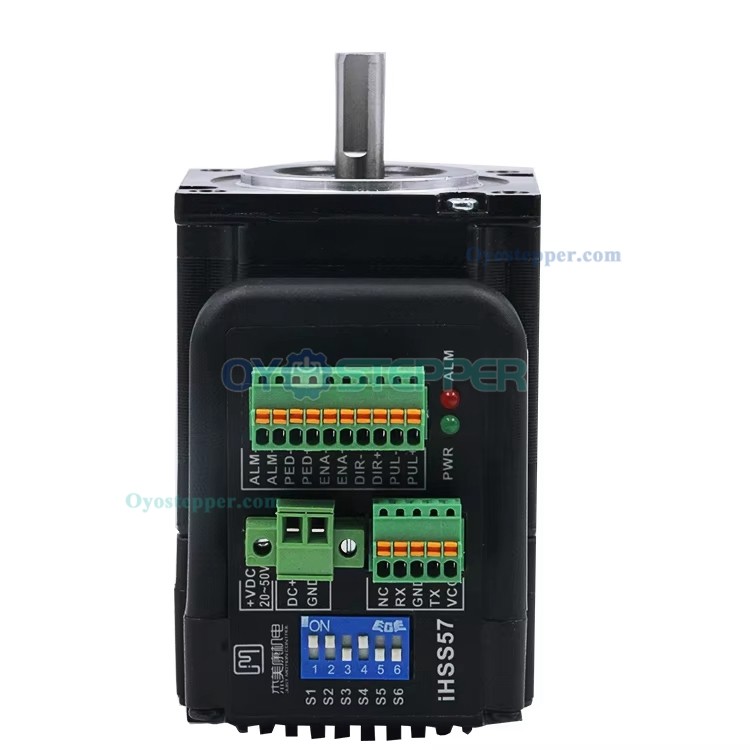

Green light means running while red light means protection or off line.



Application:

Suitable for small milling machines, 3D-printers, lathes, robots, winding machines or general positioning.

Compatible with CNC controls such as Beamicon. Estlcam, Mach3, Eding, Linuxcnc and many more.



Electrical Specifications:

Manufacturer Part Number:IHSS57-36-10

Number of Phase:2

Step Angle:1.8 deg

Step Angle Accuracy:±0.09°

Holding Torque:1Nm(141.61oz.in)

Rated Current/phase:4A

Rated Voltage:36VDC

Power Supply:24-50VDC(Typical 36V)

Encoder line: 1000 lines

Resistance/phase:0.44Ω±10%

Inductance/phase:1.4MH±20%

Temperature Rise Max:80℃

Dielectric Strength:500VDC

Rotor Inertia:280g.cm²

Pulse Frequency: max. 200 kHz

Radial Play:Max 0.025mm (load 450g)

Axial Play:Max 0.075mm (load 920g);



Physical Specifications:

Frame Size: 57 x 57mm

Body Length:108mm

Shaft Length:21 mm

Shaft Diameter: Φ8mm

D-cut Length:15mm

Weight: 0.95kg;



JMC NEMA 23 Closed Loop Integrated Stepper Motor 1.8 Deg 1Nm/2Nm/3Nm 4A/5A 36V 2 Phase 42 x 42mm

JMC NEMA 23 Closed Loop Integrated Stepper Motor 1.8 Deg 1Nm/2Nm/3Nm 4A/5A 36V 2 Phase 42 x 42mm



JMC NEMA 23 Closed Loop Integrated Stepper Motor 1.8 Deg 1Nm/2Nm/3Nm 4A/5A 36V 2 Phase 42 x 42mm



JMC NEMA 23 Closed Loop Integrated Stepper Motor 1.8 Deg 1Nm/2Nm/3Nm 4A/5A 36V 2 Phase 42 x 42mm



JMC NEMA 23 Closed Loop Integrated Stepper Motor 1.8 Deg 1Nm/2Nm/3Nm 4A/5A 36V 2 Phase 42 x 42mm



JMC NEMA 23 Closed Loop Integrated Stepper Motor 1.8 Deg 1Nm/2Nm/3Nm 4A/5A 36V 2 Phase 42 x 42mm

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: JMC Nema17 Integrated Closed Loop Stepper Motor 1.8 Deg 0.7Nm 24V 2 Phase 42 x 42mm Hybrid Servo Motor
Next: JMC NEMA 23 Closed Loop Integrated Stepper Motor 1.8 Deg 3Nm 5A 36V 2 Phase 60 x 60mm
Electrical Specification
Holding Torque (Ncm) 100
No. of Phase 2
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 108
Frame Size(mm) 57x57
Shaft Diameter(mm) 8
Shaft Length(mm) 15
Shaft Type D-cut
