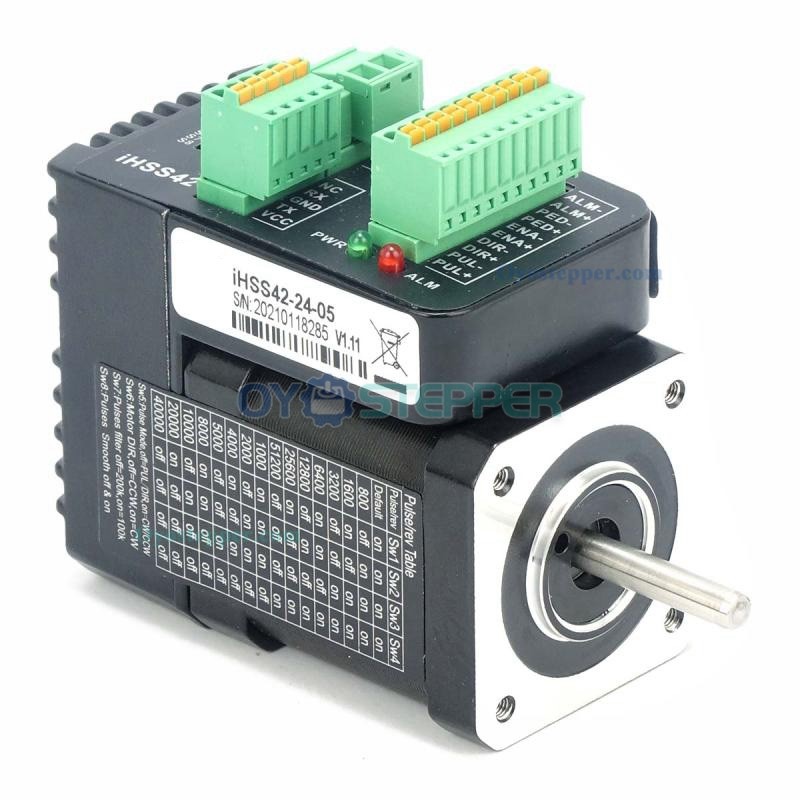

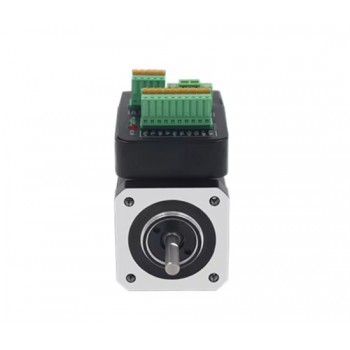

Integrated closed-loop stepper motor with encoder and driver. The system includes a 1000-line optical encoder for position feedback to help maintain positioning.

Features:

Closed-loop control with position feedback

Fault signal output

Variable current control

Protections: over-current, over-voltage, step-loss

Control: pulse/direction, enable signal

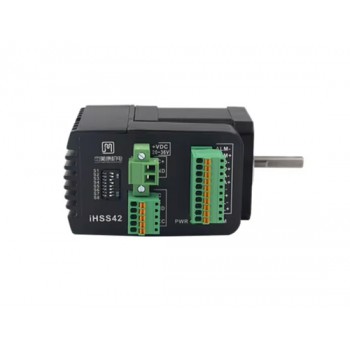

Integrated compact design

Status indicators: green/red LED

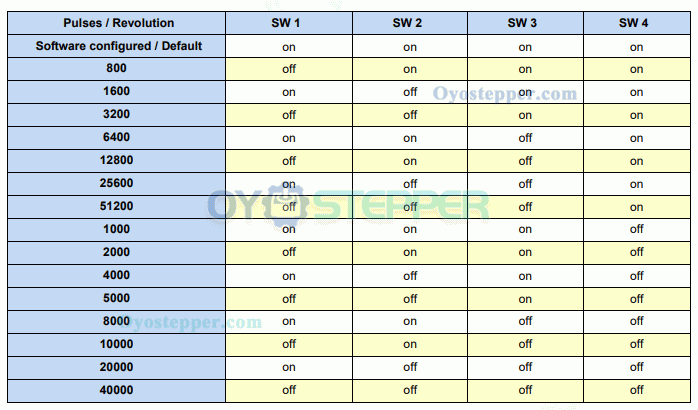

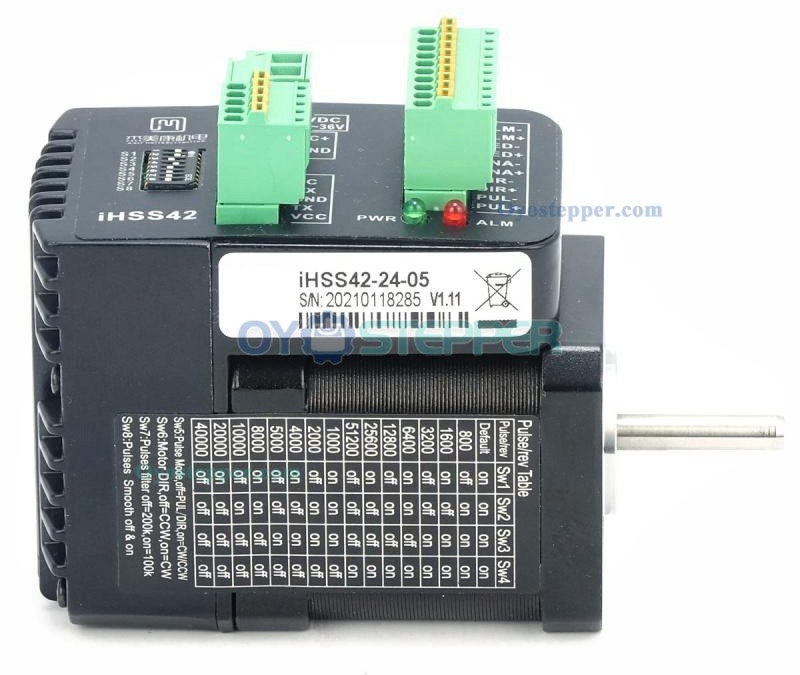

Configuration: DIP switch or software

Communication: RS232

Application:

Used for small milling machines, 3D-printers, lathes, robots, winding machines or general positioning.

Compatible with CNC controls such as Beamicon. Estlcam, Mach3, Eding and Linuxcnc.

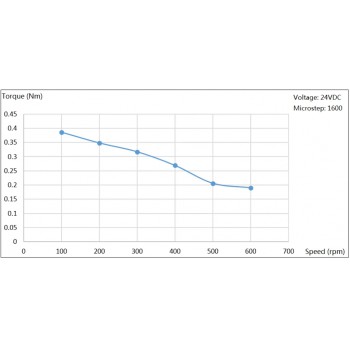

Electrical Specifications:

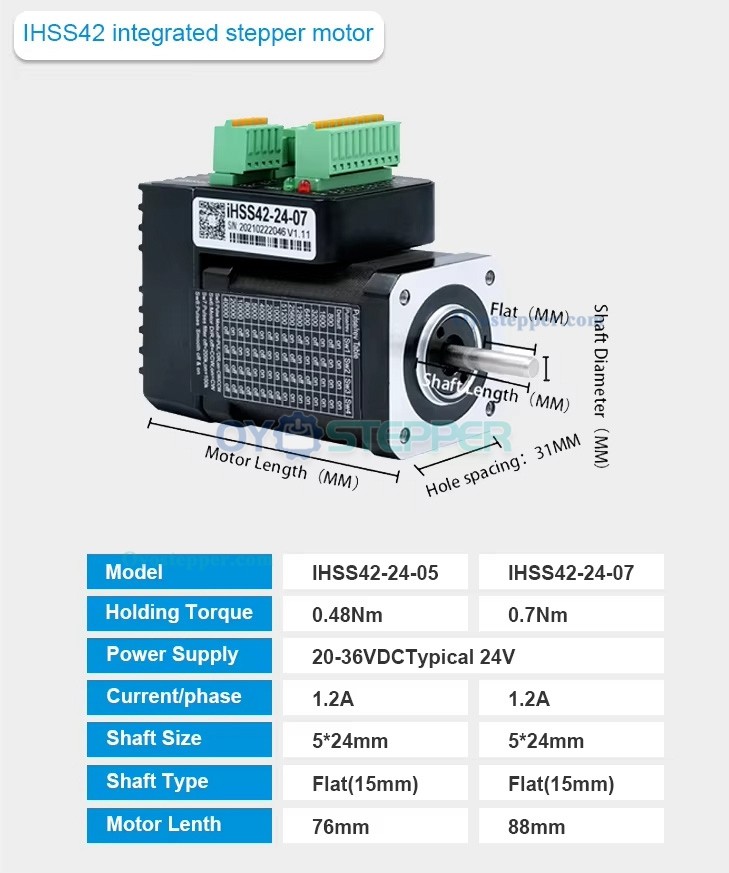

Manufacturer Part Number:iHSS42-24-05

Number of Phase:2

Step Angle:1.8 deg

Step Angle Accuracy:±0.09°

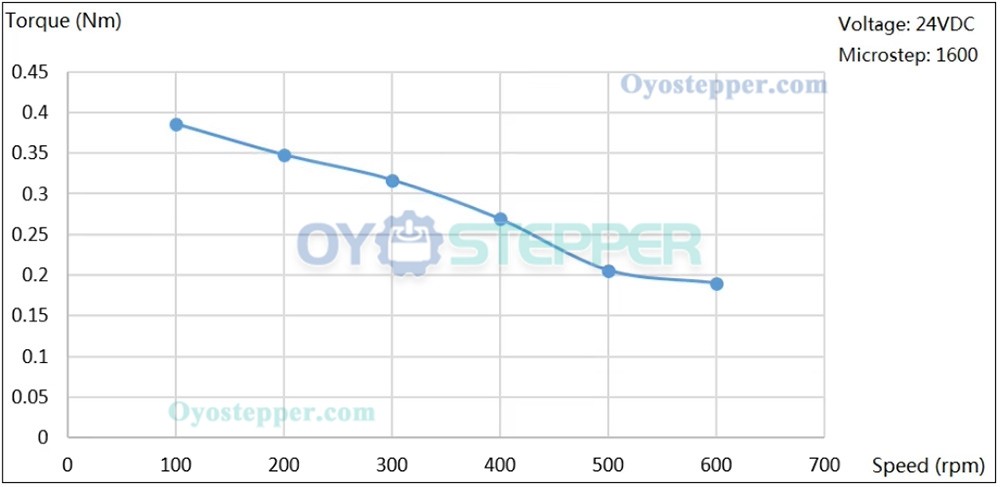

Holding Torque:0.48Nm(67.97 oz.in)

Rated Current/phase:1.2A

Voltage:24-50VDC

Power Supply:20-36VDC;

Encoder:1000line

Resistance/phase:3.1Ω±10%

Inductance/phase:7.9MH±20%

Temperature Rise Max:80℃

Rotor Inertia:77g.cm²

Dielectric Strength:500VDC

Insulation Resistance:100MOHM (500VDC);

Radial Play:Max 0.025mm (load 450g);

Axial Play:Max 0.075mm (load 920g);

Insulation Class:B

Physical Specifications:

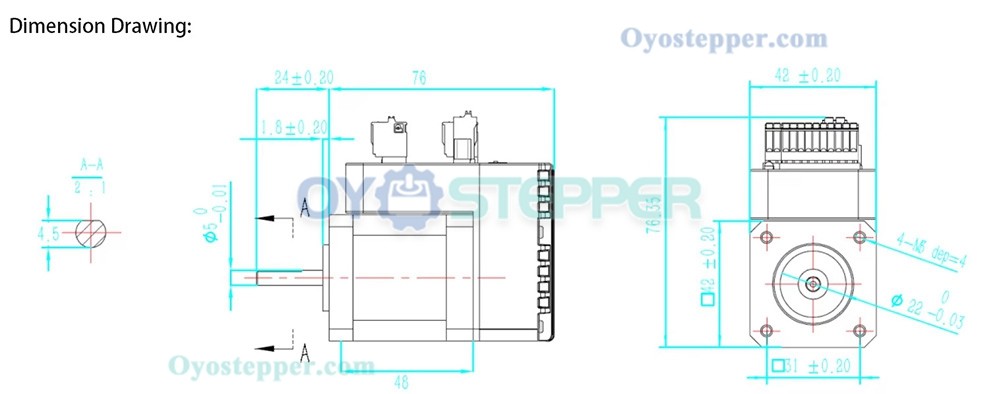

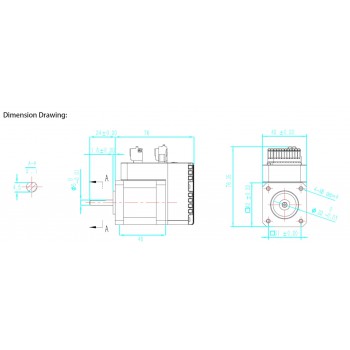

Frame Size: 42 x 42mm

Body Length:76mm

Shaft Length:24 mm

Shaft Diameter: Φ5 mm

D-cut Length:15mm

Weight: 0.6kg;
