JMC NEMA 23 Closed Loop Integrated Stepper Motor 1.8 Deg 3Nm 5A 36V 2 Phase 60 x 60mm

JMC NEMA 23 Closed Loop Integrated Stepper Motor 1.8 Deg 3Nm 5A 36V 2 Phase 60 x 60mm

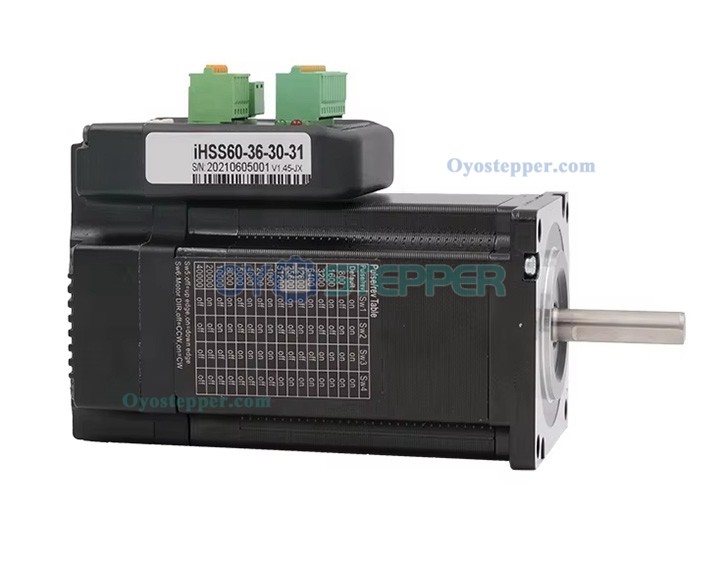

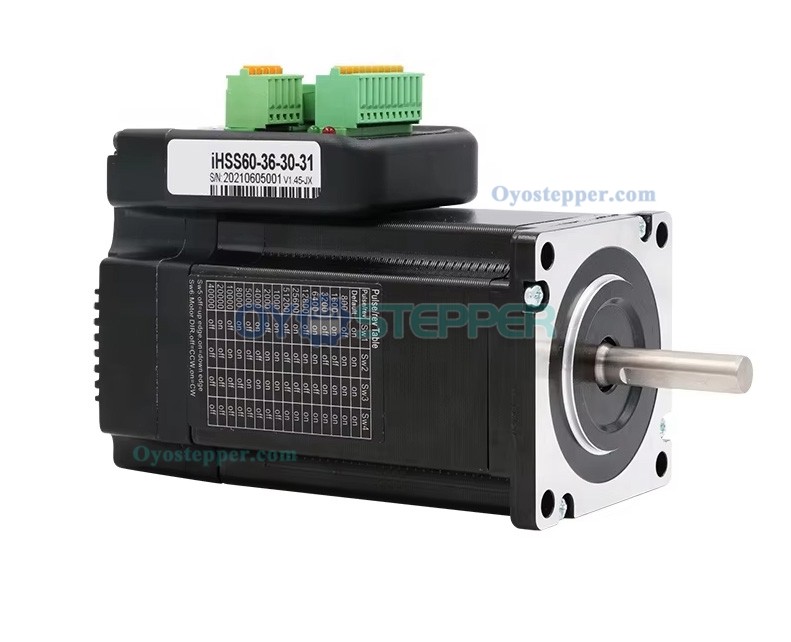

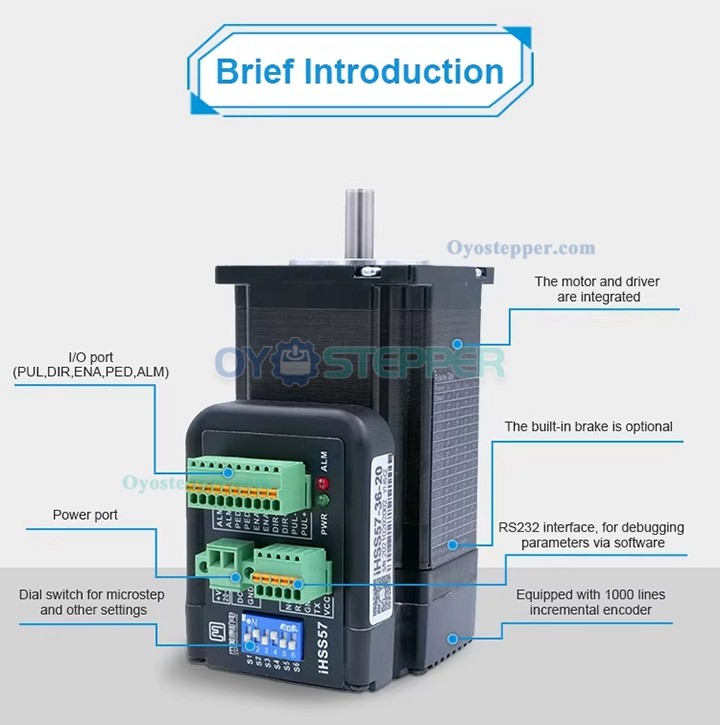

Integrated stepper motor with built-in driver in a 2-in-1 compact design. The system supports full closed-loop control using a 1000 lines encoder for position and speed regulation, and accepts dual-pulse input signals.



Features:

2-in-1 compact motor and driver

Full closed-loop control with encoder feedback

Dual-pulse signal input

Position maintenance during operation

Variable current control

Built-in acceleration/deceleration control

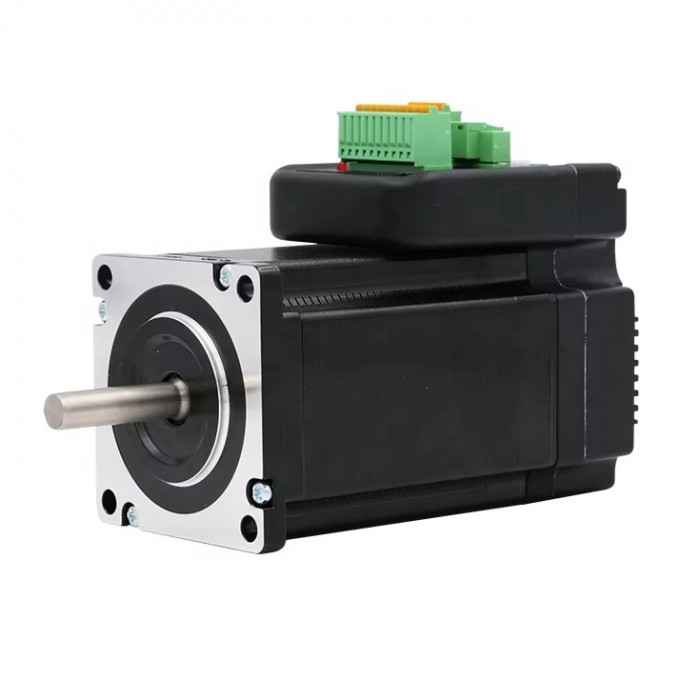

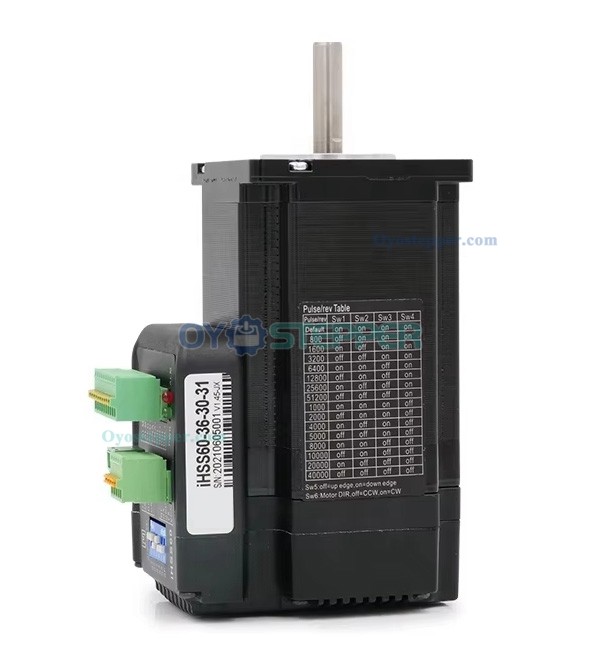

User-configurable microstepping

Over-current, over-voltage, and position error protection

Status indicator (green: running, red: protection/offline)

Note: No adjustment required under normal operating conditions.

Application:

Used for small milling machines, 3D-printers, lathes, robots, winding machines or general positioning.

Compatible with CNC controls such as Beamicon. Estlcam, Mach3, Eding and Linuxcnc.

Electrical Specifications:

Manufacturer Part Number:IHSS60-36-30-30/31/SC

Number of Phase:2

Step Angle:1.8 deg

Step Angle Accuracy:±0.09°

Holding Torque:3Nm(424.83 oz.in)

Rated Current/phase:5A

Rated Voltage:24VDC

Power Supply:20-50VDC(Typical 36V)

Encoder line: 1000 lines

Resistance/phase:0.43Ω±10%

Inductance/phase:2MH±20%

Temperature Rise Max:80℃

Dielectric Strength:500VDC

Rotor Inertia:690g.cm²

Pulse Frequency: max. 200 kHz

Radial Play:Max 0.025mm (load 450g)

Axial Play:Max 0.075mm (load 920g);

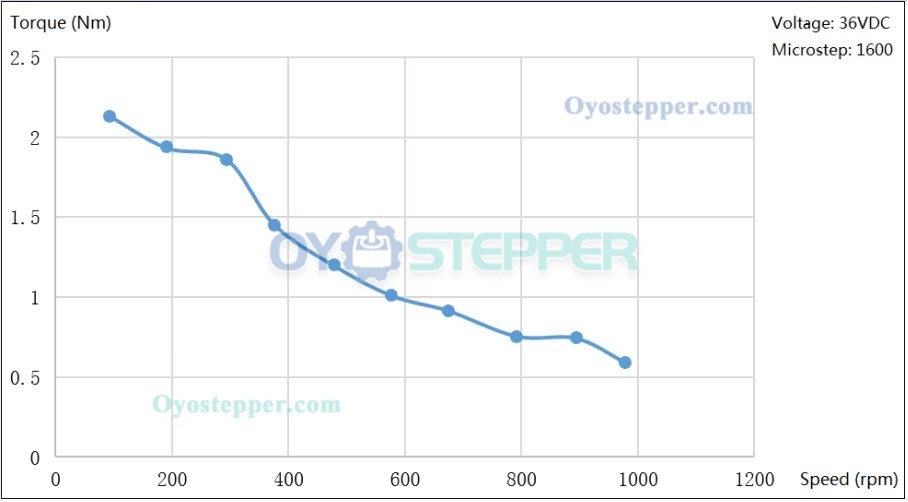

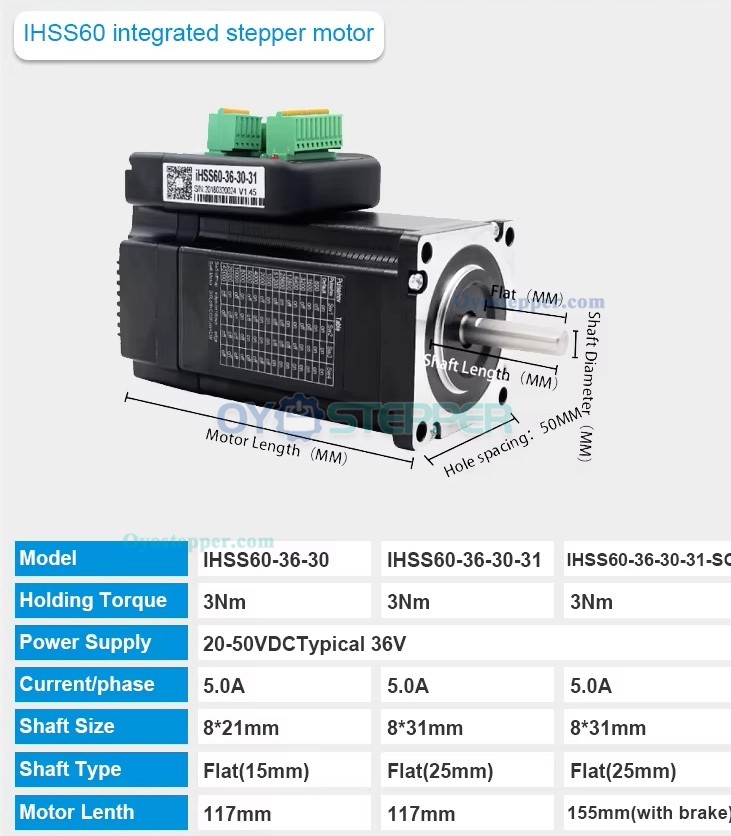

Physical Specifications:

Frame Size: 57 x 57mm

Body Length:117mm/117mm/ 155mm(with Brake)

Shaft Length:21 mm/31mm/31mm

Shaft Diameter: Φ8mm

D-cut Length:15mm/25mm

Weight: 1.15kg/1.55hk/1.75;
