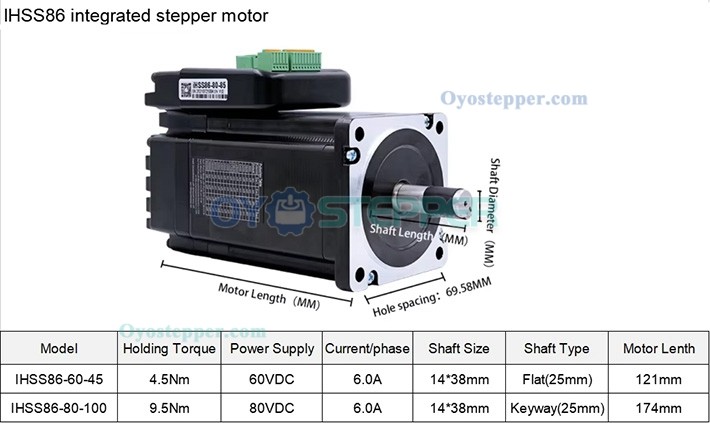

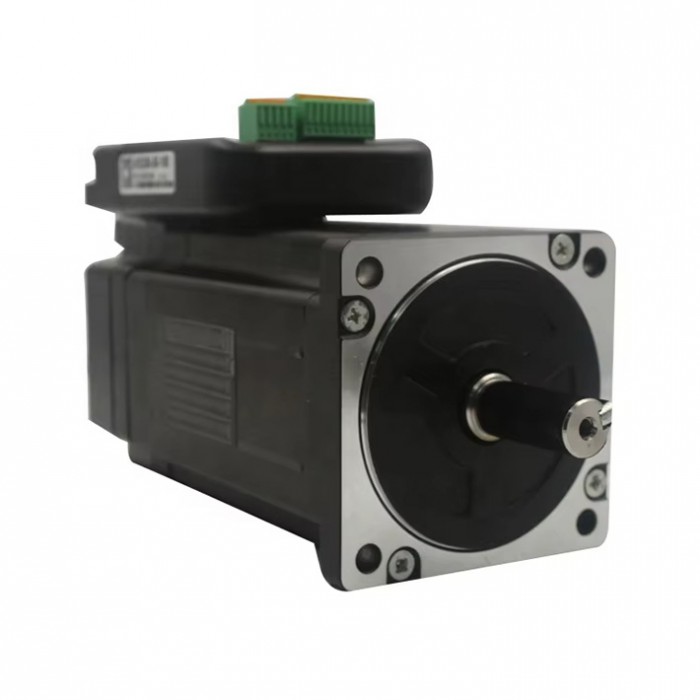

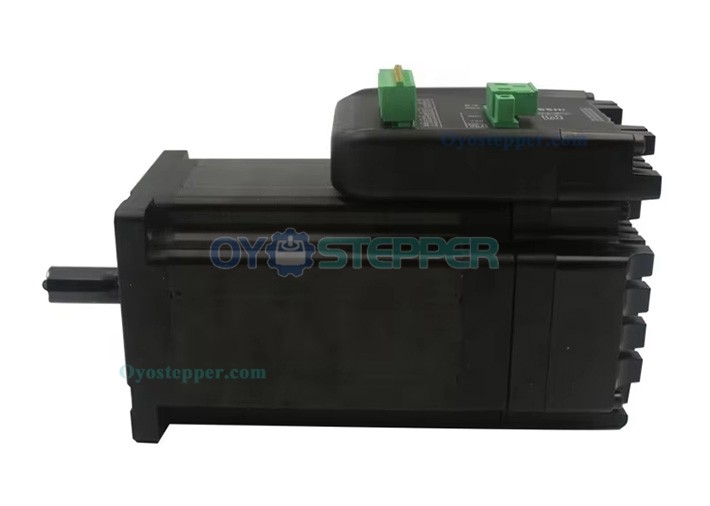

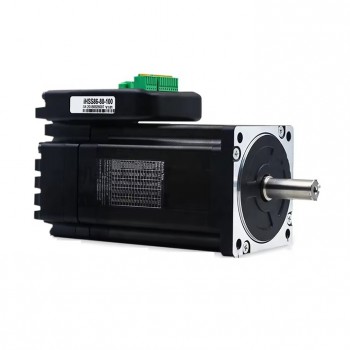

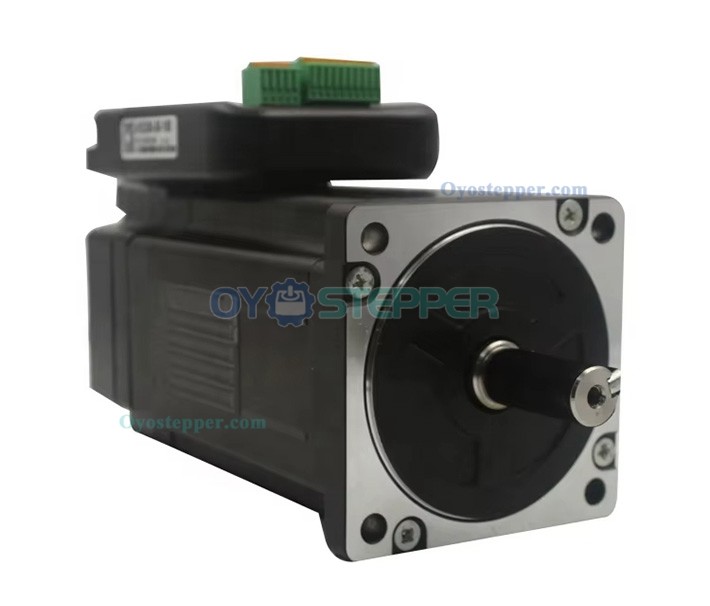

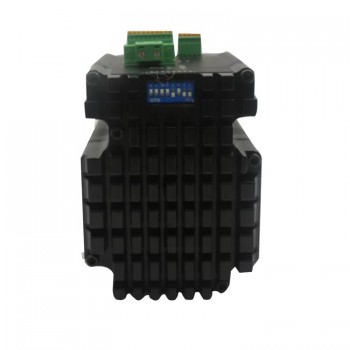

JMC NEMA34 Integrated Closed Loop Stepper Motor 1.8 Deg 9.8 Nm 6A 80V 2 Phase 86 x 86mm

JMC NEMA34 Integrated Closed Loop Stepper Motor 1.8 Deg 9.8 Nm 6A 80V 2 Phase 86 x 86mm

Features:

All-in-one integrated compact design;

Closed-loop position feedback;

Variable current control;

Built-in acceleration/deceleration control;

User-configurable microstepping;

Over-current, over-voltage, and position error protection;

Status indicators (green: running, red: protection/offline);

Note: No adjustment required in typical applications.


Application:
Used for small milling machines, 3D-printers, lathes, robots, winding machines or general positioning.
Compatible with CNC controls such as Beamicon. Estlcam, Mach3, Eding and Linuxcnc.


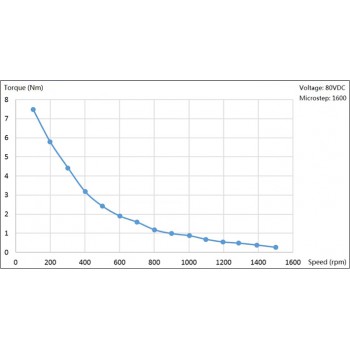

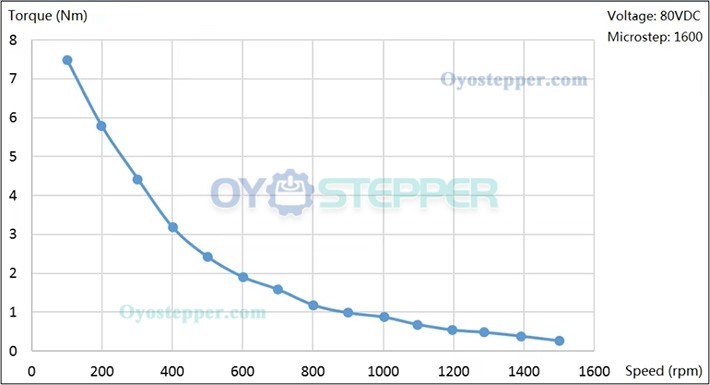

Electrical Specifications:
Manufacturer Part Number:iHSS86-80-100
Number of Phase:2
Step Angle:1.8 deg
Step Angle Accuracy:±0.09°
Holding Torque:9.8N.m(1387.79 oz.in)
Rated Current/phase:6A
Rated Voltage:80VDC
Encoder line: 1000 lines
Resistance/phase:0.43Ω±10%
Inductance/phase:2.7MH±20%
Temperature Rise Max:80℃
Dielectric Strength:500VDC
Rotor Inertia:690g.cm²
Pulse Frequency: max. 200 kHz
Radial Play:Max 0.025mm (load 450g)
Axial Play:Max 0.075mm (load 920g);


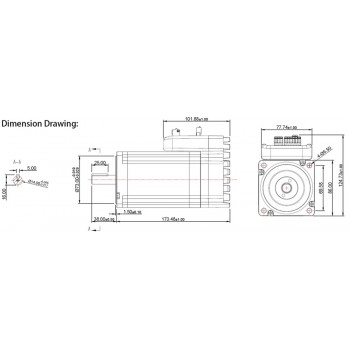

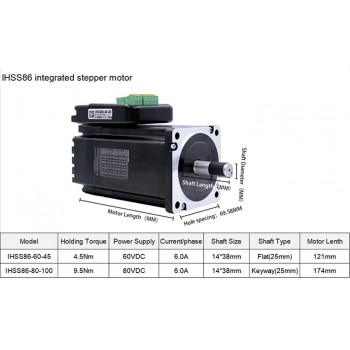

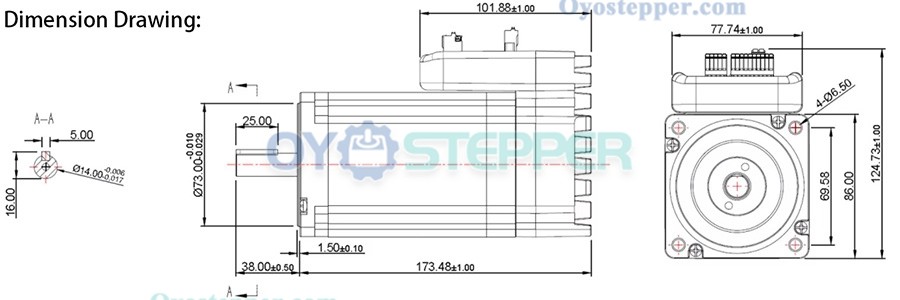

Physical Specifications:
Frame Size: 86 x 86mm
Body Length:174mm
Shaft Length:38mm
Shaft Diameter: Φ14mm
Keyway Length:25mm
Weight:5.7kg;
