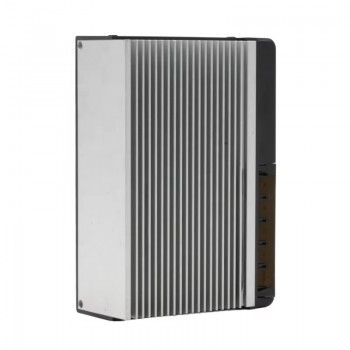

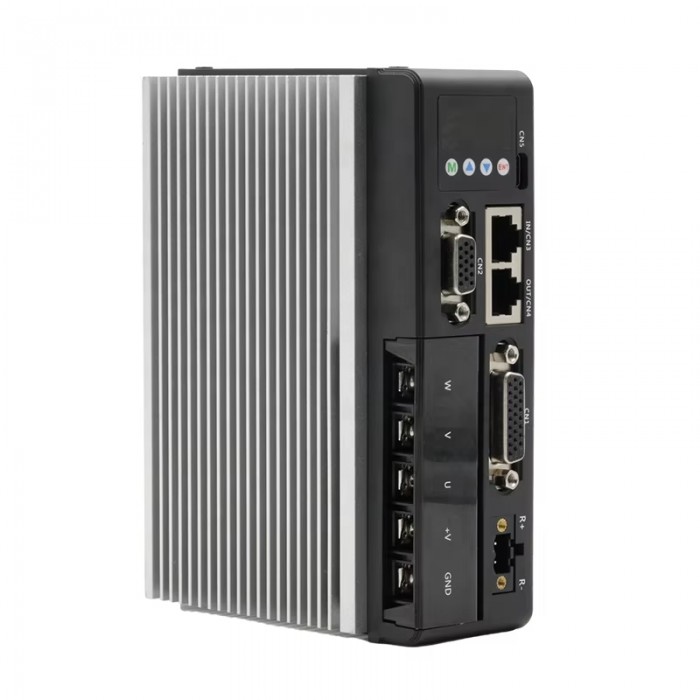

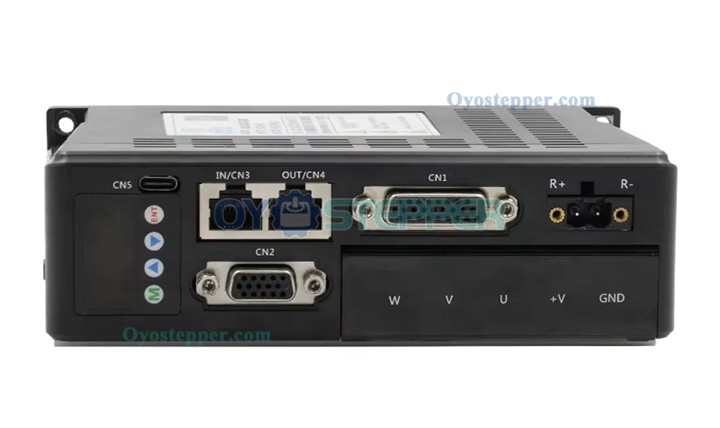

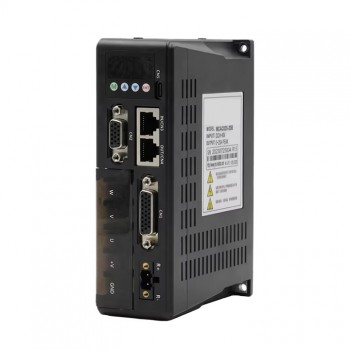

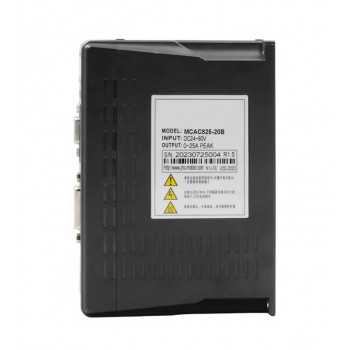

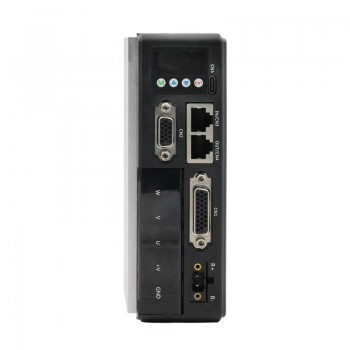

MCAC825 Low Voltage Servo Driver Controller 24-80VDC 25A for NEMA 23, 24 DC Servo Motor

MCAC825 Low Voltage Servo Driver Controller 24-80VDC 25A for NEMA 23, 24 DC Servo Motor

The low voltage servo driver adopts vector control designed and produced by DSP, low cost full closed loop all digital AC servo driver. It includes three adjustable feedback loop controls (position loop, speed loop and current loop), stable performance, suitable for driving AC servo motors with voltage of 36V~80V and power below 400W.


Features:
The motor winding protects the power supply from short circuit;
Over-current, overload, over-speed protection;
Encoder disconnection protection;
Multiple control input modes;
Optocoupler isolated servo reset input interface ERC;
Current loop bandwidth: (-3dB) 2KHz (typical value)

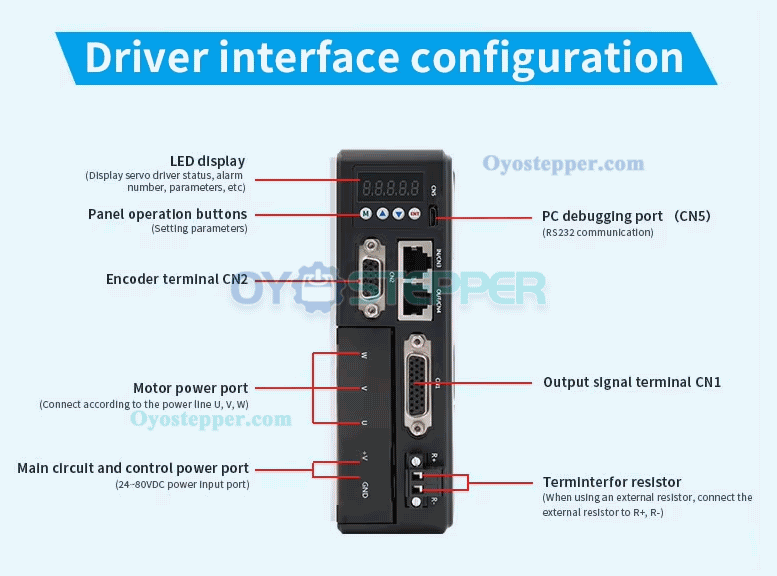

RS232C interface can be used to download parameters through PC or text display.

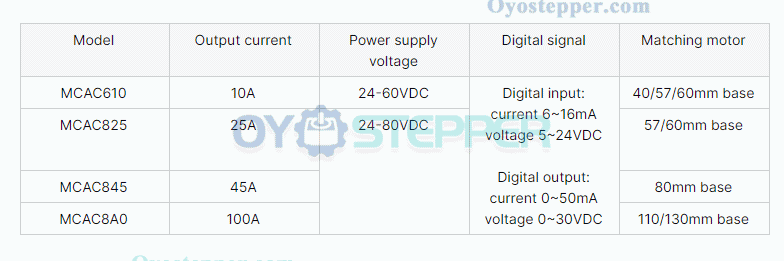

Servo Driver Specification:
Part Number: MCAC825
Phase:3
Input voltage:24~80V
Input current:25A
Output voltage:25V
Rated power:400W
Dimension:150.5*104*50mm
Matching motor:80mm base
Weight:2.5kg;
